Hydraulic Orbit Motor BMR250, 2bolts flange , 25mm straight key shaft with crossover relief valve

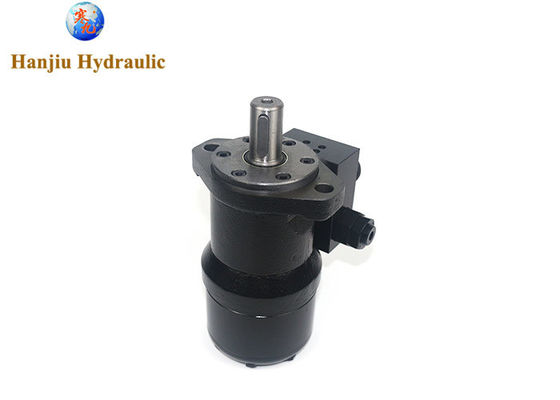

Large Image : Hydraulic Orbit Motor BMR250, 2bolts flange , 25mm straight key shaft with crossover relief valve

Product Details:

Place of Origin:	China
Brand Name:	Hanjiu
Certification:	CE
Model Number:	BMR-36-c-s-b

Payment & Shipping Terms:

Minimum Order Quantity:	50 units
Price:	Negotiable
Packaging Details:	Carton packing , with a tray or wooden box if needed .
Delivery Time:	10-15 working days
Payment Terms:	T/T,Western Union,Paypal .
Supply Ability:	100,000 units / Year

Contact Now

Detailed Product Description

Product Name:	Hydraulic Orbital Motors	Displacement:	50cc
Applications:	Agricultural Machines，winch	Warranty:	12months
Oil Temperature:	Normal-35℃-80℃	Material:	Cast Iron
Highlight:	Hydraulic Orbit Motor BMR250 , BMR250 hydraulic motor with crossover relief valve , 25mm key shaft hydraulic motor

Hydraulic Orbit Motor BMR250, 2bolts flange , 25mm straight key shaft with crossover relief valve

The goods details:
type code :BMR-250-2-A-D-B+FYRHD-5-D
displacement :50cc
flange:2-3.5 Rhomb-flange , pilot Ø82.5×2.8
shaft:Shaft Ø25MM

port threads:G1/2

Crossover relief vavle

FYRHD--Flow rate 60L/min

pressure--5mpb

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

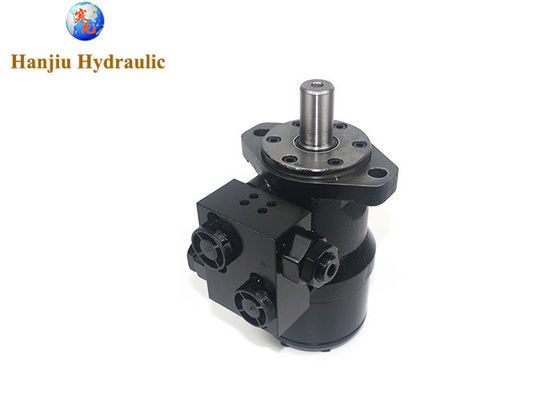

Hydraulic Orbit Motor BMR250, 2bolts flange , 25mm straight key shaft with crossover relief valve 0

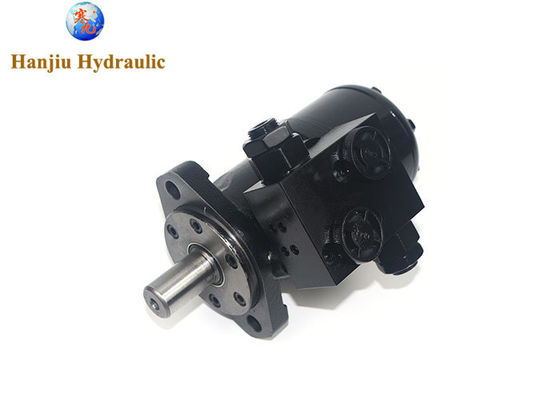

Hydraulic Orbit Motor BMR250, 2bolts flange , 25mm straight key shaft with crossover relief valve 1

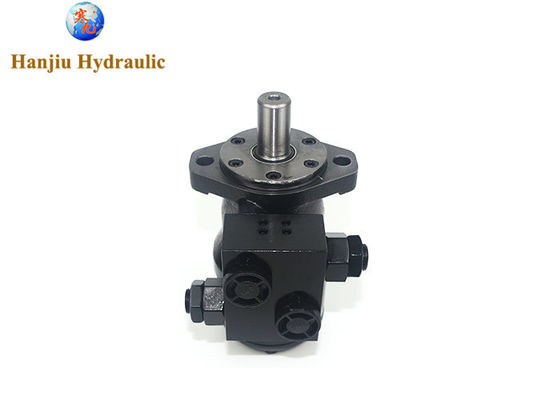

Hydraulic Orbit Motor BMR250, 2bolts flange , 25mm straight key shaft with crossover relief valve 2

1.hydraulic orbital motor structure and performance characteristics

① Adopting end-face flow distribution and axial flow distribution, simple and compact structure, high precision of flow distribution.

②The stator-rotor pair with set teeth has high mechanical efficiency and long life of high pressure operation.

③Adopting double angular joint ball bearings, it can withstand large radial and axial loads, low friction and high mechanical efficiency.

④Excellent design of flow distribution mechanism, featuring high precision of flow distribution and automatic compensation of wear.

⑤hydraulic orbital motor is allowed to be used in series and parallel, and should be connected with external oil drain port when used in series.

⑥hydraulic orbital motor can be used in series and parallel, and should be connected with drain port when used in series.

⑦ A variety of flange, output shaft, oil port and other mounting connection forms.
