2 hole oval flange Hydraulic orbital motor BMRS-80-H7-A-G, 25mm key shaft, G1/2 oil ports

Large Image : 2 hole oval flange Hydraulic orbital motor BMRS-80-H7-A-G, 25mm key shaft, G1/2 oil ports

Product Details:

Place of Origin:	China
Brand Name:	Hanjiu
Certification:	CE
Model Number:	BMRS-80-H7-A-G

Payment & Shipping Terms:

Minimum Order Quantity:	50 units
Price:	Negotiable
Packaging Details:	Carton packing , with a tray or wooden box if needed .
Delivery Time:	10-15 working days
Payment Terms:	T/T,Western Union,Paypal .
Supply Ability:	100,000 units / Year

Contact Now

Detailed Product Description

Product Name:	Hydraulic Spool Valve Motor	Displacement:	50cc
Applications:	Cutting Machines	Warranty:	1 Year
Oil Temperature:	Normal-35℃-80℃	Material:	Cast Iron
Highlight:	2 hole oval flange hydraulic motor , hydraulic orbital motor with 25mm key shaft , low speed high torque motor G1/2 oil ports

2 hole oval flange Hydraulic orbital motor BMRS-80-H7-A-G, 25mm key shaft, G1/2 oil ports

The goods details:
type code :BMRS-80-H7-A-G
displacement :80cc
flange:2-3.5 Rhomb-flange , pilot Ø82.5×2.8,146.05MM
shaft:Shaft Ø25MM

port threads:G1/2

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

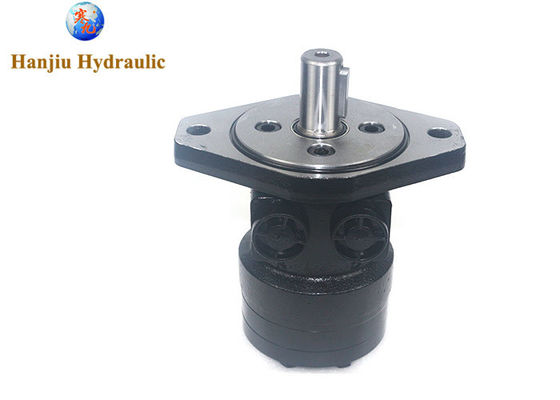

2 hole oval flange Hydraulic orbital motor BMRS-80-H7-A-G, 25mm key shaft, G1/2 oil ports 0

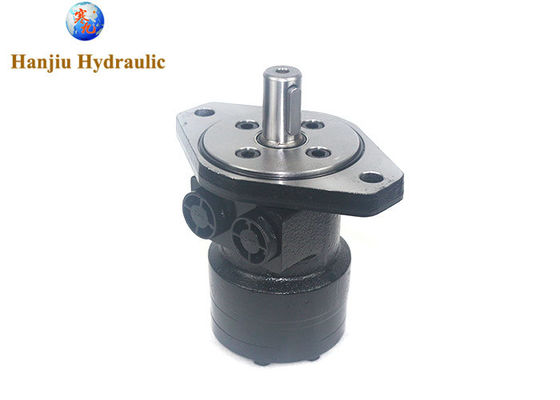

2 hole oval flange Hydraulic orbital motor BMRS-80-H7-A-G, 25mm key shaft, G1/2 oil ports 1

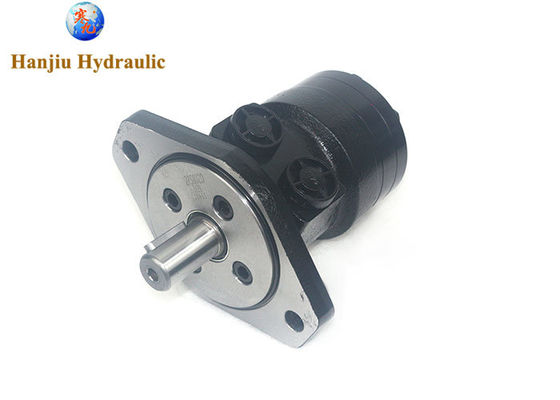

2 hole oval flange Hydraulic orbital motor BMRS-80-H7-A-G, 25mm key shaft, G1/2 oil ports 2

APPLICATION

Conveyors

Feeding mechanism of robots and manipulators

Metal working machines

Textile machines

Food industries

Agriculture machines

Grass cutting machinery etc.
