32mm Hydraulic Orbital Motor OMS315-151F0506 for Sauer BMSY-315-E4BD

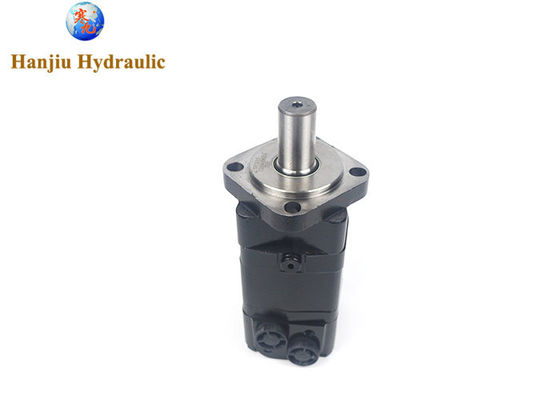

Large Image : 32mm Hydraulic Orbital Motor OMS315-151F0506 for Sauer BMSY-315-E4BD

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-200-E2-FE-S

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,D/A,T/T,Western Union,Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:	Hydraulic Motor	Type:	Low Speed High Torque
Flange:	4 Bolts Square Flange	Shaft:	Key Shaft
Materia:	Cast Iron	Warranty:	1 Year
Highlight:	32mm hydraulic orbital motor , low speed high torque hydraulic motor , Sauer BMSY-315-E4BD hydraulic motor

32mm Hydraulic Orbital Motor OMS315-151F0506 for Sauer Danfoss BMSY-315-E4BD

Product details:

type code BMSY-315-E4-B-D

Displacement:315cc

Flange:

4-Ø13.5 Rhomb-flange Ø106.4,

pilot Ø82.5×6.3

Shaft:

Shaft Ø 32 , parllel key 10×8×45

Ports:

G1/2 Manifold Mount

BMSY Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute

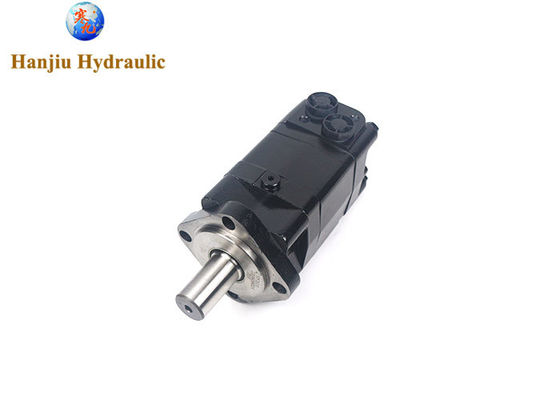

32mm Hydraulic Orbital Motor OMS315-151F0506 for Sauer BMSY-315-E4BD 0

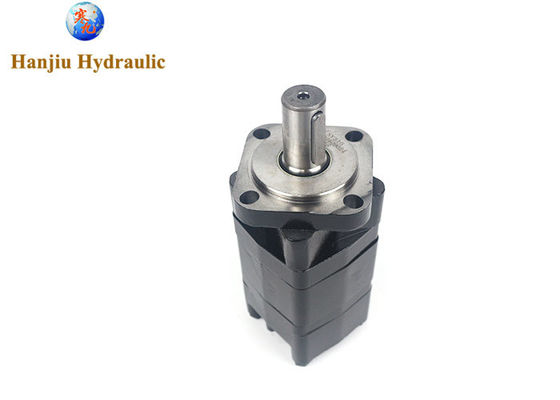

32mm Hydraulic Orbital Motor OMS315-151F0506 for Sauer BMSY-315-E4BD 1

Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems

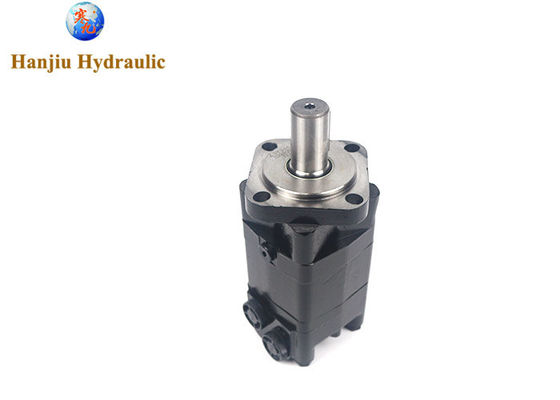

32mm Hydraulic Orbital Motor OMS315-151F0506 for Sauer BMSY-315-E4BD 2

Typical Application Scenarios

Engineering machinery: excavator slewing motor, loader drive wheel motor.

Agricultural machinery: combine harvester cutting table drive, tractor hydraulic suspension system.

Marine equipment: ship anchor, underwater robot propeller.

Metallurgical equipment: rolling mill press down device, steel mill ladle tipping mechanism.

With the core advantages of “low speed and high torque, compact structure and shock resistance”, orbital motor is a cost-effective power element in the industrial field with outstanding performance under heavy load and severe working conditions. When choosing an orbital motor, it is necessary to weigh its advantages and disadvantages according to the actual needs (such as speed, torque, environmental conditions) in order to realize the best performance.
