Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor

Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor
Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor

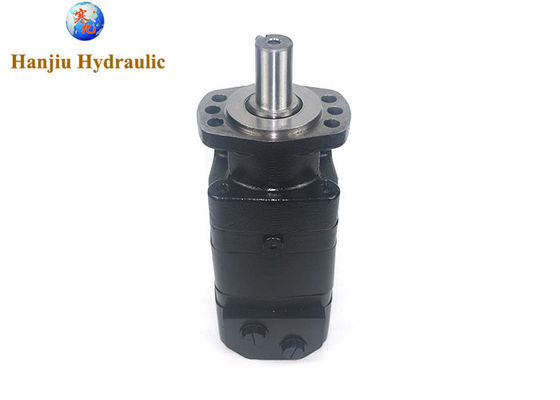

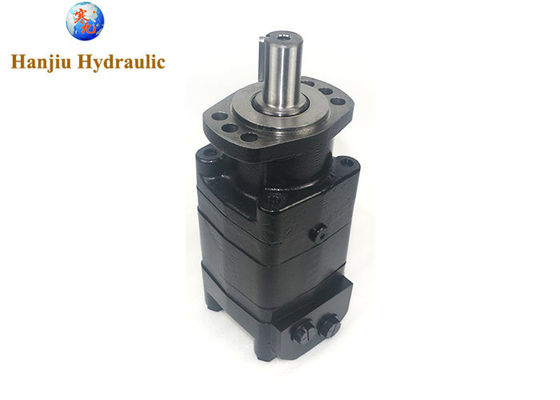

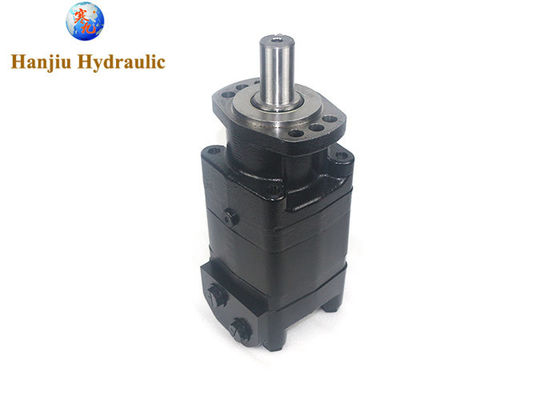

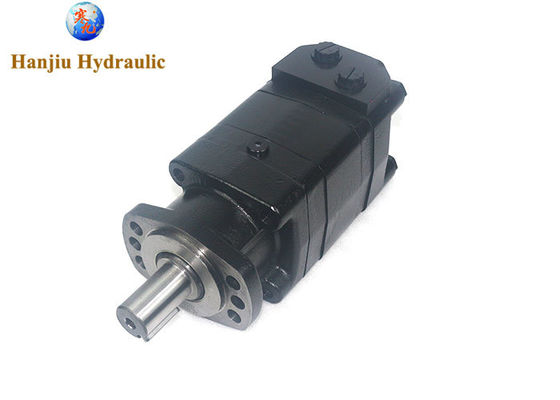

Large Image :  Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: BMTY-470
Payment & Shipping Terms:
Minimum Order Quantity: 100 Sets
Price: Start from 95 usd
Packaging Details: Carton, Box, Pallets
Delivery Time: 35 - 45 work days
Payment Terms: L/C,T/T,Western Union,Western Union
Supply Ability: 300000 sets per year
Detailed Product Description
Material: Cast Iron Model: BMTY-475-E6-G6-S5
Fastening: Magneto Mounting Displacement: 470CM3/R
Shaft: 32mm Key Shaft Port: 7/8-14 SAE Ports
Highlight:

Parker high torque hydraulic motor

,

BMTY470 similar hydraulic motor

,

6 hole flange orbit motor


Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor



the details as below


hanjiu code :BMTY-470-E6-G6-S5

Specification:

DISPLACEMENT 470CC
SERIES

PARKER TG, TGK MOTOR

PORT LOCATION Side Port, Staggered
SHAFT TYPE 32MM STRAIGHT KEY
PORT SIZE 7/8-14 SAE
MAXIMUM SPEED @ CONTINUOUS FLOW 191 rpm/287rpm
FLOW RATE 75l/min
RPM [MAX]  287rpm
DUTY Standard-Duty
GEROTER/GEROLER OPTIONS Standard
MOUNTING TYPE 6-Ø13.5 Rhomb-flange Ø106.4,
pilot Ø82.5×6.3
MOTOR TYPE Disc Valve


Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor 0

Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor 1







Parker TGK0475ES030AAAA high torque motor, similar type BMTY470, straight key shaft ,6 hole modified flange orbit motor 2



As an experienced small-to-medium-sized supplier, Hanjiu Company has fully leveraged its flexibility. We understand that different customers have varying equipment requirements and budget plans, so we have broken away from rigid pricing models. We can provide flexible pricing solutions based on the scale of customer orders, cooperation models, and personalized needs. Whether it's small-batch customized orders or long-term stable procurement partnerships, customers can feel our commitment to “affordable pricing.” This flexible pricing does not come at the expense of quality. Instead, it is achieved through optimizing production processes and improving management efficiency, ensuring profit margins while passing on benefits to customers, truly fulfilling the promise of “high cost-effectiveness.”


More importantly, Hanjou Company has always regarded quality as the lifeline of its survival and development. The company boasts a professional R&D team that leverages years of industry experience and extensive technical expertise to continuously innovate and optimize products, ensuring that every orbital motor meets stringent quality standards. From tooth profile design to sealing technology, from bearing structure to overall performance, every detail is meticulously refined and rigorously tested. Robust production capabilities provide a solid foundation for consistent quality. Advanced production equipment, standardized production processes, and a rigorous quality control system ensure that Hanjiu Company's products match the reliability, durability, and efficiency of similar products from large suppliers.


Today, Hanjiu Company's orbital motors are exported to numerous countries worldwide and widely applied in various fields such as agricultural machinery, construction machinery, and industrial automation. This not only reflects recognition of our product quality but also serves as the best testament to our business philosophy of “flexible pricing, affordable prices, and quality assurance.”


Choose Hanjiu, choose peace of mind and affordability. We will work with you to create a bright future with our professional technology, high-quality products, and attentive service.
