BMSY Hydraulic Motor with 4 Hole Flange Replaces Eaton Char-lynn 2000 Series and Danfoss OMS

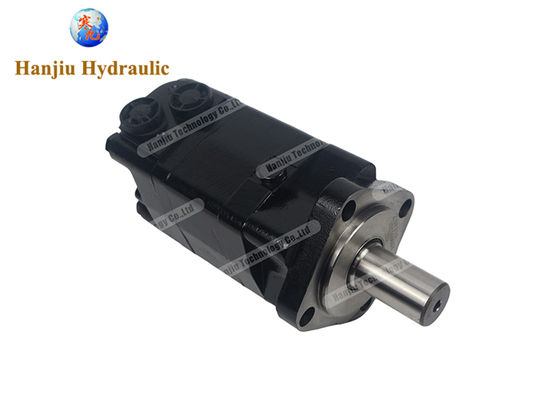

Large Image : BMSY Hydraulic Motor with 4 Hole Flange Replaces Eaton Char-lynn 2000 Series and Danfoss OMS

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-315-E4-B-D

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,D/A,T/T,Western Union,Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:

Hydraulic Motor

Type:

Low Speed High Torque

Flange:

4 Hole

Shaft:

Straight

Highlight:

Replace Eaton Char-lynn 2000 series Hydraulic Motor

4 Hole Flange Hydraulic Motor

Replace Danfoss OMS Low Speed High Torque Motor

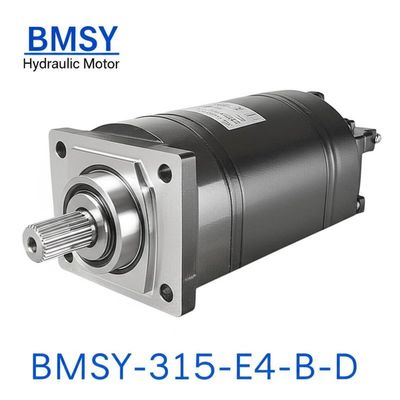

BMSY Hydraulic Motor - Replacement for Danfoss OMS, M+S MS, Eaton Char-lynn 2000 Series (Model: BMSY-315-E4-B-D)

Product Overview

The BMSY hydraulic disc motor is a versatile orbit hydraulic motor designed for agricultural, farm, construction, industrial, and heavy machinery applications. Also known as an orbital motor or Low Speed High Torque (LSHT) motor, it's ideal for rolling, lifting, and conveying applications.

Key Specifications

Type	BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 375
Geometric displacement (cm³/rev.)	80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	800 cont. 988 int.	748 cont. 900 int.	600 cont. 720 int.	470 cont. 560 int.	375 cont. 450 int.	300 cont. 360 int.	240 cont. 280 int.	200 cont. 240 int.
Max. torque (N*m)	190 cont. 240 int. 260 peak	240 cont. 300 int. 320 peak	310 cont. 370 int. 400 peak	316 cont. 430 int. 472 peak	400 cont. 466 int. 650 peak	450 cont. 540 int. 690 peak	560 cont. 658 int. 740 peak	536 cont. 645 int. 751 peak
Max. output (kW)	15.9 cont. 20.1 int.	18.8 cont. 23.5 int.	19.5 cont. 23.2 int.	15.6 cont. 21.2 int.	15.7 cont. 18.3 int.	14.1 cont. 17 int.	14.1 cont. 18.9 int.	11.8 cont. 17 int.
Max. pressure drop (MPa)	17.5 cont. 21 int. 22.5 peak	17.5 cont. 21 int. 22.5 peak	17.5 cont. 21 int. 22.5 peak	15 cont. 21 int. 22.5 peak	14 cont. 16 int. 22.5 peak	12.5 cont. 16 int. 20 peak	12 cont. 14 int. 18.5 peak	10 cont. 12 int. 14 peak
Weight (kg)	9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

Note:
- Continuous pressure: Maximum value for continuous motor operation
- Intermittent pressure: Maximum value for operation in 6 seconds per minute
- Peak pressure: Maximum value for operation in 0.6 second per minute

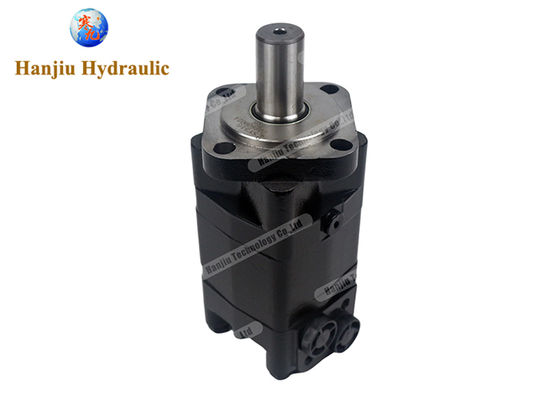

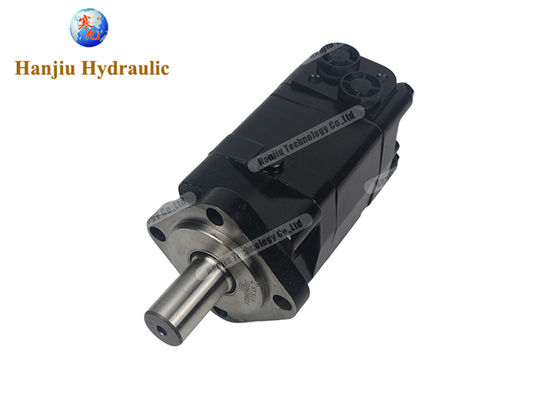

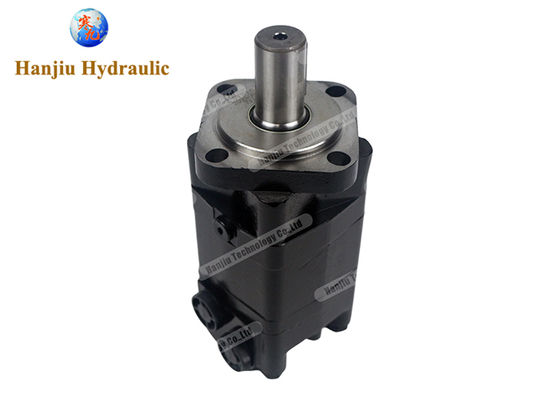

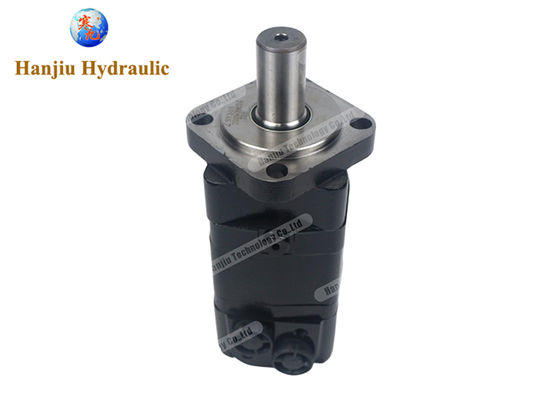

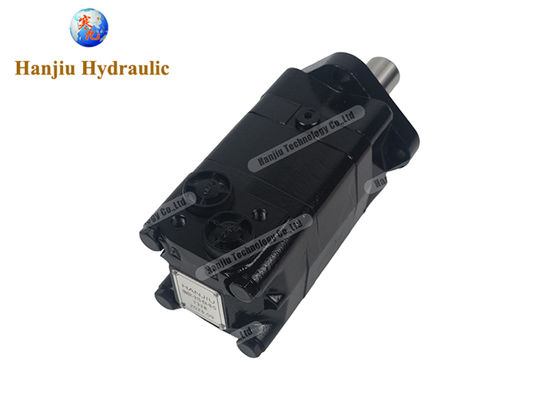

Product Images
