BMSY125 Hydraulic Orbital Motor with 125cc Displacement 1 Year Warranty and G1/2 Manifold Mount

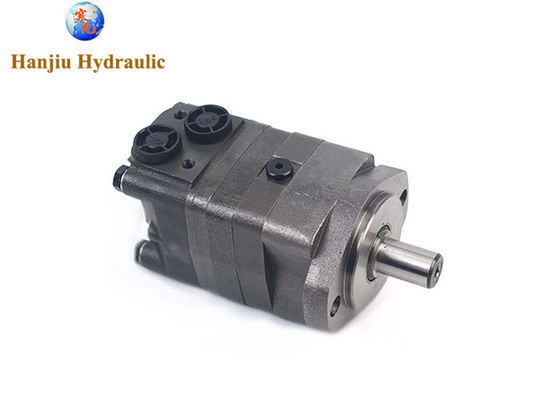

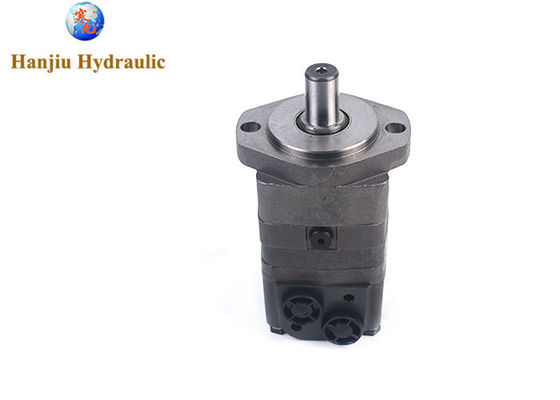

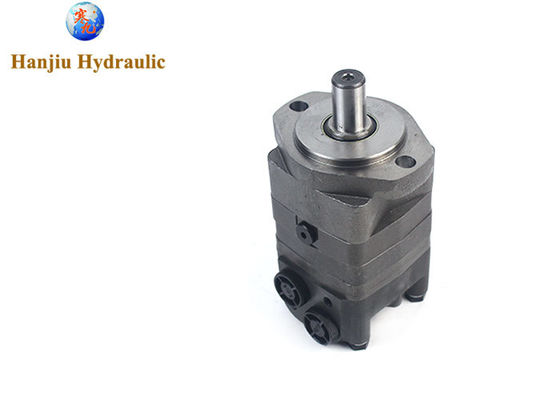

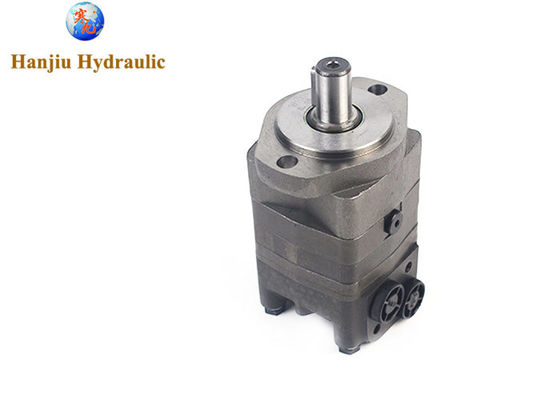

Large Image : BMSY125 Hydraulic Orbital Motor with 125cc Displacement 1 Year Warranty and G1/2 Manifold Mount

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-125-E2-B-D

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,D/A,T/T,Western Union,Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:	Hydraulic Motor	Type:	Low Speed High Torque
Flange:	2 Bolts Flange	Shaft:	Key Shaft
Materia:	Cast Iron	Warranty:	1 Year
Highlight:	125cc Displacement Hydraulic Orbital Motor , 1 Year Warranty BMSY125 Hydraulic Motor , G1/2 Manifold Mount Low Speed High Torque Hydraulic Motor

Hydraulic Orbital Motor MS125/BMSY125

2-bolt flange with straight shaft for precision macerator applications

Product Details

Type Code: BMSY-125-E2-B-D

Key Specifications

Displacement: 125cc
Flange: 2-Ø13.5 Rhomb-flange Ø106.4, pilot Ø82.5×6.3
Shaft: Ø32 with parallel key 10×8×45
Ports: G1/2 Manifold Mount, G1/4

BMSY Series Technical Specifications

Type	BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 375
Geometric displacement (cm³/rev.)	80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	800	748	600	470	375	300	240	200
Max. torque (N*m)	190	240	310	316	400	450	560	536
Max. output (kW)	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. pressure drop (MPa)	17.5	17.5	17.5	15	14	12.5	12	10
Weight (kg)	9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure: Max value for continuous operation
* Intermittent pressure: Max value for 6 seconds per minute operation
* Peak pressure: Max value for 0.6 seconds per minute operation

Hanjiu Technology produces the BMSY Series hydraulic motors, widely used in standard vertical and horizontal slurry distributors. These motors deliver enhanced performance and extended service life for macerator applications.

We guarantee high-quality products for macerator manufacturers, backed by excellent service and long warranty periods. Our technical support team is available to assist with any operational issues.

Contact Information

Contact a hydraulics specialist or HANJIU for solutions to all your hydraulic motor requirements.
