Hydraulic Orbit Motor OMM MM BMM Series motors used on baby leaf harvester machines

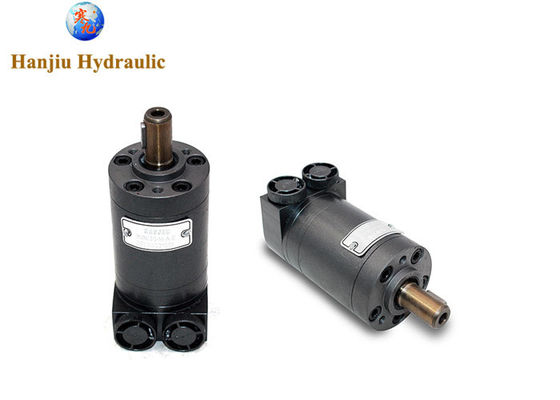

Large Image : Hydraulic Orbit Motor OMM MM BMM Series motors used on baby leaf harvester machines

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMM

Payment & Shipping Terms:

Minimum Order Quantity:	50 Pieces
Price:	Negotiable
Packaging Details:	1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Delivery Time:	10 - 15 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Payple
Supply Ability:	70000 pieces per year

Contact Now

Detailed Product Description

Type:	Gerotor Hydraulic Motor	Max Torque:	Cont.25n.m/int35n.m
Max Speed:	Cont814rpm/int.1000rpm	Material:	Cast Iron
Max Flow:	Cont.20l/min Int.25l/min	Max.output:	Cont.2.4kw/int.3.2kw
Highlight:	Hydraulic orbit motor for harvesters , Low speed high torque hydraulic motor , OMM series hydraulic motor with warranty

Hydraulic Orbit Motor OMM MM BMM Series motors used on baby leaf harvester machines

Product Details:

Brand:Hanjiu

type:OMM20/BMM20

shaft:key shaft

ports:side ports

or end ports

Main Specifications:

type		BMM8	BMM12	BMM20	BMM32	BMM40	BMM50
displacement		8.2	12.9	19.9	31.6	39.8	50.3
Max speed(rpm)	rated	1537	1256	814	513	452	358
	Cont.	1950	1550	1000	630	500	400
	int.	2450	1940	1250	800	630	500
Max Torque (N*M)	rated	8	13	19	31	37	33
	Cont.	11	16	25	40	45	46
	int.	15	23	35	57	70	88
	peak	21	33	51	64	82	100
Max speed (kw)	rated	1.3	1.7	1.7	1.7	1.7	1.2
	Cont.	1.8	2.4	2.4	2.4	2.2	1.8
	int.	2.6	3.2	3.2	3.2	3.2	3.2
Max pressure drop(MPa)	rated	9	9	9	9	8.5	6
	Cont.	10	10	10	10	9	7
	int.	14	14	14	14	14	14
	peak	20	20	20	16	16	16
Max flow(L/min)	rated	14	18	18	18	20	20
	Cont.	18	20	20	20	20	20
	int.	20	25	25	25	25	25
Weight(kg)		1.9	2	2.1	2.2	2.3	2.4

Type		Max.inlet pressure
BMM8-50	Cont.	17.5
(Mpa)	Int.	22.5

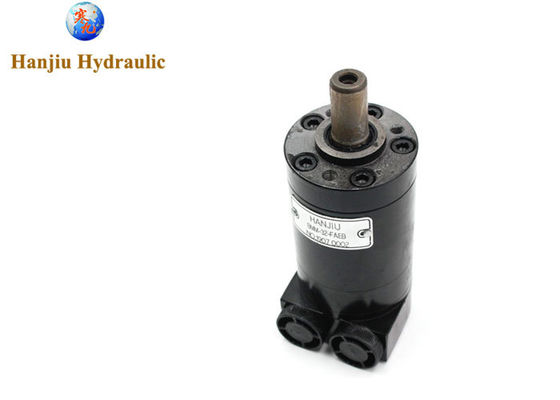

Hydraulic Orbit Motor OMM MM BMM Series motors used on baby leaf harvester machines 0

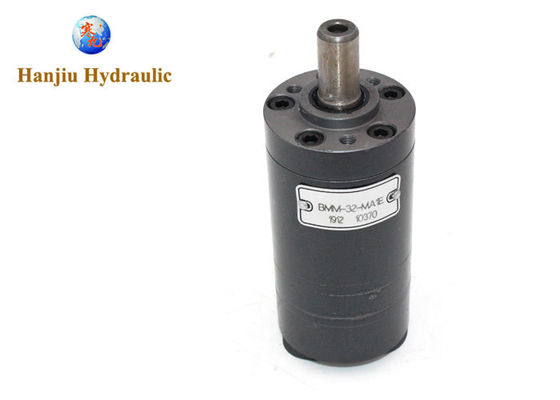

Hydraulic Orbit Motor OMM MM BMM Series motors used on baby leaf harvester machines 1

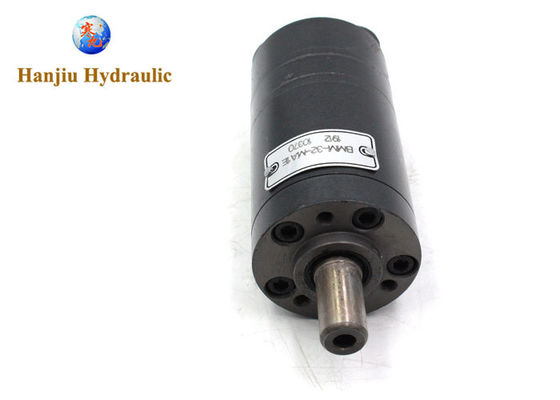

Hydraulic Orbit Motor OMM MM BMM Series motors used on baby leaf harvester machines 2

HANJIU Technology designs and produces hydraulic orbit motors for soil preparation, transplanting and harvest of vegetables.
It has a almost 20 – year experience in the hydraulic products field and it aspires to constantly renew, always taking new challenges and developing new markets.

Today it is present at more than 60 countries. The innovation technology is the company main goal: it has been always concentrating in the research of new high quality, innovative and eco-friendly products, able to assure a relevant reliability. Hanjiu technology always invests part of its resources in projects of R&D. The attention and support to the client is really relevant. The specialized and skilled workforce always guarantees a prompt and excellent after sale service.

Hydraulic Orbit Motor OMM MM BMM Series motors used on baby leaf harvester machines 3
