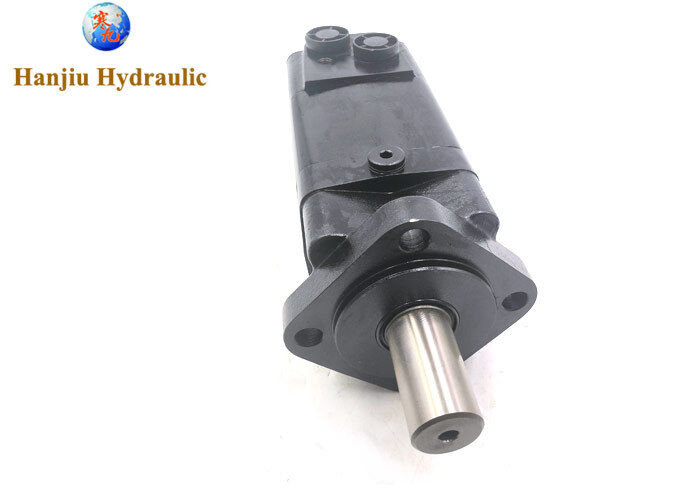

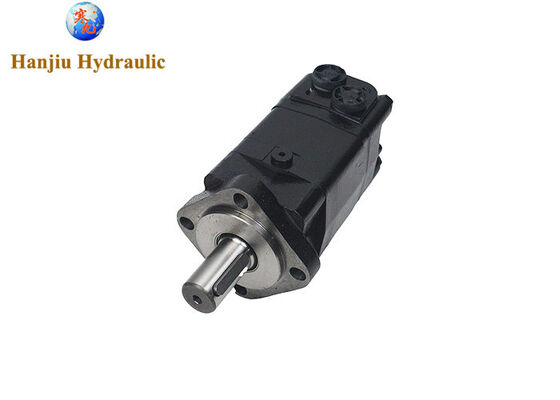

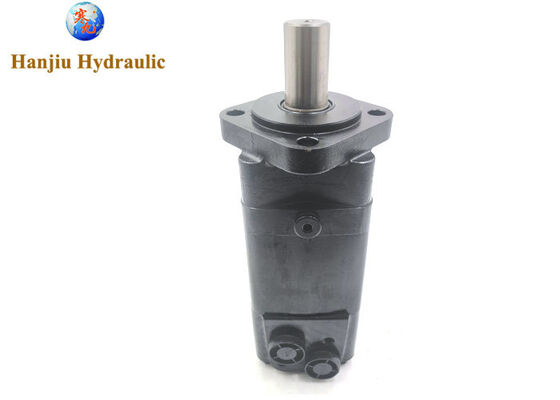

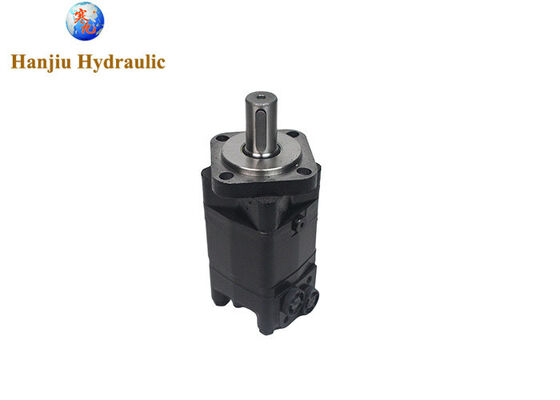

Hydraulic Orbital Motor BMSY-315-E4BD USED ON ROTARY LOBE PUMP

Large Image : Hydraulic Orbital Motor BMSY-315-E4BD USED ON ROTARY LOBE PUMP

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-315

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,D/A,T/T,Western Union,Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:	Low Speed High Torque Motor	Type:	Bmsy
Flange:	4 Bolts Square Flange	Shaft:	Key Shaft
Materia:	Cast Iron	Warranty:	1 Year
Highlight:	Hydraulic orbital motor BMSY-315-E4BD , Low speed high torque hydraulic motor , Hydraulic motor for rotary lobe pump

Hydraulic Orbital Motor BMSY-315-E4BD USED ON ROTARY LOBE PUMP

Product details:

type code BMSY-315-E4-B-D

Displacement:315cc

Flange:

4-Ø13.5 Rhomb-flange Ø106.4,

pilot Ø82.5×6.3

Shaft:

Shaft Ø 32 , parllel key 10×8×45

Ports:

G1/2 Manifold Mount

BMSY Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute

Hydraulic Orbital Motor BMSY-315-E4BD USED ON ROTARY LOBE PUMP 0

Hydraulic Orbital Motor BMSY-315-E4BD USED ON ROTARY LOBE PUMP 1

Hydraulic Orbital Motor BMSY-315-E4BD USED ON ROTARY LOBE PUMP 2

Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems

Hydraulic Orbital Motor BMSY-315-E4BD USED ON ROTARY LOBE PUMP 3

With over a decade of expertise in motor manufacturing, Hanjiu exports products worldwide. Its BMSY orbital motor delivers “high reliability and extended lifespan” through structural innovation, material upgrades, and refined manufacturing processes.

Our robust production capacity ensures stable supply, meeting both high-volume and urgent order demands. Furthermore, every BMSY orbital motor undergoes rigorous quality inspection before shipment, ensuring complete confidence in product reliability.
