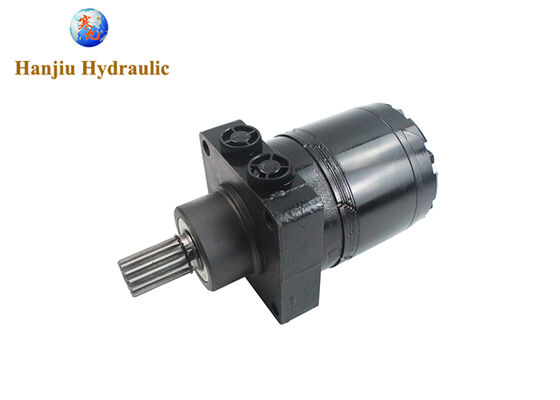

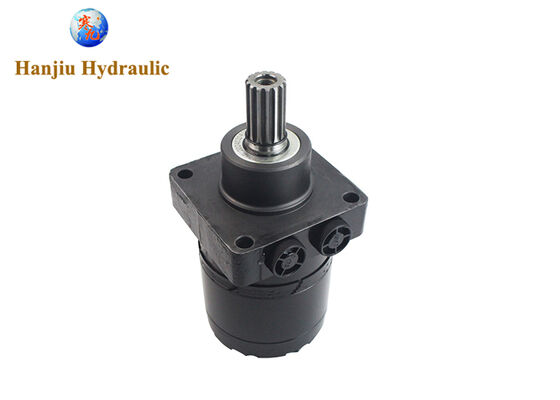

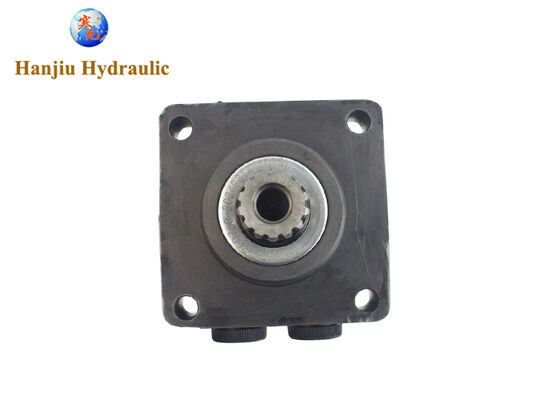

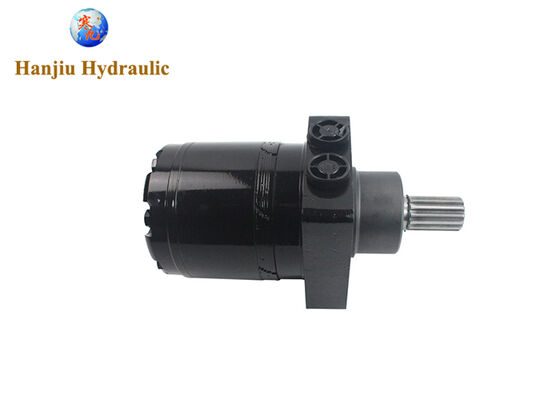

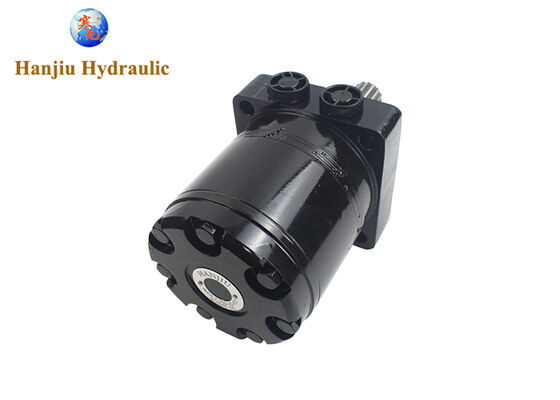

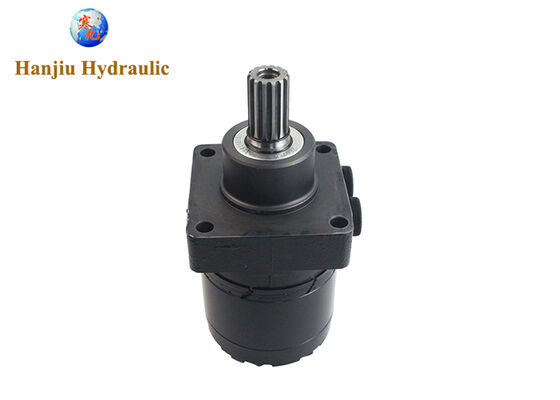

BMER-2-750-VD-FD1 LSHT Hydraulic Motor
Welcome to Hanjiu Hydraulic
We specialize in orbital hydraulic motors, providing high-quality direct replacements for Danfoss, Eaton Char-lynn, White, M+S, and Parker systems. We're committed to serving customers with superior quality, competitive pricing, and fast delivery.
Quick Overview
Model: BMER-2-750-VD-FD1
Displacement: 750 ml/r
Flange: 4-bolt wheel mounting
Rotation: Standard
Shaft: 31.75 spline shaft 14T
Technical Specifications
| Type |
BMER 125 |
BMER 160 |
BMER 200 |
BMER 230 |
BMER 250 |
BMER 300 |
BMER 350 |
BMER 375 |
BMER 475 |
BMER 540 |
BMER 750 |
| Geometric displacement (cm³/rev.) |
118 |
156 |
196 |
228 |
257 |
296 |
345 |
371 |
462 |
540 |
745 |
| Max. speed (rpm) cont. |
360 |
375 |
330 |
290 |
290 |
250 |
220 |
200 |
160 |
140 |
100 |
| Max. speed (rpm) int. |
490 |
470 |
425 |
365 |
350 |
315 |
270 |
240 |
195 |
170 |
120 |
| Max. torque (N•m) cont. |
325 |
450 |
530 |
625 |
700 |
810 |
905 |
990 |
1085 |
980 |
1050 |
| Max. torque (N•m) int. |
380 |
525 |
600 |
710 |
790 |
930 |
1035 |
1140 |
1180 |
1240 |
1180 |
| Max. torque (N•m) peak |
450 |
590 |
750 |
870 |
980 |
1120 |
1285 |
1360 |
1260 |
1380 |
1370 |
| Max. output (kW) cont. |
12.0 |
15.0 |
15.5 |
16.0 |
17.5 |
18.0 |
17.5 |
16.5 |
14.5 |
11.5 |
8.0 |
| Max. output (kW) int. |
14.0 |
17.5 |
18.0 |
19.0 |
20.0 |
21.0 |
20.0 |
19.0 |
16.5 |
15.0 |
10.0 |
| Max. pressure drop (MPa) cont. |
20.5 |
20.5 |
20.5 |
20.5 |
20.5 |
20.5 |
20.5 |
20.5 |
17.5 |
14 |
10.5 |
| Max. pressure drop (MPa) int. |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
19 |
17.5 |
12 |
| Max. pressure drop (MPa) peak |
27.6 |
27.6 |
27.6 |
27.6 |
27.6 |
27.6 |
27.6 |
27.6 |
27.6 |
20.5 |
20.5 |
14 |
| Max. flow (L/min) cont. |
45 |
60 |
70 |
70 |
75 |
80 |
80 |
75 |
75 |
75 |
75 |
| Max. flow (L/min) int. |
60 |
75 |
85 |
85 |
90 |
95 |
95 |
90 |
90 |
90 |
90 |
BMER-2 Series Hydraulic Motors
The BMER-2 Series features a Rolortorc gear set with high-speed flow distribution and high-pressure capability. These versatile motors offer multiple configuration options to meet diverse application requirements. Output shaft tapered roller bearings accommodate high axial and radial forces, ensuring smooth operation during both low-pressure startup and high-pressure operation. These lightweight, structurally advanced motors are manufactured under the ISO 9000-2000 quality system.
Product Description
The Hanjiu BMER Series mid-size motors deliver an optimal balance of price and performance, generating high torque at competitive cost. BMER motors excel in various applications, particularly in low-flow, high-pressure environments. They maintain smooth rotation throughout the speed conversion process, and the combination of shaft, bracket, and displacement options enables customization for nearly any application requirement.
BMER motors incorporate a roller gear set design with pressure balance plates. During startup, pressure causes the balance plates to flex toward the rotor, significantly improving volumetric efficiency. At operating pressure, the balance plates relax, allowing free rotor movement and enhancing mechanical efficiency. Power transmission to the output shaft is handled by heavy-duty drive links that receive full-flow lubrication during operation for extended service life.
Key Features
- In-rotor valve design efficiently distributes oil and reduces overall motor length
- Pressure-compensated balance plates improve volumetric efficiency at low flows and high pressures
- Heavy-duty drive links receive full-flow lubrication during operation for extended life
- High-pressure shaft seals eliminate the need for case drains while providing superior seal life and performance
About Hanjiu Hydraulic
HANJIU is a leading hydraulic motor manufacturer from China, offering over a thousand motor types for automated hydraulic systems across multiple industries including engineering, construction, agriculture, forestry, fishing, ports, docks, and mining. Our global partnerships include mixing machine manufacturers in Italy, sweeping machine manufacturers in the UK, construction equipment manufacturers in Germany, tractor manufacturers in Turkey, mining rig manufacturers in North America, and dealers representing Danfoss, Eaton, Parker, and White. If you're an equipment manufacturer or hydraulic distributor, contact us to discuss your requirements and discover how we can help meet your needs.
