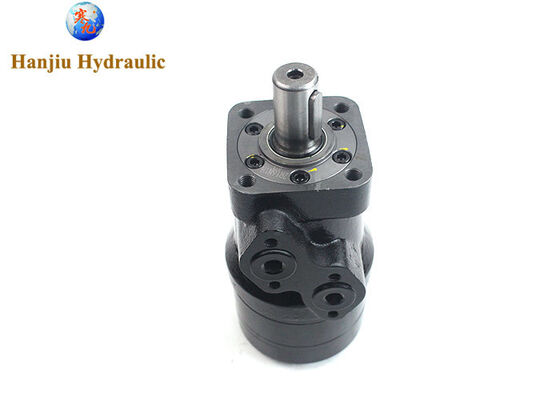

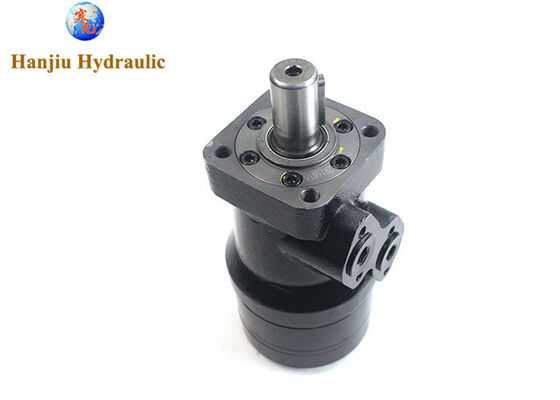

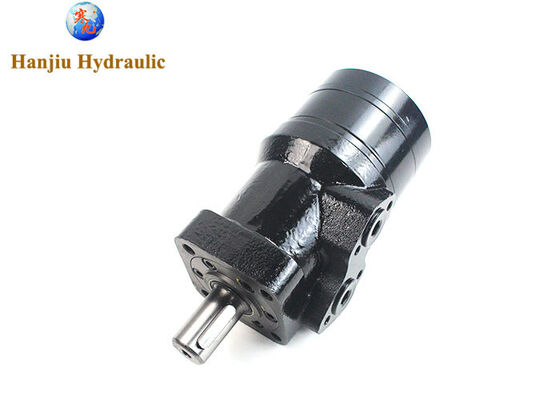

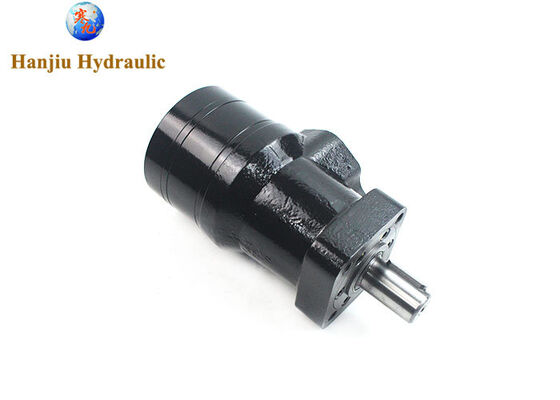

Shaft Ø25 - Standard straight shaft with keyway - 4 hole flange - Rear ports, MRQE 160 - Hydraulic motor

Large Image : Shaft Ø25 - Standard straight shaft with keyway - 4 hole flange - Rear ports, MRQE 160 - Hydraulic motor

Product Details:

Place of Origin:	China
Brand Name:	Hanjiu
Certification:	CE
Model Number:	BMR-36-c-s-b

Payment & Shipping Terms:

Minimum Order Quantity:	50 units
Price:	Negotiable
Packaging Details:	Carton packing , with a tray or wooden box if needed .
Delivery Time:	10-15 working days
Payment Terms:	T/T,Western Union,Paypal .
Supply Ability:	100,000 units / Year

Contact Now

Detailed Product Description

Product Name:	Orbit Motors	Displacement:	36cc,50cc,80cc,100cc,125cc,160cc...
Applications:	Agricultural Machines	Warranty:	1 Year
Material:	Cast Iron	Performance:	New Produce
Highlight:	25mm shaft hydraulic motor , standard straight shaft hydraulic motor , high torque hydraulic motor with flange

Shaft Ø25 - Standard straight shaft with keyway - 4 hole flange - Side ports,MRQE 160 - Hydraulic motor

Product details:

type code MRQE160--BMR-160-H5-A-S 1DL-N1-H

displacement:160cc

flange:4-M10 Square-flange,pilot Ø44.4×2.8

shaft:Shaft Ø25,parallel Key 8x7x32

ports size:rear ports G1/2 OR 7/8-14 O-ring manifold 4-5/16-18UNC, 7/16-20UNF

Main technical data

Type	BMR 36	BMR 50	BMR 80	BMR 100	BMR 125	BMR 160	BMR 200	BMR 250	BMR 315	BMR 375
Displacement (cm³/rev)	36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max Speed (rpm) cont.	1085	960	750	600	475	378	310	240	190	155
Max Torque (N*m) cont.	72	100	195	240	300	360	360	390	390	365
Weight (kg)	6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

MR HYDRAULIC MOTOR	BMR Hydraulic Motors
MR HYDRAULIC MOTOR	Shaft Ø25 - Standard straight shaft with keyway - SAE-A 2 bolt flange
MR HYDRAULIC MOTOR	Shaft Ø32 - Standard straight shaft with keyway - SAE-A 2 bolt flange
MR HYDRAULIC MOTOR	Shaft Ø25 with 6 spline - 2 bolt flange SAE-A
MR HYDRAULIC MOTOR	Shaft Ø25 - 14-DP12/24 spline - 2 hole flange SAE-A
MRQ HYDRAULIC MOTOR	Shaft Ø25 - Standard straight shaft with keyway - 4 hole flange - Side ports
MRQE HYDRAULIC MOTOR	Shaft Ø25 - Standard straight shaft with keyway - 4 bolt flange - Rear ports
MR WITH BRAKE	Shaft Ø25 - Standard straight shaft with keyway - SAE-A 2 bolt flange

APPLICATION

Conveyors
Metal working machines
Road building machines
Mining machinery
Food industries
Agricultural machines
Special vehicles etc

DISTRIBUTOR VALVE

BMR series motors have disk valve: the distributor valve has been separated from output shaft and is driven by short cardan shaft. A balance plate counterbalances the hydraulic forces around the distributor valve. It gives the motors high efficiency- even at high pressures, and good starting characteristics.
