BMR500 Hydraulic orbit motor,2 bolts flange with Shaft Ø25 - Standard straight key shaft

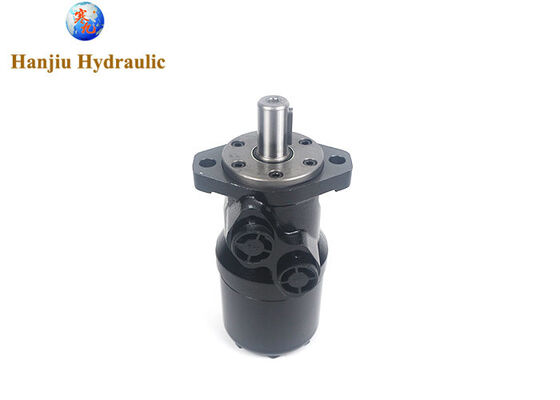

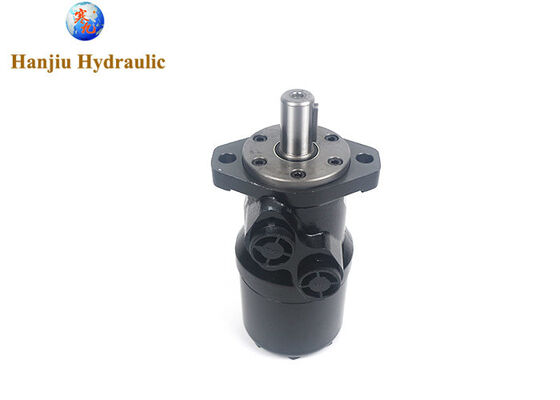

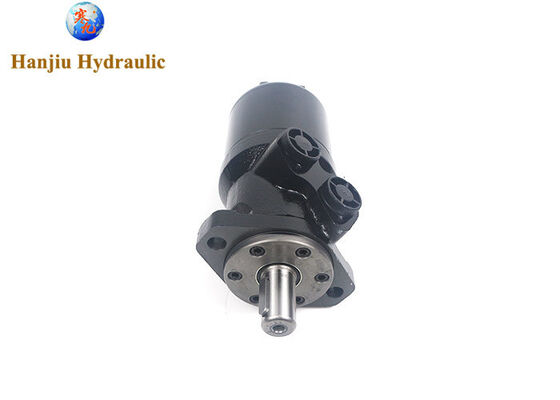

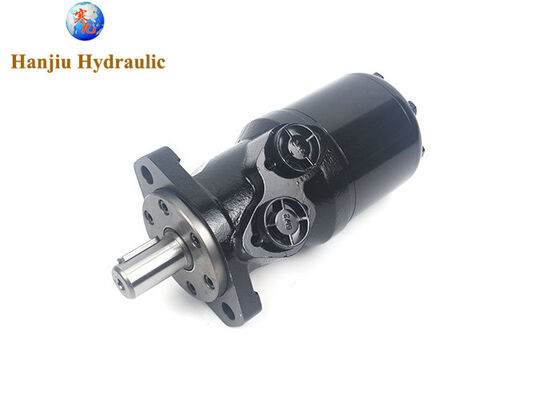

Large Image : BMR500 Hydraulic orbit motor,2 bolts flange with Shaft Ø25 - Standard straight key shaft

Product Details:

Place of Origin:	China
Brand Name:	Hanjiu
Certification:	CE
Model Number:	BMR-36-c-s-b

Payment & Shipping Terms:

Minimum Order Quantity:	50 units
Price:	Negotiable
Packaging Details:	Carton packing , with a tray or wooden box if needed .
Delivery Time:	10-15 working days
Payment Terms:	T/T,Western Union,Paypal .
Supply Ability:	100,000 units / Year

Contact Now

Detailed Product Description

Product Name:	Hydraulic Orbital Motors	Displacement:	500cc
Applications:	Agricultural Machines,winches, Conveyors	Warranty:	12months
Oil Temperature:	Normal-35℃-80℃	Material:	Cast Iron
Highlight:	BMR500 hydraulic orbit motor , 2 bolts flange hydraulic motor , low speed high torque hydraulic motor

BMR500 Hydraulic orbit motor,2 bolts flange with Shaft Ø25 - Standard straight key shaft

The goods details:
type code :BMR-500-2-A-D-B
displacement :500cc
flange:2-3.5 Rhomb-flange , pilot Ø82.5×2.8
shaft:Shaft Ø25mm

port threads:G1/2

Crossover relief vavle

matching M+S--MR hydraulic motor

White OMR Orbit motor

Charlynn --S series motors

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

BMR500 Hydraulic orbit motor,2 bolts flange with Shaft Ø25 - Standard straight key shaft 0

With over a decade of dedicated expertise in hydraulics, Hanjiu has established a comprehensive technical service system. Each motor undergoes rigorous quality control procedures—including pressure testing and cleanliness inspection—before shipment to ensure reliability. The company supplies genuine wear-prone components such as cycloidal gears and bearings, guaranteeing repair quality and equipment performance. Our global service network features a 24-hour response mechanism, providing timely remote guidance or on-site technical support.

The Hanjiu Motor Orbital BMR 500 delivers enduring, stable power support for equipment across industries through its exceptional reliability and broad adaptability. Choosing Hanjiu means selecting not just a premium product, but also a commitment to efficient, stable production assurance. Let us collaborate to achieve even more outstanding equipment performance.

Also offer below types

50	80	100	125	160	200	250	315	375	flange	shaft
151-0410	151-0411	151-0412	151-0413	151-0414	151-0415	151-0416	151-0417	151-0418	2 hole oval flange	25mm key shaft
151-0710	151-0711	151-0712	151-0713	151-0714	151-0715	151-0716	151-0717	151-0718
151-1231	151-1232	151-1233	151-1238	151-1234	151-1235	151-1236	151-1237	151-1243
151-6190	151-6191	151-6192	151-6193	151-6194	151-6195	151-6196	151-6197	151-6198
151-0400	151-0401	151-0402	151-0403	151-0404	151-0405	151-0406	151-0407	151-0408		1in key shaft
151-0700	151-0701	151-0702	151-0703	151-0704	151-0705	151-0706	151-0707	151-0708
151-7240	151-7241	151-7242	151-7243	151-7244	151-7245	151-7246	151-7247	151-7248
151-0420	151-0421	151-0422	151-0423	151-0424	151-0425	151-0426	151-0427	151-0428		spline 1in.
151-0720	151-0721	151-0722	151-0723	151-0724	151-0725	151-0726	151-0727	151-0728
151-7250	151-7251	151-7252	151-7253	151-7254	151-7255	151-7256	151-7257	151-7258
151-0248	151-0242	151-0243	151-0208	151-0244	151-0245	151-0247	151-0246	151-6294		32mm key shaft
151-0265	151-0266	151-0267	151-6295	151-0268	151-0269	151-0271	151-0270	151-6296		tapered 28.5mm
151-6010	151-6011	151-6012	151-6013	151-6014	151-6015	151-6016	151-6017	151-6018	4 hole oval flange	25mm key shaft
151-6000	151-6001	151-6002	151-6003	151-6004	151-6005	151-6006	151-6007	151-6008		32mm key shaft
151-6110	151-6111	151-6112	151-6113	151-6114	151-6115	151-6116	151-6117	151-6118		31.75 in key shaft
151-6210	151-6211	151-6212	151-6213	151-6214	151-6215	151-6216	151-6217	151-6218	square flange	25mm key shaft
151-7260	151-7261	151-7262	151-7263	151-7264	151-7265	151-7266	151-7267	151-7269	square flange	25.4 key shaft
151-6300	151-6301	151-6302	151-6303	151-6304	151-6305	151-6306	151-6307	151-6308	wheel flange	tap.35mm
151-6430	151-6431	151-6432	151-6433	151-6434	151-6435	151-6436	151-6437	151-6438	wheel flange	tap 1 1/4in
