BMSY400 Orbit Motor with 400CC Displacement 2 Bolts Mounting Flange and Spline Shaft for Eaton Char-Lynn 2000 Series

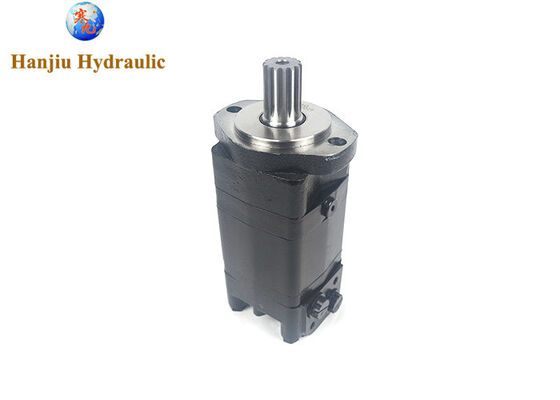

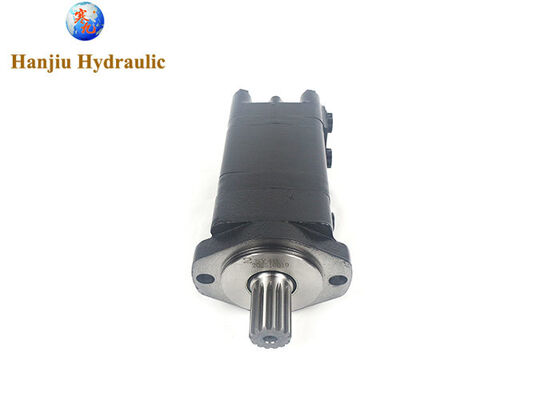

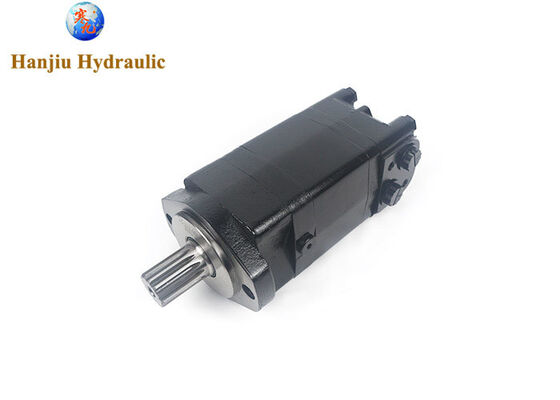

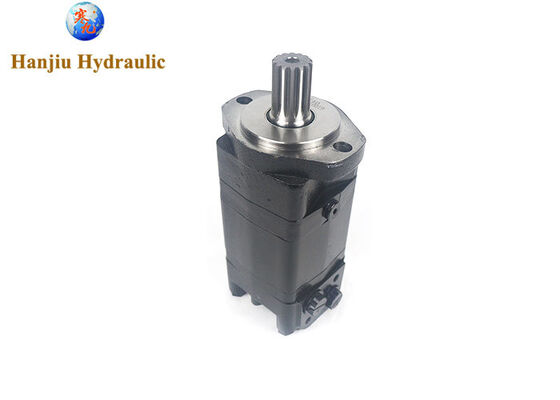

Large Image : BMSY400 Orbit Motor with 400CC Displacement 2 Bolts Mounting Flange and Spline Shaft for Eaton Char-Lynn 2000 Series

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-315

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,D/A,T/T,Western Union,Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:	Hydraulic Motor	Type:	Low Speed High Torque
Flange:	2 Bolts Mounting	Shaft:	Spline Shaft
Materia:	Cast Iron	Warranty:	12 Months
Highlight:	400CC Displacement Orbit Motor , 2 Bolts Mounting Flange Hydraulic Motor , Spline Shaft Geroler Motor

BMSY400 ORBIT MOTOR MATCHING EATON CHAR-LYNN 2000 SERIES DISC GEROLER 104-1819-006

Product Overview

Type code BMSY-400-E2-F-S-B matching Eaton Char-Lynn 104-1819-006

Technical Specifications

Displacement: 400CC

Flange: 2-Ø13.5 Rhomb-flange Ø106.4, pilot Ø82.5×6.3

Shaft: Shaft Ø 31.75, splined key 14-DP12/24

Ports: 7/8-14UNF O-ring manifold

Drain ports: 2-3/8-16, 7/16-20UNF

Special features: Flange rotated 90 degrees

BMSY Motor Introduction

The BMSY400 is a hydraulic disc motor designed for agricultural, farm, construction, industrial, and heavy machinery applications. This orbit hydraulic motor (also known as orbital motor or Low Speed High Torque motor) is ideal for rolling, lifting, conveying, and numerous other applications requiring reliable hydraulic power.

Performance Specifications

Type	BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 375
Geometric displacement (cm³/rev.)	80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm) continuous	800	748	600	470	375	300	240	200
Max. speed (rpm) intermittent	988	900	720	560	450	360	280	240
Max. torque (N*m) continuous	190	240	310	316	400	450	560	536
Max. torque (N*m) intermittent	240	300	370	430	466	540	658	645
Max. torque (N*m) peak	260	320	400	472	650	690	740	751
Max. output (kW) continuous	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW) intermittent	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa) continuous	17.5	17.5	17.5	15	14	12.5	12	10
Max. pressure drop (MPa) intermittent	21	21	21	21	16	16	14	12
Max. pressure drop (MPa) peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min) continuous	65	75	75	75	75	75	75	75
Max. flow (L/min) intermittent	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa) continuous	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa) intermittent	30	30	30	30	30	30	30	30
Weight (kg)	9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure: Maximum value of operating motor continuously
* Intermittent pressure: Maximum value of operating motor in 6 seconds per minute
* Peak pressure: Maximum value of operating motor in 0.6 second per minute

Technical Support

Contact a hydraulics specialist or HANJIU to solve all your hydraulic motor problems.

Compatibility Reference

Displacement	80	100	130	160	195	245	305	395	490
2 Bolt SAE A Flange	104-1029	104-1030	104-1031	104-1032	104-1033	104-1034	104-1035	104-1229	104-1422
2 Bolt SAE B Flange	104-1208	104-1209	104-1210	104-1211	104-1212	104-1213	104-1214	104-1215
Standard with 4 Bolt Flange	104-1376	104-1377	104-1378	104-1379	104-1380	104-1381	104-1382	104-1383

Manufacturing Excellence

Hanjiu's professional R&D team and mature production system form the foundation of reliability. Our independent Hydraulic Technology Research Institute drives deep optimization, while smart manufacturing lines ensure process stability and a fully traceable system guarantees quality control. Choosing Hanjiu BMSY orbital motors means acquiring more than just a component—it means gaining a power core that enables your equipment to earn trust through high uptime in intense competition.
