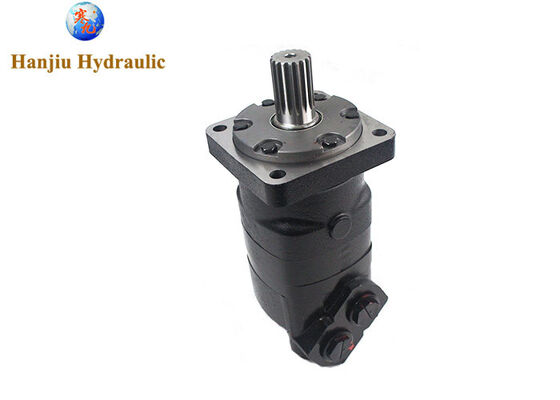

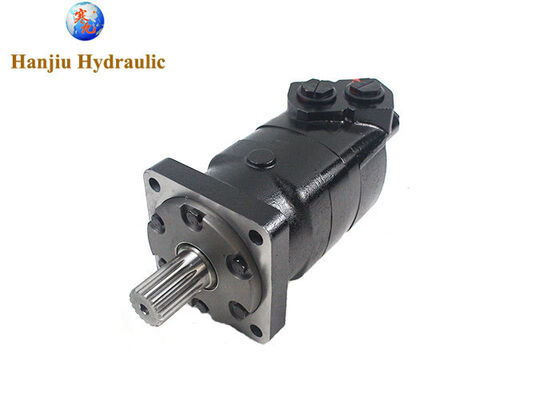

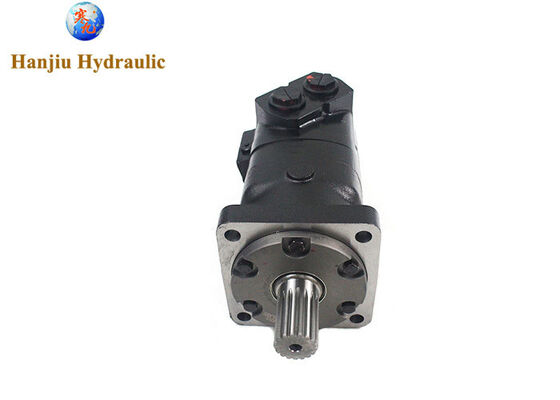

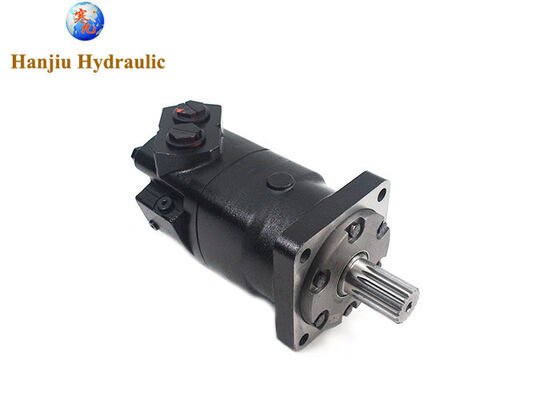

hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig

Large Image : hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	ISO
Model Number:	BMK6

Payment & Shipping Terms:

Minimum Order Quantity:	20 Pieces
Price:	Negotiable
Packaging Details:	1 pc/ inner carton, 2 pcs/ outer carton, 31x31x17cm, transport with wooden pallet, 650 pcs/ 20GP, 1300 pcs/ 40GP
Delivery Time:	10 - 15 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Payple
Supply Ability:	300000 pieces per year

Contact Now

Detailed Product Description

Type:	Hydraulic Heavy Motor	Model No.:	BMK6-400
Max.torque(N.m):	Cont.1160N.m/int.1625N.m	Max.speed(rpm):	Cont.382rpm/int.570rpm
Max Pressure Drop:	Cont.20Mpa/int.30Mpa	Material:	Cast Iron
Highlight:	hydraulic disc valve motor high torque , low speed hydraulic motor for HDD rig , BMK6-390 hydraulic motor horizontal drill

hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig

Model number: BMK6-400-CC-FE-SF5-B
Replace Char-lynn motor 6000 Series,6K-390
Displacement: 400CC
Flange: 4-Φ14.2 Wheel-flange Φ184.12,Pilot 139.7

Shaft: ShaftΦ38.1,splined tooth17-DP12/24
Port:1-5/16-12UNF
Drain port: 7/16-20 UNF
Paint: Black

Main Specification

Type		BMK6 200	BMK6 250	BMK6 315	BMK6 400	BMK6 500	BMK6 630	BMK6 800	BMK6 1000
Geometric displacement (cm3 /rev.)		195.6	246.1	311.6	391.3	490.8	623	802.4	981.6
Main speed(rpm)	cont.	765	610	480	382	304	240	186	152
	int.	865	830	690	570	455	360	280	230
Max torque N.M	cont.	565	710	920	1160	1445	1480	1580	1675
	int.	840	1080	1325	1625	1880	1890	1880	1860
Max pressure drop (Mpa)	cont.	20	20	20	20	20	17.5	14	14
	int.	30	30	30	30	27.5	22.5	15.5	14
Weight (kg)		26.3	26.8	27.3	28	28.8	29.6	30.5	32

hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig 0

hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig 1

hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig 2

hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig 3

hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig 4

hydraulic Disc Valve motor high torque low speed BMK6-390 used on horizontal directional drill (HDD) rig 5

Hanjiu Company, as a reputable orbital motor supplier, has established a strong foothold in the competitive market through its extensive production experience, professional R&D team, and robust production capabilities. Additionally, its flexible pricing strategies, customer-friendly price advantages, and consistent quality assurance have made it a trusted choice for many clients.

Choose Hanjiu, choose peace of mind and affordability. We will work with you to create a bright future with our professional technology, high-quality products, and attentive service.
