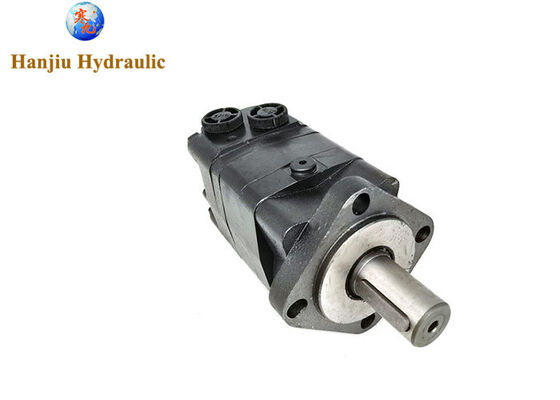

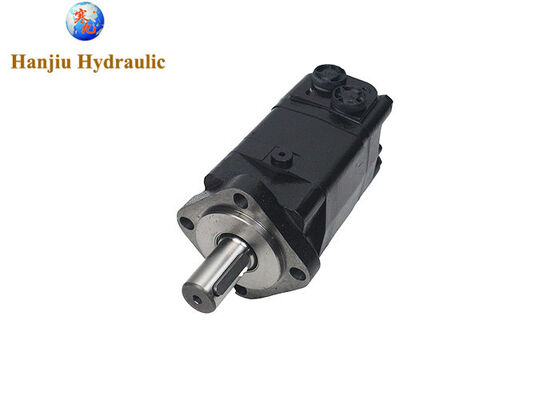

BMSY125,MS125C/4 hydraulic orbit motor ø32 straight, SAE A-4 mount, four holes flange motor used on jaw crusher

Large Image : BMSY125,MS125C/4 hydraulic orbit motor ø32 straight, SAE A-4 mount, four holes flange motor used on jaw crusher

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-125

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,D/A,T/T,Western Union,Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:	Hydraulic Motor	Type:	Low Speed High Torque
Flange:	4 Bolts Mounting	Shaft:	Straight Key Shaft
Materia:	Cast Iron	Warranty:	12 Months
Highlight:	hydraulic orbit motor ø32 straight , SAE A-4 mount hydraulic motor , jaw crusher hydraulic motor

BMSY125,MS125C/4 hydraulic orbit motor ø32 straight,SAE A-4 mount, four holes flange motor used on jaw crusher

Product Overview

Type code BMSY-125-E4-B-D-B matching MS125C/4

Technical Specifications

Displacement: 125CC

Flange: SAE A-4 mount, four holes

Shaft: Shaft Ø 32mm

Ports: BSPP PORTS

Drain ports:G1/4

Performance Specifications

Type	BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 375
Geometric displacement (cm³/rev.)	80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm) continuous	800	748	600	470	375	300	240	200
Max. speed (rpm) intermittent	988	900	720	560	450	360	280	240
Max. torque (N*m) continuous	190	240	310	316	400	450	560	536
Max. torque (N*m) intermittent	240	300	370	430	466	540	658	645
Max. torque (N*m) peak	260	320	400	472	650	690	740	751
Max. output (kW) continuous	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW) intermittent	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa) continuous	17.5	17.5	17.5	15	14	12.5	12	10
Max. pressure drop (MPa) intermittent	21	21	21	21	16	16	14	12
Max. pressure drop (MPa) peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min) continuous	65	75	75	75	75	75	75	75
Max. flow (L/min) intermittent	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa) continuous	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa) intermittent	30	30	30	30	30	30	30	30
Weight (kg)	9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure: Maximum value of operating motor continuously
* Intermittent pressure: Maximum value of operating motor in 6 seconds per minute
* Peak pressure: Maximum value of operating motor in 0.6 second per minute

Technical Support

Contact a hydraulics specialist or HANJIU to solve all your hydraulic motor problems.

HANJIU TECHNOLOGY,is a young innovational manufacturer,
During 10 years,HANJIU became a market leader in China and customers are from all over the world.
Right now,HANJIU Brand is becoming one of the worldwide hydraulic brands with the widest range and depth of hydraulic products in the market.

If you have any inquiry for hydraulic motors, and how to use on the machines, pls feel free to contact HANJIU
