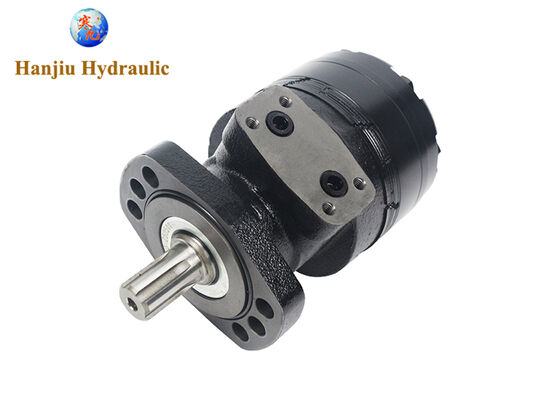

BMER-2-300-FH-SW Low Speed High Torque Hydraulic Motor
BMER-2-300-FH-SW Low Speed High Torque Hydraulic Motor featuring 6-bolt flange, 300 ml/r displacement, and spline shaft configuration.
Product Specifications
Product Type: Hydraulic Motor
Displacement: 300 ml/r
Flange: 6-bolt
Rotation: CW
Shaft: Spline
Technical Specifications
| Type |
BMER 125 |
BMER 160 |
BMER 200 |
BMER 230 |
BMER 250 |
BMER 300 |
BMER 350 |
BMER 375 |
BMER 475 |
BMER 540 |
BMER 750 |
| Geometric displacement (cm³/rev.) |
118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 |
| Max. speed (rpm) cont. |
360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| Max. speed (rpm) int. |
490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 |
| Max. torque (N•m) cont. |
325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| Max. torque (N•m) int. |
380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 |
| Max. torque (N•m) peak |
450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 |
| Max. output (kW) cont. |
12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| Max. output (kW) int. |
14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 |
| Max. pressure drop (MPa) cont. |
20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| Max. pressure drop (MPa) int. |
24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 |
| Max. pressure drop (MPa) peak |
27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 |
| Max. flow (L/min) cont. |
45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| Max. flow (L/min) int. |
60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 |
BMER-2 Series Hydraulic Motors
The BMER-2 Series features a Rolortorc gear set with high speed to distribute flow and high pressure. These motors are available with a variety of options to enable versatile operation depending on application requirements. Output shaft tapered roller bearings allow for high axial and radial forces, providing smooth operation during low pressure start-up and high pressure operation. The lightweight, structurally advanced motors are manufactured to the requirements of the ISO 9000-2000 quality system.
Product Description
The Hanjiu BMER Series mid-size motors offer a perfect balance between price and performance, producing high torque at a reasonable cost. BMER motors perform well in a wide range of applications, especially low flow, high pressure applications. BMER motors exhibit smooth rotation throughout the speed conversion process, and the combination of shaft, bracket and displacement allows them to be configured to nearly any application requirement.
BMER motors feature a roller gear set design combined with a pressure balance plate. During startup, pressure causes the balance plates to flex toward the rotor, greatly improving volumetric efficiency. When the motor reaches operating pressure, the balance plates relax, allowing the rotor to turn freely, improving mechanical efficiency. Transmitting this power to the output shaft is a heavy-duty drive link that receives full-flow lubrication during operation for extended life.
Key Features
- In-rotor valve design distributes oil efficiently and reduces overall motor length
- Pressure-compensated balance plates improve volumetric efficiency at low flows and high pressures
- Heavy-duty drive links receive full-flow lubrication during operation for extended life
- High-pressure shaft seals eliminate the need for case drains and provide superior seal life and performance
About Hanjiu Hydraulic
HANJIU is a hydraulic motor manufacturing company from China. More than a thousand types of hydraulic motors are widely used in automated hydraulic systems in engineering, construction, agriculture, forestry, fishery, ports, docks, mines, etc. For example, mixing machine manufacturer in Italy, sweeping machine manufacturer in UK, construction equipment manufacturers in Germany, tractor manufacturers in Turkey, mining rig manufacturers in North America, and dealers from Danfoss, Eaton, Parker, and White are all good partners for us.
If you are an equipment manufacturer or hydraulic distributor, please contact us to discuss your needs and learn how we can better realize your requirements.
