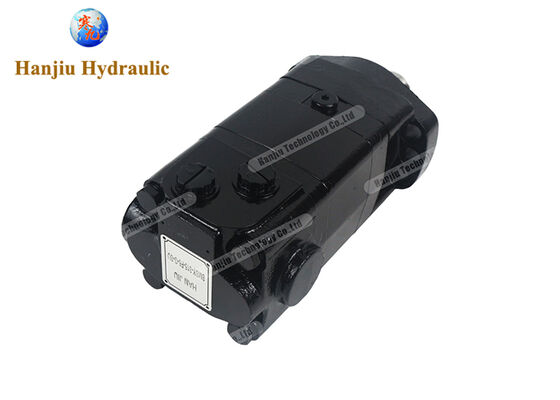

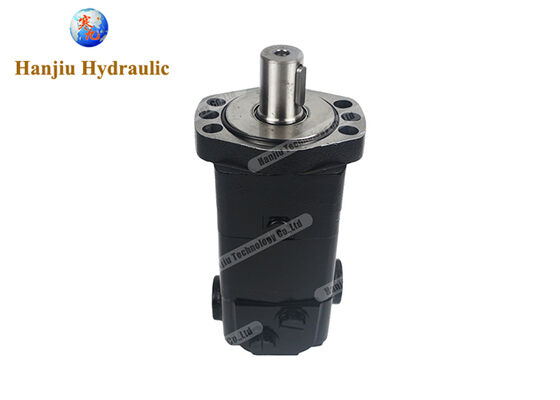

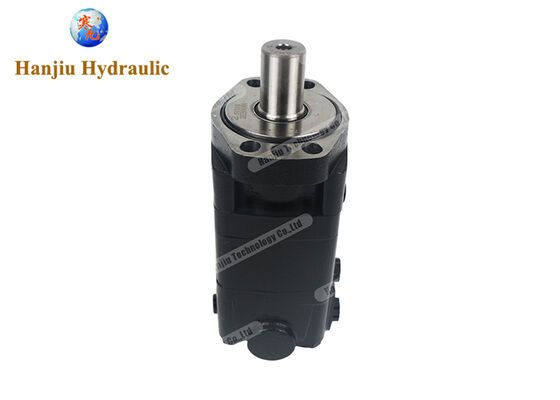

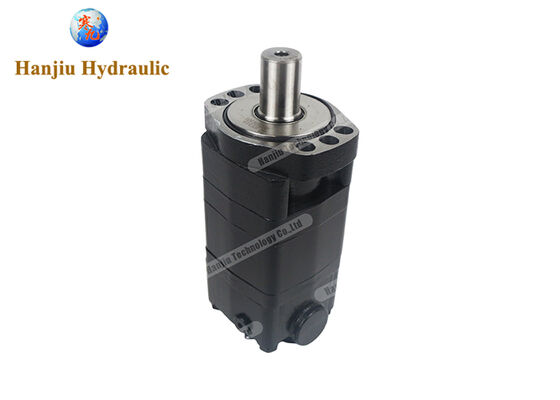

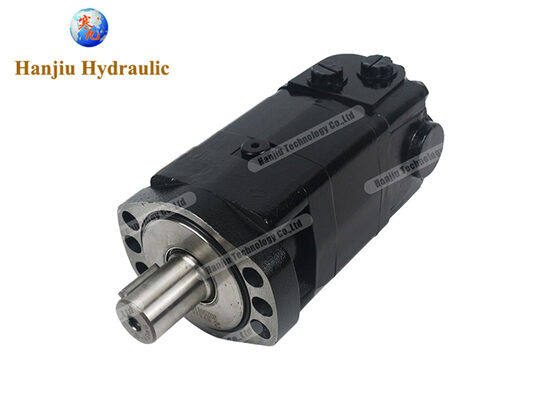

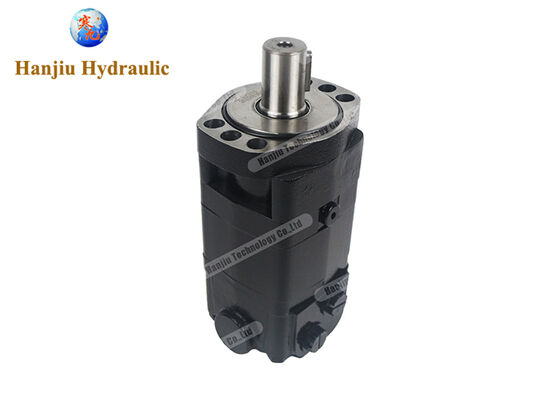

315cc low-speed, high-torque hydraulic motor, 1000 Nm torque, 6-hole mounting, SAE10 Port
Hanjiu Manufacturing · Global Compatibility · High Cost-Performance Choice!
Our high-quality rail-mounted hydraulic motors are fully compatible with Danfoss products and are widely used in various scenarios such as agricultural machinery, engineering equipment, and industrial automation equipment. Leveraging the advantages of domestic manufacturing, we help users worldwide improve efficiency and reduce costs.
Model No.: BMSY-315-F6-G-SU
| Main Specifications: |
| Type |
BMSY
BMSE
80 |
BMSY
BMSE
100 |
BMSY
BMSE
125 |
BMSY
BMSE
160 |
BMSY
BMSE
200 |
BMSY
BMSE
250 |
BMSY
BMSE
315 |
BMSY
BMSE
375 |
Geometric displacement
(cm3 /rev.) |
80.6 |
100.8 |
125 |
157.2 |
200 |
252 |
314.5 |
370 |
| Max. speed (rpm) |
cont. |
800 |
748 |
600 |
470 |
375 |
300 |
240 |
200 |
| int. |
988 |
900 |
720 |
560 |
450 |
360 |
280 |
240 |
| Max. torque (N·m) |
cont. |
190 |
240 |
310 |
316 |
400 |
450 |
560 |
536 |
| int. |
240 |
300 |
370 |
430 |
466 |
540 |
658 |
645 |
| peak |
260 |
320 |
400 |
472 |
650 |
690 |
740 |
751 |
| Max. output (kW) |
cont. |
15.9 |
18.8 |
19.5 |
15.6 |
15.7 |
14.1 |
14.1 |
11.8 |
| int. |
20.1 |
23.5 |
23.2 |
21.2 |
18.3 |
17 |
18.9 |
17 |
| Max. pressure drop (MPa) |
cont. |
17.5 |
17.5 |
17.5 |
15 |
14 |
12.5 |
12 |
10 |
| int. |
21 |
21 |
21 |
21 |
16 |
16 |
14 |
12 |
| peak |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
20 |
18.5 |
14 |
| Max. flow (L/min) |
cont. |
65 |
75 |
75 |
75 |
75 |
75 |
75 |
75 |
| int. |
80 |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
| Max. inlet pressure (MPa) |
cont. |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
| int. |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
30 |
| Weight (kg) |
9.8 |
10 |
10.3 |
10.7 |
11.1 |
11.6 |
12.3 |
12.6 |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
|
**Perfect Compatibility, One-Piece Replacement**
Fully compatible with Danfoss OMM, OMP, OMR, OMS, OMH, OMT, OMV, and other models.
Same interface, dimensions, and output shaft type; ready to use upon installation.
No changes to the original system structure; no additional modifications required.
Advantages of Hanjiu Manufacturing:
**Modern Factory**
**More Cost-Effective**
**More Flexible Delivery Time**
**Customizable Services**
Ideal Choice for Distributors and Users
For Distributors:
**Stable Supply Chain, Reduced Inventory Risk**
**High Profit Margin, Enhanced Market Competitiveness**
**OEM Brand Customization Available, Supporting Local Brand Operation**
Comprehensive Technical Documentation, Assisting Sales Promotion
For End Users:
**Quick Replacement of Original Motors, Saving Repair Time**
**Easy Maintenance, Universal Parts, Low After-Sales Costs**
**Suitable for Agricultural Machinery, Sweepers, Lawn Mowers, Conveyors, Drilling Rigs, etc.**
**Durable, Adaptable to High Loads and Harsh Environments**
**Our Warranty Service:** 100% Factory Tested: Every motor undergoes torque, leakage, and operational stability testing before leaving the factory.
**Warranty Commitment:** 12 Months or 2000 Hours Warranty; Hassle-Free Returns and Exchanges for Quality Issues.
**Technical Support:** We provide selection advice, installation guidance, and after-sales support.
**Long-Term Spare Parts Supply:** We maintain a continuous supply of key components such as seals, bearings, and housings.
**Cooperation Welcome · Win-Win Partnership** Whether you are an equipment manufacturer, service provider, or hydraulic product distributor, we look forward to establishing a long-term and stable partnership with you.
Contact Us Today: Get product catalogs, technical data, samples, or become an authorized distributor and win the global market!
More flange, shaft, oil ports, displacement can be provided as below:
