Medium Duty Motor - Torqmotor TG Series Parker TG0240 wheel drive motor with manifold ports size used on excavator grab attachment

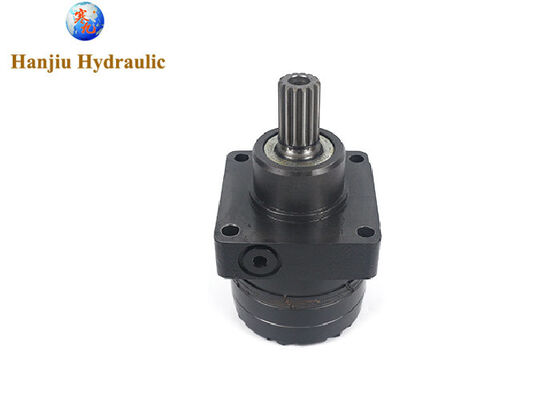

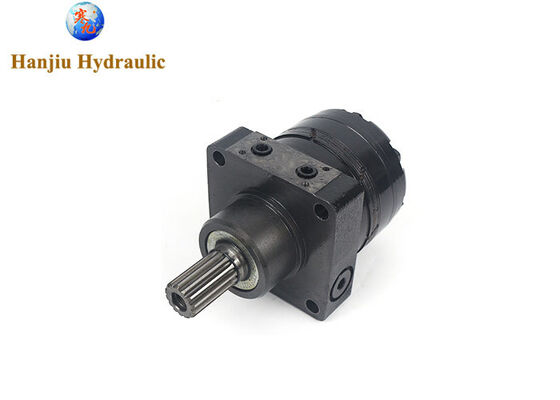

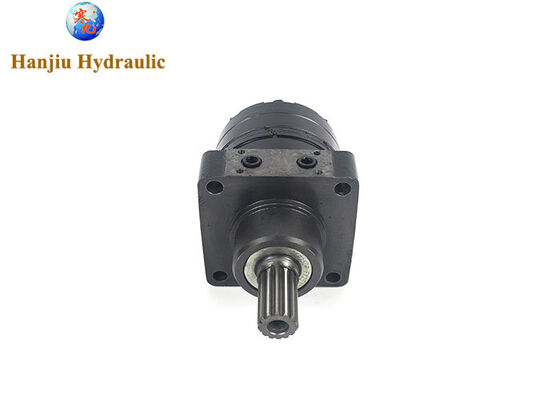

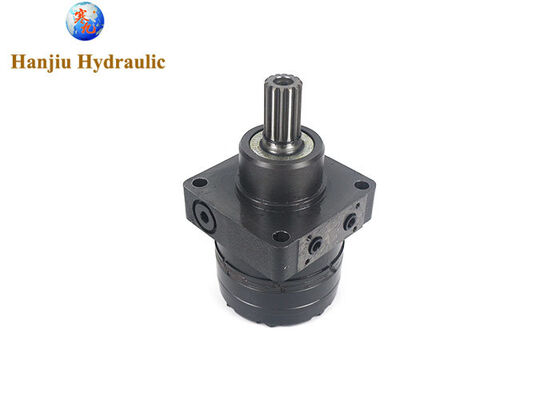

Large Image : Medium Duty Motor - Torqmotor TG Series Parker TG0240 wheel drive motor with manifold ports size used on excavator grab attachment

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE, ISO9001
Model Number:	BMER-2-250-WH-FD1-R-FY

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	160 usd/pc
Packaging Details:	box, pallet
Delivery Time:	35 - 45 work days
Payment Terms:	T/T,Western Union
Supply Ability:	10000 pieces per year

Contact Now

Detailed Product Description

Product:	Low Speed High Torque Hydraulic Motor	Model No.:	BMER-2-250
Size:	250ml/r	Flange:	4 Holes Wheel Flange
Shaft:	Spline Shaft	Rotation:	CCW
Port:	Manifold Ports	Material:	Cast Iron
Highlight:	TG0240 wheel drive hydraulic motor , excavator grab attachment motor , Parker TG Series hydraulic motor

Medium Duty Motor - Torqmotor TG Series Parker TG0240 wheel drive motor with manifold ports size

used on excavator grab attachment

Product details

Product	Low Speed High Torque Hydraulic Motor
Model No.	BMER-2-250-WH-FD1-R-FY
Size	250ml/r
Flange	wheel flange
Shaft	spline shaft
Rotation	CCW
Port	Manifold mount 4×5/8-18
Material	Cast iron

Technical Specifications

Type	BMER 125	BMER 160	BMER 200	BMER 230	BMER 250	BMER 300	BMER 350	BMER 375	BMER 475	BMER 540	BMER 750
Geometric displacement (cm3/rev.)	118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm) cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm) int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m) cont.	325	eca450	530	625	700	810	905	990	1085	980	1050
Max. torque (N•m) int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
Max. torque (N•m) peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW) cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW) int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	10.0
Max. pressure drop (MPa) cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
Max. pressure drop (MPa) int.	24	24	24	24	24	24	24	24	19	17.5	12
Max. pressure drop (MPa) peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min) cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min) int.	60	75	85	85	90	95	95	90	90	90	90

Typical Applications

Medium-duty wheel drives, grapple heads, feed rollers, and broom drives.

Hanjiu technology is specialized in producing the hydraulic orbit motors, we have the most completely range of models, from BMM --The small hydraulic motors, to BMP/BMPH,BMR/BMRS/BMH--the middle hydraulic motors, and heavy motors, like BMSY/BMT/BMV, we also developed new models, like charlynn 10000 series motors, TMT series motors

At Hanjiu, we uphold the highest international quality standards through skilled, certified professionals and streamlined facilities. Our high quality inspection process ensures precision and yield.
