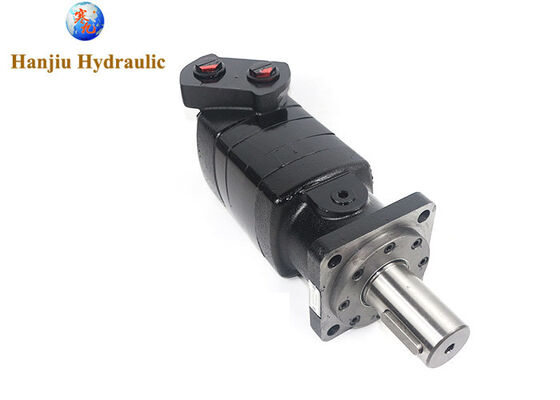

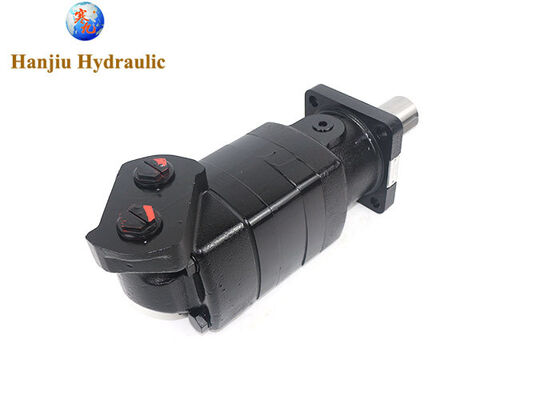

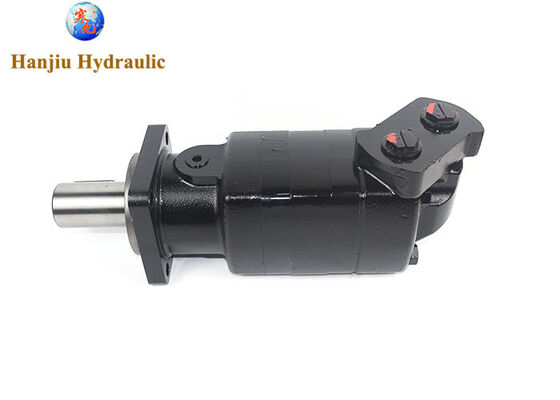

Hydraulic Geroler Disc Valve Motor-10000-Standard, 479.5 cm³/r Max Geometric Displacement 119-1029-003

Large Image : Hydraulic Geroler Disc Valve Motor-10000-Standard, 479.5 cm³/r Max Geometric Displacement 119-1029-003

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	ISO 9001:2015
Model Number:	119-1029-003

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	350
Packaging Details:	Carton, Box, Pallets
Delivery Time:	35 - 45 work days
Payment Terms:	L/C,T/T,Western Union,Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Item:	Disc Valve Motors	Model:	BMK10
Displacement:	480CC	Flange:	127.0 [5.00] PILOT DIA.
Shaft:	KEY SHAFT	Port:	1.3125-12 UN-2B SAE O-RING STAGGERED PORTS
Highlight:	Hydraulic Geroler motor with 479.5 cm³/r displacement , Low speed high torque hydraulic motor , Hydraulic disc valve motor with warranty

Hydraulic Geroler Disc Valve Motor-10000-Standard, 479.5 cm³/r Max Geometric Displacement 119-1029-003

HANJIU BMK10 series hydraulic disc valve motors equivalent of charlynn 10000 series motor

SPECIFICATIONS

Series	BMK10-480=119-1029-003
Displacement	480cm³/r
Mounting Type	STANDARD, 4 BOLT; 127.0 mm PILOT DIA
Shaft Type	53.98 [2.125] DIA. FLAT ROOT
Maximum Operating Temperature	180 °F
Output Shaft Size	2-1/4 in Straight - Straight Key
Overall Height	5.79 in
Overall Length	17.74 in
Overall Width	5.91 in
Seal Type	Standard
Drain Connection Size	1 1/4 inch Split Flange

Main Specification

Type		BMK10 350	BMK10 480	BMK10 665	BMK10 940
Geometric displacement (cm3 /rev.)		351	479	638	933
Max.speed (rpm)	cont.	500	350	250	178
Max.speed (rpm)	int.	790	560	400	280
Max.torque (N•m)	cont.	1050	1480	2080	2750
Max.torque (N•m)	int.	1400	1980	2600	3400
Max.pressure drop (MPa)	cont.	20.5	20.5	20.5	19
Max.pressure drop (MPa)	int.	27.5	27.5	26	24
Max.flow (L/min)	cont.	170	170	170	170
Max.flow (L/min)	int.	265	265	265	265

Hydraulic Geroler Disc Valve Motor-10000-Standard, 479.5 cm³/r Max Geometric Displacement 119-1029-003 0

Hydraulic Geroler Disc Valve Motor-10000-Standard, 479.5 cm³/r Max Geometric Displacement 119-1029-003 1

Eaton similar type motors are available we belows:

10000 (119-) HANJIU BMK10

119-1044-003
119-1045-003
119-1046-003
119-1047-003

119-1032-003
119-1033-003
119-1034-003
119-1035-003

119-1040-003
119-1041-003
119-1028-003
119-1029-003
119-1042-003
119-1043-003
119-1030-003
119-1031-003

Applications
Other: Boring, Industrial, Metal Forming, Port Equipment, Saw Mill
Features
Standard, wheel or bearingless configurations
Lowest pressure drop motor in the industry
Highly-efficient Geroler motor provides energy savings
Options
Four shaft configurations
Three mounting styles
Two port configurations
