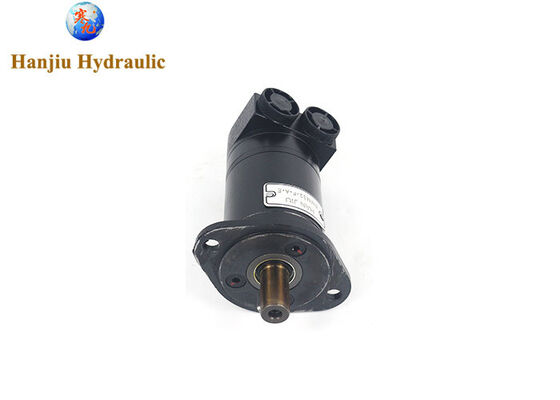

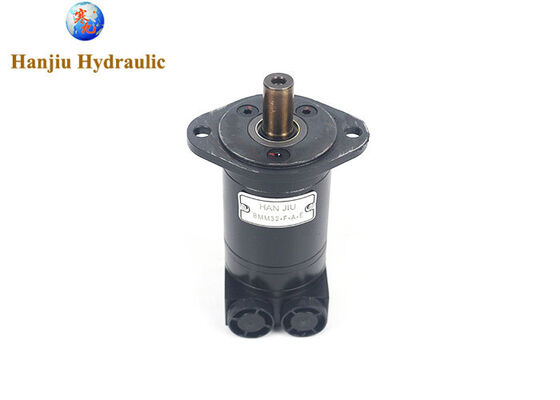

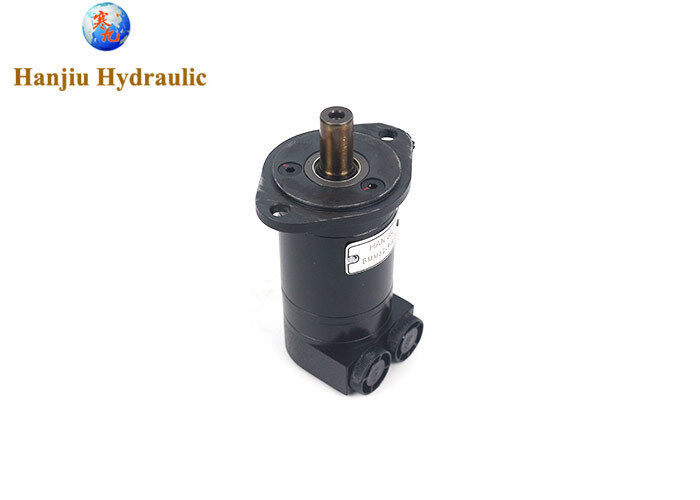

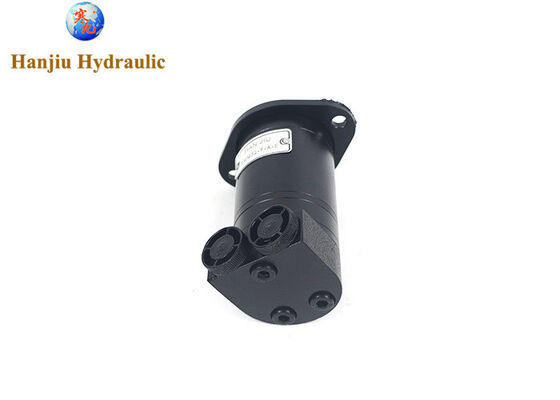

OMM/BMM 32 cc hydraulic engine 16 mm shaft with 2bolts flange

Large Image : OMM/BMM 32 cc hydraulic engine 16 mm shaft with 2bolts flange

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMM-32-F-A-E

Payment & Shipping Terms:

Minimum Order Quantity:	50 Pieces
Price:	Negotiable
Packaging Details:	1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Delivery Time:	10 - 15 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Payple
Supply Ability:	70000 pieces per year

Contact Now

Detailed Product Description

Type:	Gerotor Hydraulic Motor	Max Torque:	Cont.31n.m/int40n.m
Max Speed:	Cont.513rpm/int.630rpm	Material:	Cast Iron
Max Flow:	Cont.18l/min Int.20l/min
Highlight:	32 cc hydraulic motor with flange , low speed hydraulic motor 16mm shaft , high torque hydraulic motor with bolts

OMM/BMM 32 cc hydraulic engine 16 mm shaft with 2bolts flange

Product Details:

Brand:Hanjiu

type:OMM32/BMM32

shaft:16mm key shaft

ports:BSPP side ports

flange:2-Ø9 Rhomb-flange, pilot Ø63×2

Main Specifications:

type		BMM8	BMM12	BMM20	BMM32	BMM40	BMM50
displacement		8.2	12.9	19.9	31.6	39.8	50.3
Max speed(rpm)	rated	1537	1256	814	513	452	358
	Cont.	1950	1550	1000	630	500	400
	int.	2450	1940	1250	800	630	500
Max Torque (N*M)	rated	8	13	19	31	37	33
	Cont.	11	16	25	40	45	46
	int.	15	23	35	57	70	88
	peak	21	33	51	64	82	100
Max speed (kw)	rated	1.3	1.7	1.7	1.7	1.7	1.2
	Cont.	1.8	2.4	2.4	2.4	2.2	1.8
	int.	2.6	3.2	3.2	3.2	3.2	3.2
Max pressure drop(MPa)	rated	9	9	9	9	8.5	6
	Cont.	10	10	10	10	9	7
	int.	14	14	14	14	14	14
	peak	20	20	20	16	16	16
Max flow(L/min)	rated	14	18	18	18	20	20
	Cont.	18	20	20	20	20	20
	int.	20	25	25	25	25	25
Weight(kg)		1.9	2	2.1	2.2	2.3	2.4

Type		Max.inlet pressure
BMM8-50	Cont.	17.5
(Mpa)	Int.	22.5

OMM/BMM 32 cc hydraulic engine 16 mm shaft with 2bolts flange 0

OMM/BMM 32 cc hydraulic engine 16 mm shaft with 2bolts flange 1

OMM/BMM 32 cc hydraulic engine 16 mm shaft with 2bolts flange 2

Made by HANJIU a world leader within production of low speed orbital motors with high torque. Appealing to a large number of applications and a part of the program is characterised by motors that can be adapted to the following applications:
Construction
Agricultural
Material handling & Lifting
Forestry
Lawn & turf equipment
Special purpose
Machine tools & stationary
Marine equipment

We can offer more than 3,000 different orbital motors, categorised in types, variants and sizes (including different shaft versions, motor sizes and torques).

Characteristic features:
Smooth running over the entire speed range
Constant operating torque over a wide speed range
Long life under extreme operating conditions
High return pressure without the use of drain line (High pressure shaft seal)
High efficiency
High starting torque
Robust and compact design
High radial and axial bearing capacity
For applications in both open and closed loop hydraulic systems
Suitable for a wide variety of hydraulics fluids

OMM/BMM 32 cc hydraulic engine 16 mm shaft with 2bolts flange 3
