MR 400 CB hydraulic motor 32 mm shaft with keyway compatible BMR-400-4-B-D

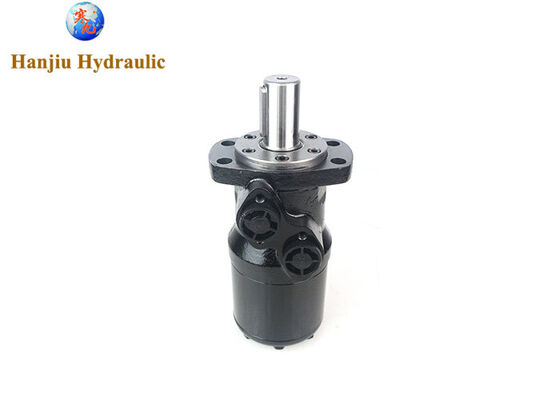

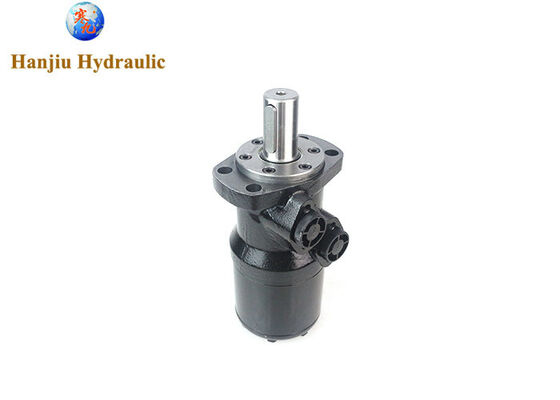

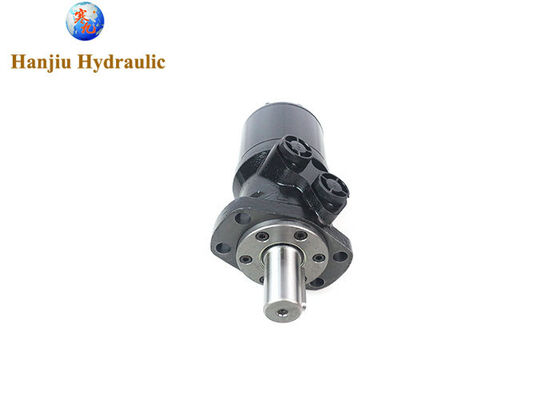

Large Image : MR 400 CB hydraulic motor 32 mm shaft with keyway compatible BMR-400-4-B-D

Product Details:

Place of Origin:	China
Brand Name:	Hanjiu
Certification:	CE
Model Number:	BMR-400-4-b-D

Payment & Shipping Terms:

Minimum Order Quantity:	50 units
Price:	Negotiable
Packaging Details:	Carton packing , with a tray or wooden box if needed .
Delivery Time:	10-15 working days
Payment Terms:	T/T,Western Union,Paypal .
Supply Ability:	100,000 units / Year

Contact Now

Detailed Product Description

Product Name:	Orbit Motors	Displacement:	400CC
Applications:	Harvesters, Winch, Conveyors	Warranty:	1 Year
Material:	Cast Iron	Performance:	High Quality
Highlight:	MR 400 CB hydraulic motor with keyway , 32 mm shaft hydraulic motor , BMR-400-4-B-D compatible hydraulic motor

MR 400 CB hydraulic motor 32 mm shaft with keyway compatible BMR-400-4-B-D

Type Code: BMR-400-4-B-D, matching MRF400CB

Displacement Options: 400CC

Flange: Oval mount, four holes

Shaft: ø32 straight, Parallel key A10x8x45 DIN6885

Port Threads: BSPP PORTS

Technical Data (25mm and 1" Splined/28.56mm Tapered Shaft)

Type	BMR 36	BMR 50	BMR 80	BMR 100	BMR 125	BMR 160	BMR 200	BMR 250	BMR 315	BMR 375
Displacement (cm³/rev)	36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max Speed (rpm) cont.	1085	960	750	600	475	378	310	240	190	155
Max Torque (N*m) cont.	72	100	195	240	300	360	360	390	390	365
Weight (kg)	6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical Data (31.75mm and 32mm Shaft)

Type	BMR 36	BMR 50	BMR 80	BMR 100	BMR 125	BMR 160	BMR 200	BMR 250	BMR 315	BMR 375
Displacement (cm³/rev)	36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max Speed (rpm) cont.	1250	960	750	600	475	378	310	240	190	155
Max Torque (N*m) cont.	72	100	195	240	300	380	450	540	550	580
Weight (kg)	6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5
