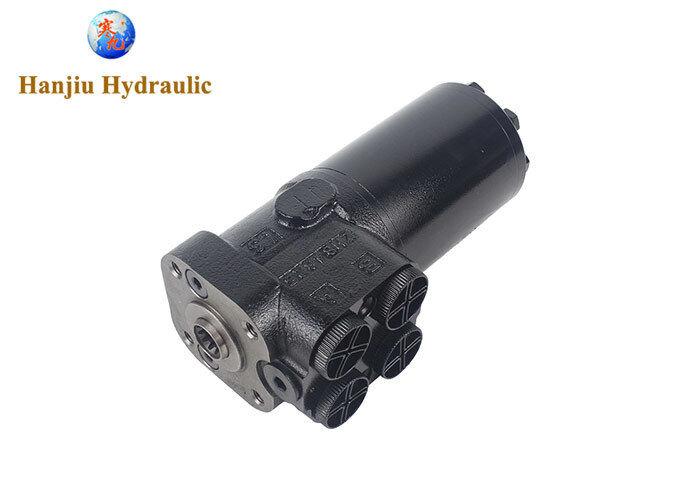

11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol

Large Image : 11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	101S-5T-500-17-E

Payment & Shipping Terms:

Minimum Order Quantity:	50 Sets
Price:	Negotiable
Packaging Details:	Carton Packing and finally with a Tray, or Wooden Box
Delivery Time:	10-15 work days
Payment Terms:	L/C,T/T
Supply Ability:	300000 Sets Per Year

Contact Now

Detailed Product Description

Product Name:	Road Roller Spare Parts	Relieve Valve:	15Mpa
Shock Valve:	21Mpa	Function:	Load Sensing
Displacement:	800 Ml/r	Max Input Speed:	75rpm
Highlight:	Load sensing orbital steering valve , Hydraulic orbitrol steering unit , OSPC 800 LS steering valve

11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol

type number:Hanjiu 101s,101S-5T-800-15-E

displacement:800cc

function:load sensing type

relief valve pressure settings:15 mpa

shock valve pressure settings:21mpa

crossing code:OSPC800 LS

OEM part:11144087

Application: loaders, backhoe loaders

Hydraulic Steering Unit 10 Series is integral steering unit, the valve body of rotary valve is integral structure, then the steering unit can integrate with cartridge valve, such as the steering control valve of the integral system. This 101S type steering unit with relief valve and shock valve, 101S series can 100% replace OSPC

Specification:

Parameters	Series 101S-5(T)(TE)(L)(E)-***
Displacement (mL/r)	50	63	80	100	125	160	200	250	280	315	400	500
Max.input speed(rpm)	100								75
Max.input pressure(Mpa)	17.5
Max.cont.back pressure	2.5
Relief Valve Pressure Settings(Mpa)	06,07,08,10,12,14,15,16.5,17.5
Shock Valves Pressure Settings(Mpa)	12,13,14,16,18,20,21,22,23.5
Weight(kg)	5.75	5.81	5.89	5.93	6.1	6.3	6.5	6.73	6.91	7.1	7.5	8.3
Dimension L (mm)	130	132	134	137	140	145	150	156	161	166	176	183

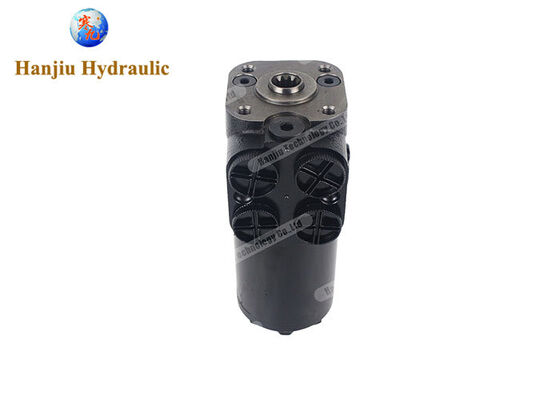

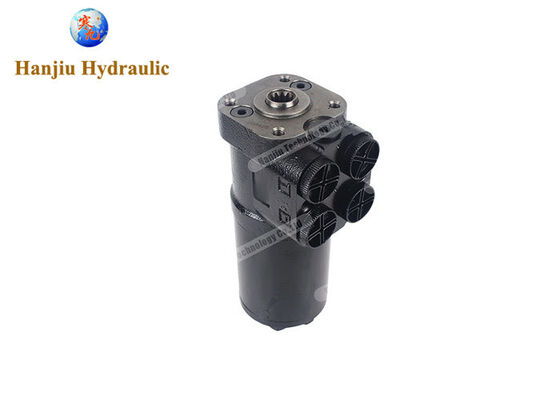

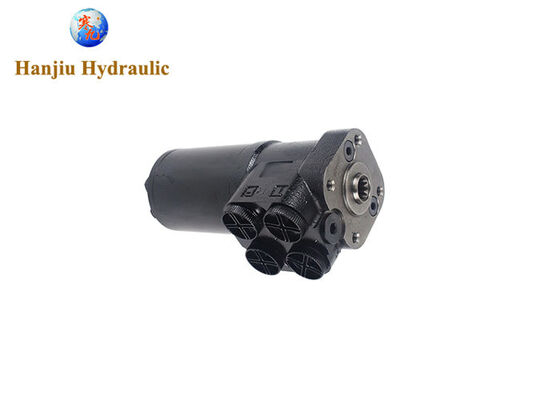

11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol 0

11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol 1

11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol 2

11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol 3

11144087 OSPC 800 LS steering unit Load sensing hydraulic orbitrol 4
