hydraulic orbitrols steering units OSPC800 ON for loaders

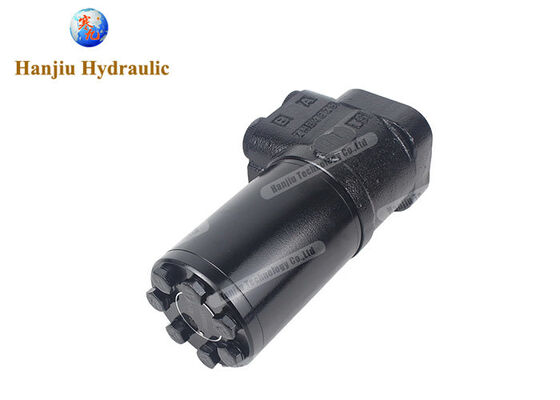

Large Image : hydraulic orbitrols steering units OSPC800 ON for loaders

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	101S-1-800-15-E

Payment & Shipping Terms:

Minimum Order Quantity:	50 Sets
Price:	Negotiable
Packaging Details:	Carton Packing and finally with a Tray, or Wooden Box
Delivery Time:	10-15 work days
Payment Terms:	L/C,T/T
Supply Ability:	300000 Sets Per Year

Contact Now

Detailed Product Description

Product Name:	Loaders Steering Units	Relieve Valve:	15Mpa
Shock Valve:	21Mpa	Function:	Open Center-non Reaction
Displacement:	800 Ml/r	Max Input Speed:	75rpm
Highlight:	hydraulic orbitrols steering units , OSP800 ON steering units , loaders orbital steering valve

hydraulic orbitrols steering units OSPC800 ON for loaders

type number:Hanjiu 101s,101S-1-800-15-E

displacement:800cc

function:open center-non reaction

relief valve pressure settings:15 mpa

shock valve pressure settings:21mpa

crossing code:OSPC800 ON

Application: loaders, backhoe loaders,excavators

Hydraulic Steering Unit 10 Series is integral steering unit, the valve body of rotary valve is integral structure, then the steering unit can integrate with cartridge valve, such as the steering control valve of the integral system. This 101S type steering unit with relief valve and shock valve, 101S series can 100% replace OSPC

Specification:

Parameters	Series 101S-----***
Displacement (mL/r)	50	63	80	100	125	160	200	250	280	315	400	500
Function code	1,2,4								1,4
Max.input speed(rpm)	100								75
Max.input pressure(Mpa)	17.5
Max.cont.back pressure	2.5
Relief Valve Pressure Settings(Mpa)	06,07,08,10,12,14,15,16.5,17.5
Shock Valves Pressure Settings(Mpa)	12,13,14,16,18,20,21,22,23.5
Weight(kg)	5.75	5.81	5.89	5.93	6.1	6.3	6.5	6.73	6.91	7.1	7.5	8.3
Dimension L (mm)	130	132	134	137	140	145	150	156	161	166	176	183

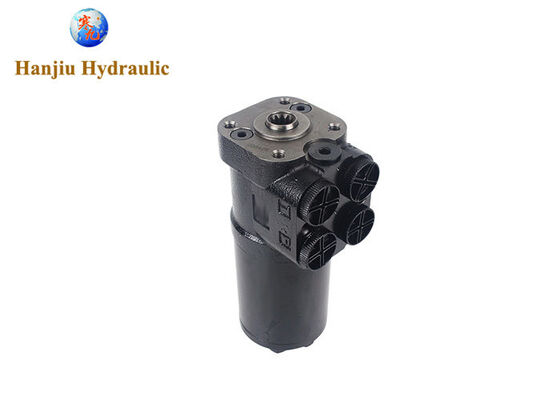

hydraulic orbitrols steering units OSPC800 ON for loaders 0

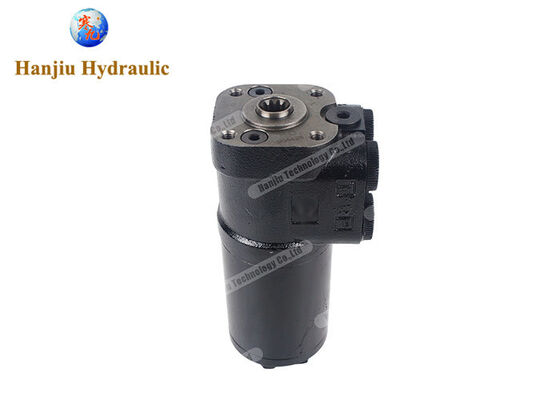

hydraulic orbitrols steering units OSPC800 ON for loaders 1

Other types as below

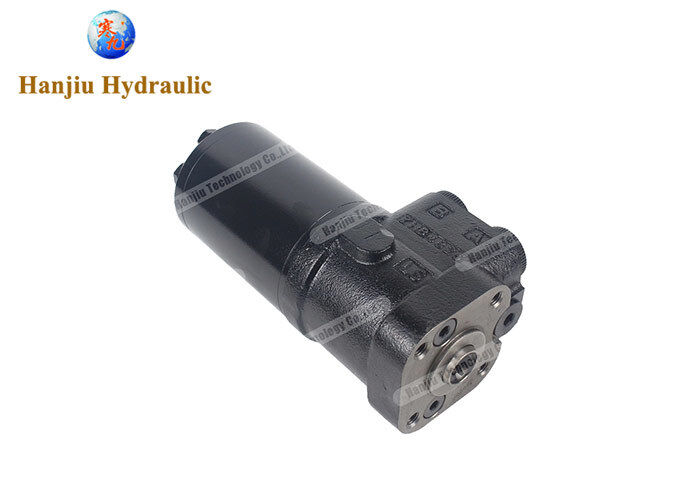

hydraulic orbitrols steering units OSPC800 ON for loaders 2
