Hydraulic Orbit Motor BMRWN-BK01-160 Wheel Drive Motor with internal brake

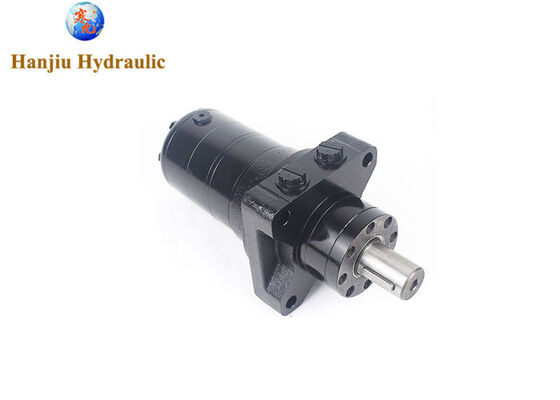

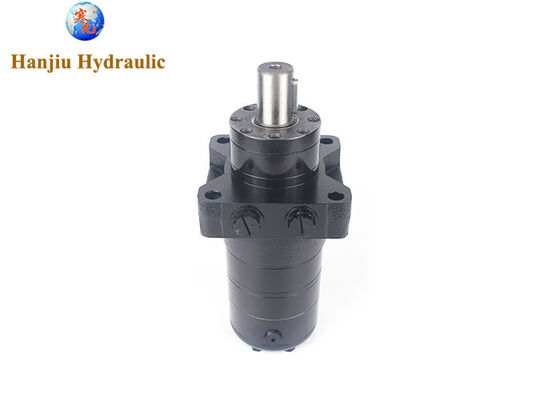

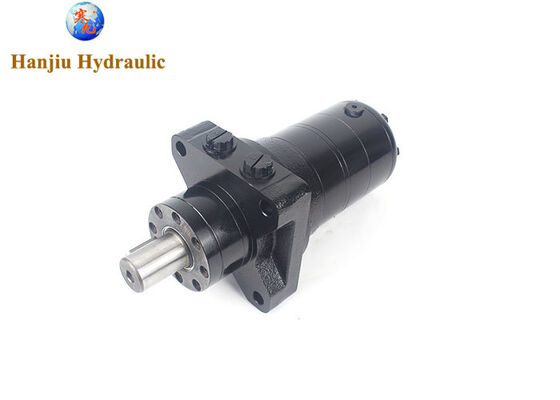

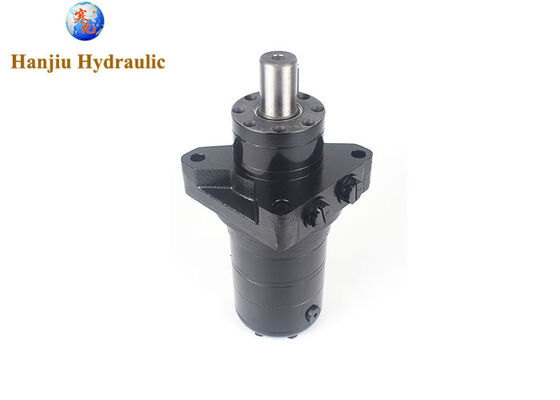

Large Image : Hydraulic Orbit Motor BMRWN-BK01-160 Wheel Drive Motor with internal brake

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	bmrwn-bk01-160-g-s-g

Payment & Shipping Terms:

Minimum Order Quantity:	20 Pieces
Price:	Negotiable
Packaging Details:	1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Delivery Time:	25-30 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Payple
Supply Ability:	300000 pieces per year

Contact Now

Detailed Product Description

Type:	Hydraulic Oil Motor	Material:	Cast Iron
Model No.:	Bmrwn-bk01-160-g-s-g	Displacement:	160CC
Speed:	378RPM - 3475RPM	Flow:	60 Lpm -75 Lpm
Pressure:	16.5mpa-22.5mpa	Output:	12.5-14kw
Highlight:	Hydraulic orbit motor with internal brake , Low speed high torque hydraulic motor , Wheel drive hydraulic motor BMRWN-BK01-160

Hydraulic Orbit Motor BMRWN-BK01-160 Wheel Drive Motor with internal brake

Specifications:

BMRWN-BK01-160-G-S-G
displacement :160CC
wheel flange
31.75 key shaft
7/8-14 O-ring manifold

4×5/16-18UNC, 7/16-20UN
brake release port G1/4

Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR Bk01 36	BMR Bk01 50	BMR Bk01 80	BMR Bk01 100	BMR Bk01 125	BMR Bk01 160	BMR Bk01 200	BMR Bk01 250	BMR Bk01 315	BMR Bk01 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Hydraulic Orbit Motor BMRWN-BK01-160 Wheel Drive Motor with internal brake 0

Hydraulic Orbit Motor BMRWN-BK01-160 Wheel Drive Motor with internal brake 2

APPLICATION
Conveyors
Feeding mechanism of robots and manipulators
Metal working machines
Textile machines
Food industries
Agriculture machines
Mining machinery etc.

HANJIU focuses on continuous research in fluid power, material applications, and system integration, with an emphasis on the development and manufacturing of motor orbital oms. Relying on advanced manufacturing equipment and a comprehensive quality inspection system, we ensure that every product delivered meets strict technical standards, from precision machining of core components to full performance testing of the entire machine. HANJIU not only provides high-quality hydraulic components but also strives to be a reliable partner for customers in the field of power transmission, helping improve the performance and value of industrial equipment worldwide with advanced technology and stable products.
