Hydraulic Orbital Motor BMSY-80 wheel motor with relief valve

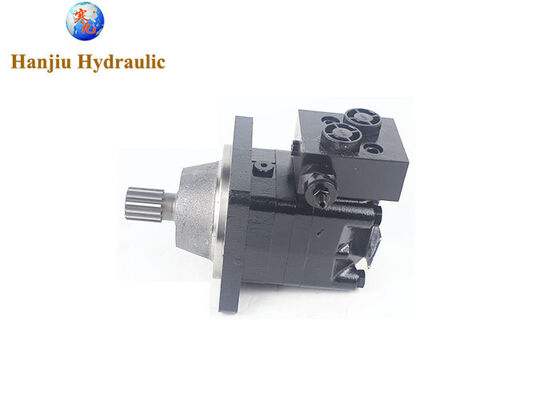

Large Image : Hydraulic Orbital Motor BMSY-80 wheel motor with relief valve

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-160

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,D/A,T/T,Western Union,Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:	Low Speed High Torque Motor	Type:	Bmsy
Flange:	Wheel Flange	Shaft:	Spline Shaft
Materia:	Cast Iron	Warranty:	1 Year
Highlight:	Hydraulic orbital motor with relief valve , Low speed high torque wheel motor , BMSY-80 hydraulic motor with warranty

Hydraulic Orbital Motor BMSY-80 wheel motor with relief valve

Product details:

type code BMSY-80-W-FE-SU+FYSD-15-D

Displacement:80cc

Flange:

4-Ø13.5 Wheel-flange Ø160

pilot Ø125×8

Shaft:

Shaft Ø 31.75 ,splined key 14-DP12/24

Ports:

7/8-14UNF O-ringˈ 7/16-20 UNF

Crossover relief valve

FYSD-15-D

flow rate:60liters

pressure :15mpa

port size:G1/2

BMSY Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute

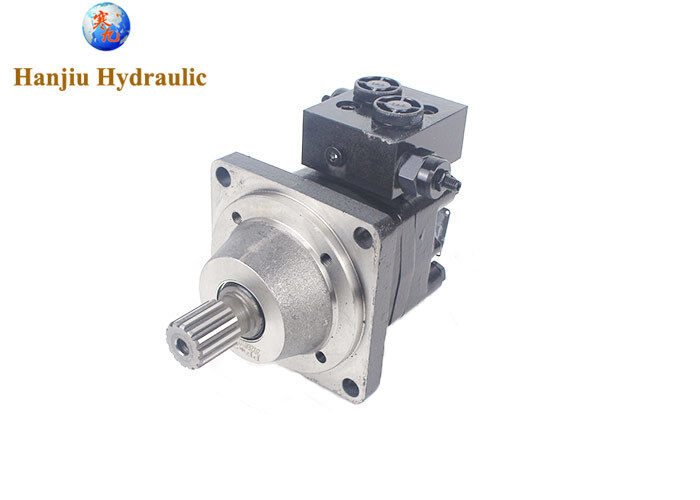

Hydraulic Orbital Motor BMSY-80 wheel motor with relief valve 0

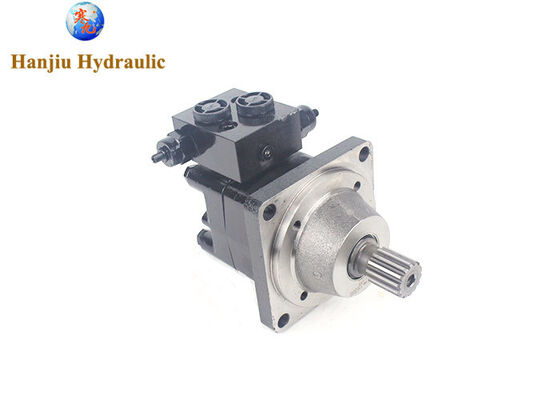

Hydraulic Orbital Motor BMSY-80 wheel motor with relief valve 1

Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems

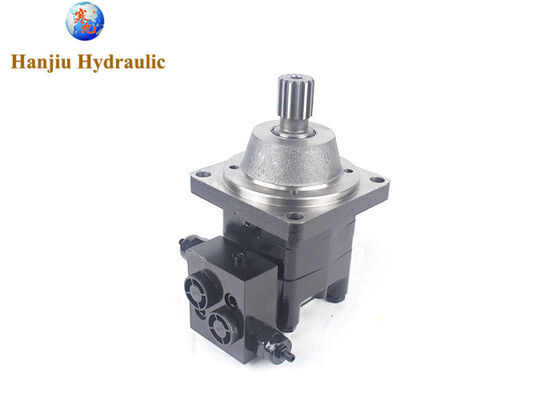

Hydraulic Orbital Motor BMSY-80 wheel motor with relief valve 2

From agile construction machinery to efficient agricultural equipment, from precision material handling systems to stable marine deck machinery, the Hanjiu Motor Orbital OMS160 has become a core driving force behind modern equipment's refined operations. Its distinctive features—compact size, high torque, and exceptional reliability—set it apart. This embodies Hanjou's comprehensive technical strength and customer-centric philosophy. Hanjou consistently prioritizes product reliability and applicability in R&D, while committing to providing comprehensive technical support and solutions. This ensures every Hanjou motor achieves optimal performance within equipment, establishing itself as a trusted long-term partner for users.

omt motor size chart

oms orbital motor diagram

orbital motor curve chart

oms flange motor diagram

oms motor diagram

oms orbital motor curve

oms 160 series 3 specs

oms motor specs
