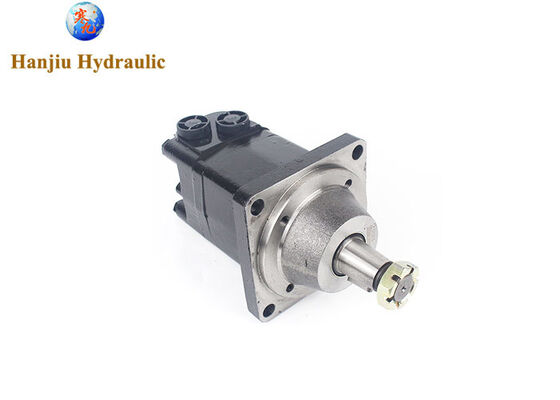

MSW315K Hydraulic Wheel motor, 315cc with tapered shaft, BSPP ports

Large Image : MSW315K Hydraulic Wheel motor, 315cc with tapered shaft, BSPP ports

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-315-W-T1-D

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Box, Pallet
Delivery Time:	25 - 35 work days
Payment Terms:	L/C,D/A,T/T,Western Union,Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:	Low Speed High Torque Motor	Type:	BMSY-315-W-T1-D
Flange:	Square Flange	Shaft:	Tapered Shaft
Materia:	Cast Iron	Warranty:	1 Year
Highlight:	315cc hydraulic wheel motor , tapered shaft hydraulic motor , BSPP ports hydraulic motor

MSW315K Hydraulic Wheel motor, 315cc with tapered shaft, BSPP ports

Product details:

type code BMSY-315-W-T1-D

Displacement:315cc

Flange:

4-Ø13.5 Wheel-flange Ø160

pilot Ø125x8

Shaft:

Cone-shaft Ø35 ,parllel key B6×6×20

Ports:

G1/2 Manifold Mount;

2-M10 , G1/4

BMSY Main Specifications:

Type		BMSY 80	BMSY 100	BMSY 125	BMSY 160	BMSY 200	BMSY 250	BMSY 315	BMSY 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute

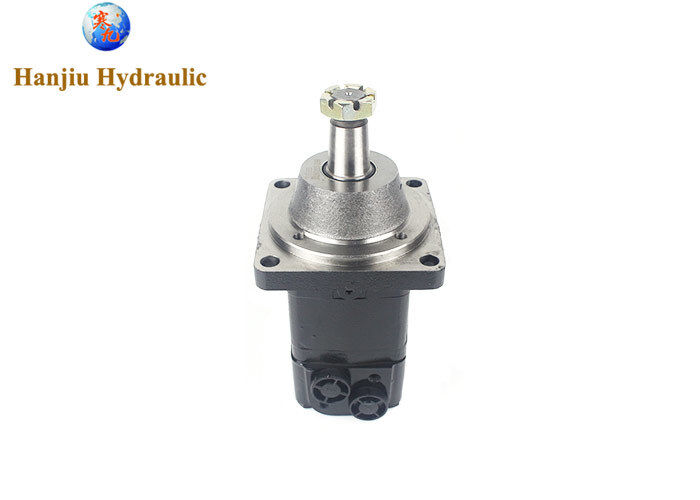

MSW315K Hydraulic Wheel motor, 315cc with tapered shaft, BSPP ports 0

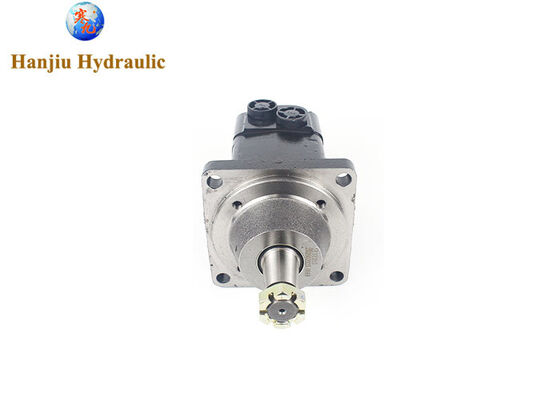

MSW315K Hydraulic Wheel motor, 315cc with tapered shaft, BSPP ports 1

type code for your ref

MS080

MS100

MS125

MS160

MS200

MS315

MS400

MS100K

MS315K

MSS80

MSS250

Contact a hydraulics specialist or HANJIU . Solve all your hydraulic motor problems

MSW315K Hydraulic Wheel motor, 315cc with tapered shaft, BSPP ports 2

HANJIU Technology is the supplier of low speed / high torque orbital motors. We offer various solutions, applications and types of motors adapted to your requirements. The displacements are variable between 50 cc/rev to 800 cc/rev. The speed range varies from 1380 rpm for the smallest motors to 300 rpm for the bigger types. The maximum operating torques are variable between 9,3daNm and 182daNm.

Our motors are interchangeables with motors supplied by best known manufacturers. We offer the best price/performance ratios on the market and have short delivery supplies from stock.

Orbital Hydraulic Motor line: MM, MP, MR, MS, MT e MV.
