Hydraulic Orbit Motors with Speed Sensor OMT315, MT315SH-RS

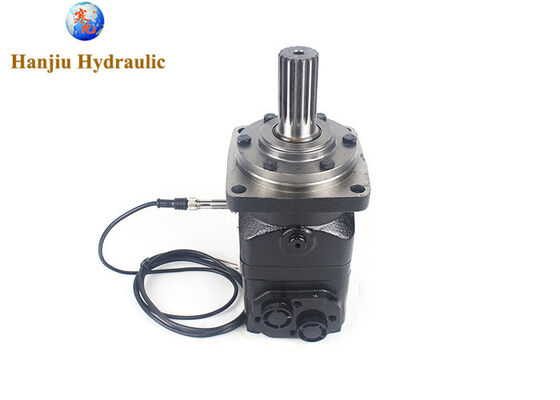

Large Image : Hydraulic Orbit Motors with Speed Sensor OMT315, MT315SH-RS

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMT-500

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Start from 95 usd
Packaging Details:	Carton, Box, Pallets
Delivery Time:	35 - 45 work days
Payment Terms:	L/C,T/T,Western Union,Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Material:	Cast Iron	Model:	BMT-315-4-F-D-SD
Fastening:	4 Bolts Mounting	Displacement:	315CM3/R
Shaft:	17T Spline Shaft	Port:	G1/2 Ports
Highlight:	Hydraulic orbit motor with speed sensor , Low speed high torque hydraulic motor , Hydraulic motor OMT315 with warranty

Hydraulic Orbit Motors with Speed Sensor OMT315, MT315SH-RS

the details as below

hanjiu code :BMT-315-4-F-D-SD=MT315SH with speed sensor

Specification:

DISPLACEMENT	315CC
SERIES	BMT315,MT315,OMT315
PORT LOCATION	Side Port, Staggered
SHAFT TYPE	17teeth spline shaft
DRAIN	G1/4
MAXIMUM SPEED @ CONTINUOUS FLOW	380rpm/460rpm
FLOW RATE	125l/min
RPM [MAX]	460rpm
DUTY	Standard-Duty
GEROTER/GEROLER OPTIONS	Standard
MOUNTING TYPE	4-Ø14 Square-flangeØ160, pilotØ125×9
PORT SIZE	G1/2
MOTOR TYPE	Disc Valve

Hydraulic Orbit Motors with Speed Sensor OMT315, MT315SH-RS 0

Hydraulic Orbit Motors with Speed Sensor OMT315, MT315SH-RS 1

other types with speed sensor

Hydraulic Orbit Motors with Speed Sensor OMT315, MT315SH-RS 6

151B 3014	151B 3010	151B 3033	151B 3020	151B 3017
151B 3015	151B 3011	151B 3034	151B 3021	151B 2062
151B 3016	151B 2056	151B 3035	151B 3022	151B 2063
151B 3037	151B 2057	151B 2080	151B 3023	151B 2064
151B 3038	151B 2058	151B 2081	151B 3024	151B 2065
151B 3039	151B 2059	151B 2082	151B 3025	151B 2066
151B 3030	151B 2060	151B 2083	151B 3026	151B 2067
151B 3031	151B 2061	151B 2084	151B 3027	151B 3018
151B 3032	151B 3012	151B 2085	151B 3028	151B 3019
151B 3041	151B 3013	151B 3036	151B 3029	151B 3040
