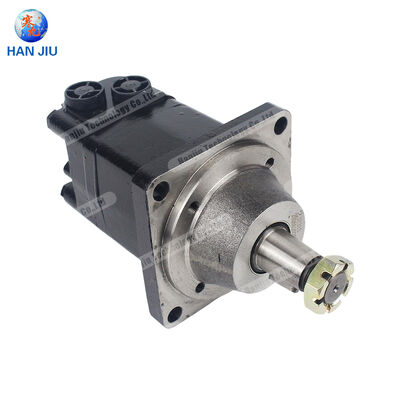

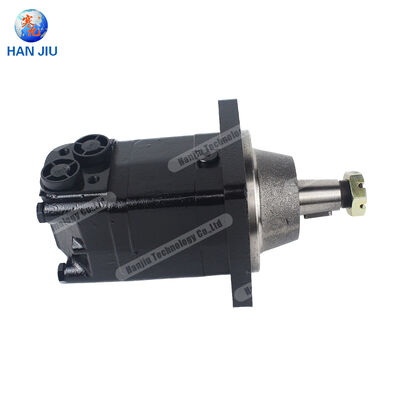

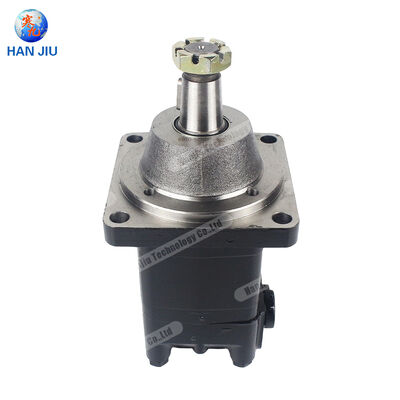

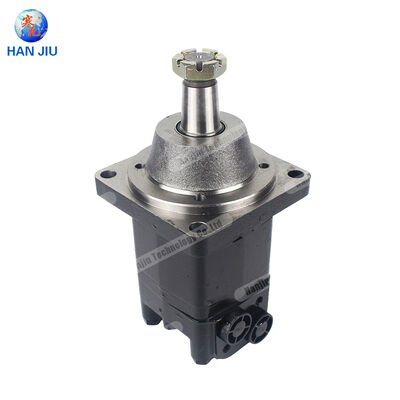

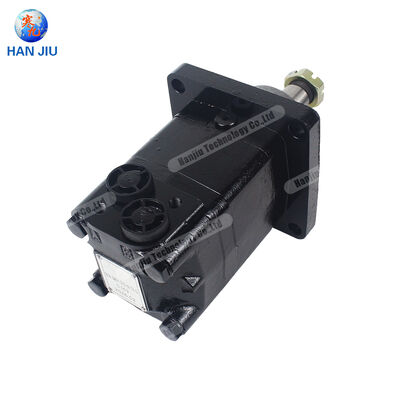

Hydraulic Motor BMSY-315-W-T4-D with 315ml/r displacement, Wheel mounting flange, 31.75 tapered shaft and G1/2 port A and B

Large Image : Hydraulic Motor BMSY-315-W-T4-D with 315ml/r displacement, Wheel mounting flange, 31.75 tapered shaft and G1/2 port A and B

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY-315-W-T4-D

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Contact the seller to ask
Packaging Details:	Crates or Tray
Delivery Time:	25 - 35 work days
Payment Terms:	T/T
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Item:

Hydraulic Motor

Model No.:

BMSY-315-W-T4-D

Brand:

Hanjiu

Origin:

China

Highlight:

Hydraulic motor 315ml/r displacement

Wheel mounting flange hydraulic motor

Low speed high torque hydraulic motor

Quick review:

Hydraulic motor details:
BMSY-315-W-T4-D

Main Specifications:

Type		BMSY BMSE 80	BMSY BMSE 100	BMSY BMSE 125	BMSY BMSE 160	BMSY BMSE 200	BMSY BMSE 250	BMSY BMSE 315	BMSY BMSE 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

BMSY
BMSYS
160
BMSY
BMSYS
80
BMSY
BMSYS
100
BMSY
BMSYS
125
BMSY
BMSYS
200
BMSY
BMSYS
250
BMSY
BMSYS
315
BMSY
BMSYS
400
BMSY
BMSYS
475

Hanjiu BMSY series hydraulic motors can be exchange with below:

151F0542	151F0543	151F0544	151F0545	151F0546	151F0547	151F0548	151F2267
151F2300	151F2301	151F2302	151F2303	151F2304	151F2305	151F2306	151F2307
151F2316	151F2317	151F2318	151F2319	151F2320	151F2321	151F2322	151F2323
151F2308	151F2309	151F2310	151F2311	151F2312	151F2313	151F2314	151F2315
151F2324	151F2325	151F2326	151F2327	151F2328	151F2329	151F2330	151F2331
151F2332	151F2333	151F2334	151F2335	151F2336	151F2337	151F2338	151F2339
151F2377	151F2378	151F2379	151F2380	151F2381	151F2382	151F2383	151F2384
151F2368	151F2369	151F2370	151F2371	151F2372	151F2373	151F2374	151F2375
151F2359	151F2360	151F2361	151F2362	151F2363	151F2364	151F2365	151F2366
151F2350	151F2351	151F2352	151F2353	151F2354	151F2355	151F2356	151F2357
151F2395	151F2396	151F2397	151F2398	151F2399	151F2400	151F2401	151F2402
151F2413	151F2414	151F2415	151F2416	151F2417	151F2403	151F2358	151F2367
151F0521	151F0522	151F0523	151F0524	151F0525	151F0526	151F0527	151F0610
151F2235	151F2236	151F2237	151F2238	151F2239	151F2240	151F2241	151F2265
151F0528	151F0529	151F0530	151F0531	151F0532	151F0533	151F0534	151F0609
151F2242	151F2243	151F2244	151F2245	151F2246	151F2247	151F2248	151F2263
151F0535	151F0536	151F0537	151F0538	151F0539	151F0540	151F0541	151F0608
151F2268	151F2269	151F2385	151F2349	151F2348	151F2346	151F2347	151F2345
151F0500	151F0501	151F0502	151F0503	151F0504	151F0505	151F0506	151F0605
151F2200	151F2201	151F2202	151F2203	151F2204	151F2205	151F2206	151F2261
151F0507	151F0508	151F0509	151F0510	151F0511	151F0512	151F0513	151F2270
151F2207	151F2208	151F2209	151F2210	151F2211	151F2212	151F2213	151F2262
151F0514	151F0515	151F0516	151F0517	151F0518	151F0519	151F0520	151F2376
151F2214	151F2215	151F2216	151F2217	151F2218	151F2219	151F2220	151F2264
151F0560	151F0561	151F0562	151F0563	151F0564	151F0565	151F0566	151F2266
