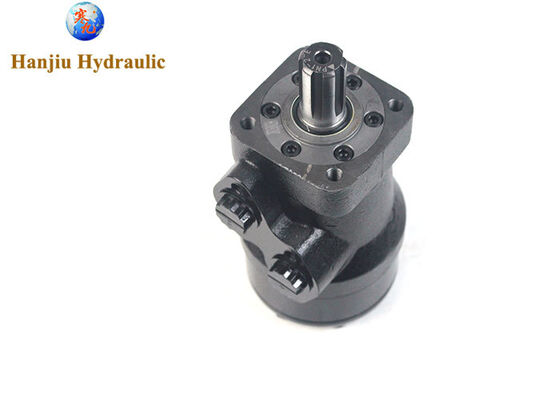

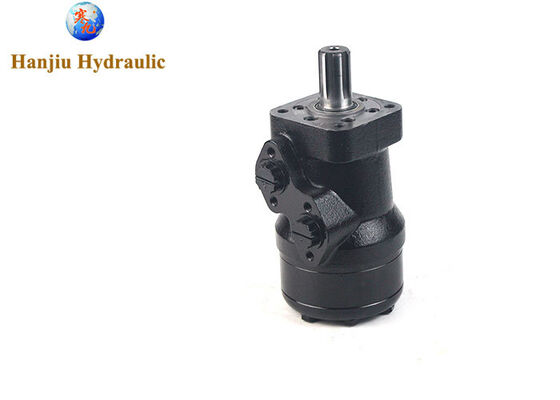

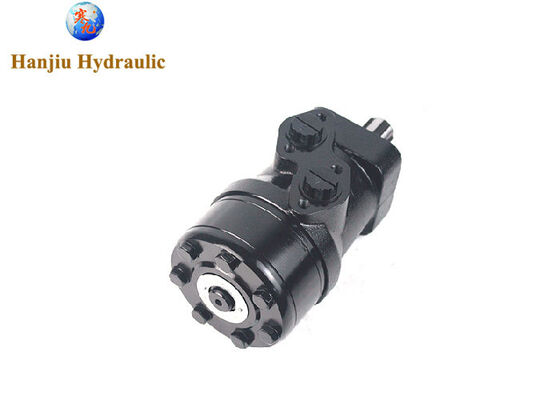

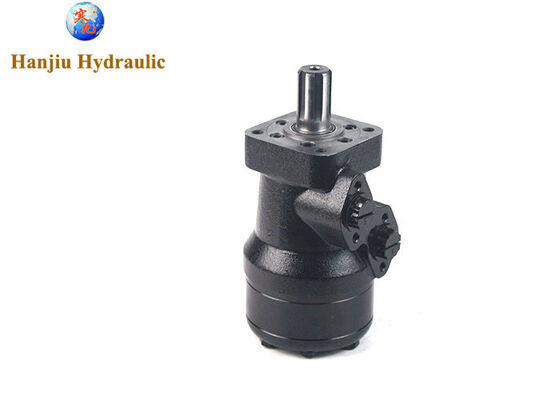

Hydraulic orbit motor MLHRQ160, 4 square flange, SAE 6B spline shaft for garbage truck hydraulic motor

Hydraulic orbit motor MLHRQ160, 4 square flange, SAE 6B spline shaft for garbage truck hydraulic motor


Specifications:

1. BMR-160=MLHRQ160
2. displacement :160CC
3. 4 bolts square  flange
4. SAE 6B shaft
5. ports size 7/8-14 O-ring manifold  4×5/16-18UNC,
6. drain ports 7/16-20UN
7. Application:McNeilus 9.77 CIR SAE 6B Motor
8. cross reference parts :1461814, M1-1461814, MN1461814


Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:


APPLICATION
Conveyors
Feeding mechanism of robots and manipulators
Metal working machines
Textile machines
Food industries
Agriculture machines
Mining machinery etc.





The motor orbital BMR sold by HANJIU achieves higher reliability through material optimization and precision manufacturing. Understanding its performance characteristics, replacement cycles for wear parts, and scientific maintenance protocols is key to maximizing the product's value.

1. Core Performance Characteristics of Motor Orbital BMR

Motor Orbital BMR operates reliably under high pressure and automatically compensates for clearance, ensuring sustained high-efficiency performance. Key advantages of HANJIU's Motor Orbital BMR include:

- Advanced rotor-stator parameter design delivers low start-up pressure, high mechanical efficiency, and excellent performance stability;

- High-pressure shaft seal structure withstands elevated back pressure, enabling series or parallel operation; An optimized drive shaft design significantly extends service life; A meticulously engineered distribution system effectively controls operational noise; A compact overall structure ensures easy installation. These technical features enable HANJIU's Motor Orbital BMR to reliably handle demanding applications ranging from combine harvesters to mining drills.

2. Replacement Cycle of Wear Parts and Use of Genuine Products

For motor orbital BMR, some wear parts may need to be replaced due to normal wear over long-term use. Seals are the most common wear parts, with shaft end oil seals and output shafts experiencing long-term friction. It is generally recommended to check and replace them every 2,000-3,000 hours of operation or when minor leakage is detected. O-rings at the mating surfaces should also be replaced promptly if they show signs of aging or compression damage.

Pins are key components inside the stator body. When wear exceeds the limit, the mating gap of the stator body increases, leading to higher internal leakage and reduced load capacity. HANJIU recommends checking for wear and replacing as needed every 3,000-4,000 hours of operation or if performance declines. If the mating surfaces of the output shaft and housing wear due to oil contaminants, it can also cause internal leakage, with a replacement cycle generally exceeding 5,000 hours.

Using genuine parts is crucial. HANJIU provides original-quality repair parts such as sealing components, pins, and output shafts, all of which undergo rigorous testing to ensure perfect compatibility with the motor. Using inferior parts may not only accelerate damage to other components but also prevent the overall machine from restoring its performance.

3. Scientific Maintenance Guidelines

Standard maintenance is fundamental to extending the lifespan of the motor orbital BMR. HANJIU Technology recommends users follow the following maintenance points:

Daily Inspection: Before operation, check the hydraulic oil level and cleanliness, and observe for any external leaks. During operation, listen for normal running sounds, and pay attention to any abnormal vibrations or temperature increases.

Oil Management: The quality of hydraulic oil directly affects the motor's lifespan. It is recommended to use anti-wear hydraulic oil with cleanliness meeting ISO 18/13 standards. After 50 hours of operation for a new motor, the hydraulic oil should be replaced for the first time and the oil filter cleaned; thereafter, follow the equipment requirements for regular replacement.

Periodic Maintenance Cycle: For equipment under heavy daily load, a comprehensive inspection should be scheduled approximately every 1000 hours, focusing on the condition of seals and internal wear. Motors used under harsh conditions are recommended to be checked every 500 hours.

Proper Disassembly and Assembly: Do not disassemble the motor lightly if it is not malfunctioning. If disassembly is necessary, be careful not to damage the mating surfaces. Clean all parts with gasoline before assembly; do not use cotton yarn for cleaning. After assembly, fill the oil port with hydraulic oil and rotate the output shaft to check for abnormalities before installing the motor.Exhausting and Breaking-In: After replacing the motor or performing repairs, it should be started and run under no-load conditions for 10-15 minutes to exhaust air. After removing the air, gradually increase the load to full load. Only after confirming there are no abnormalities can it be put into normal operation.

As a professional company deeply engaged in the field of fluid power, HANJIU not only provides reliable performance motor orbital BMRs but also has established a comprehensive technical support and after-sales service system. The company enforces strict quality control during research, development, and manufacturing, and every product undergoes performance testing before leaving the factory to ensure that every motor delivered to customers can withstand the test of time. When users encounter operational issues or need replacement parts, HANJIU's professional team can provide remote diagnostics or on-site services and supply genuine quality parts to ensure the equipment quickly resumes operation.

Choosing HANJIU's motor orbital BMR means choosing a reliable guarantee throughout the entire lifecycle of the product.
