101-1082-009 New Hydraulic Motor Compatible with Eaton Char-Lynn H Series- BMPH80

Large Image : 101-1082-009 New Hydraulic Motor Compatible with Eaton Char-Lynn H Series- BMPH80

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMPH-80-H2-S-S

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	Negotiable
Packaging Details:	Carton Box
Supply Ability:	90000 Pieces One Year

Contact Now

Detailed Product Description

Features:	Low Speed High Torque	Product Name:	Hydraulic Geroler Motor
Material:	Cast Iron	Model Number:	BMPH-80-H2-S-S
Displacement:	80CC	Shaft:	SAE 6B
Highlight:	Eaton Char-Lynn H Series hydraulic motor , BMPH80 compatible hydraulic motor , Orbit hydraulic motor with warranty

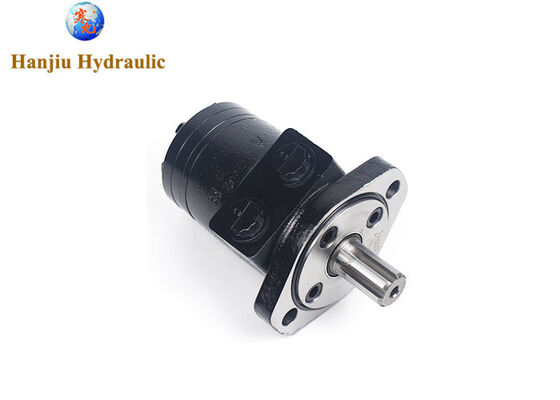

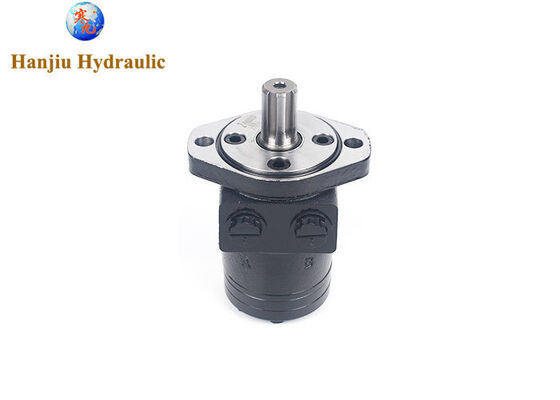

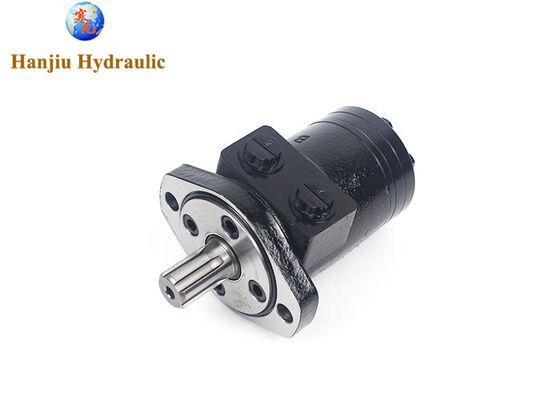

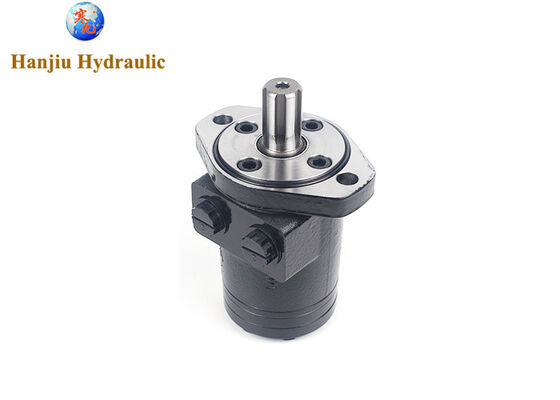

101-1082-009 New Hydraulic Motor Compatible with Eaton Char-Lynn H Series- BMPH80

► Product details

model type:BMPH-80-H2-S-S=101-1082-009

displacement:80cc

flange:Ø13.5 Rhomb-flange , 2- pilot Ø82.5×2.8

shaft: Shaft Ø25.4 , splined tooth SEA 6B

port threads:7/8-14 O-ring ,7/16-20UNF

► Specification

Type		BMPH 36	BMPH 50	BMPH 80	BMPH 100	BMPH 125	BMPH 160	BMPH 200	BMPH 250	BMPH 315	BMPH 400	BMPH 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

101-1082-009 New Hydraulic Motor Compatible with Eaton Char-Lynn H Series- BMPH80 0

101-1082-009 New Hydraulic Motor Compatible with Eaton Char-Lynn H Series- BMPH80 1

OTHER TYPES, YOU CAN CHOOSE FROM THE ORDER CODE

101-1082-009 New Hydraulic Motor Compatible with Eaton Char-Lynn H Series- BMPH80 2

HANJIU has established a comprehensive quality control system equipped with advanced production and testing equipment. Each BMP/BMPH orbital motor undergoes thorough inspection for internal leakage, back pressure compatibility, and heat dissipation performance to ensure compliance with high-efficiency temperature control standards. HANJIU's BMP/BMPH orbital motors not only deliver core advantages of high efficiency, low consumption, and superior temperature control, but also feature high reliability, exceptional durability, and broad compatibility. They effectively eliminate abnormal heating issues and extend equipment lifespan. We provide customized solutions tailored to different equipment models and operational scenarios, backed by a comprehensive after-sales support and spare parts supply system. This ensures timely technical assistance and maintenance services for our customers. Choosing HANJIU BMP/BMPH Orbital Motors delivers stable, high-efficiency power support while minimizing losses from overheating failures. Visit the HANJIU official website to explore our product offerings.
