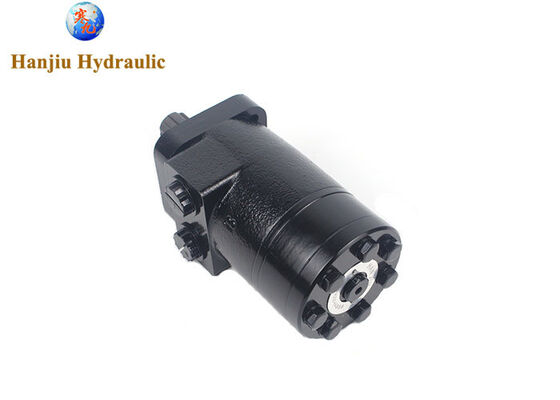

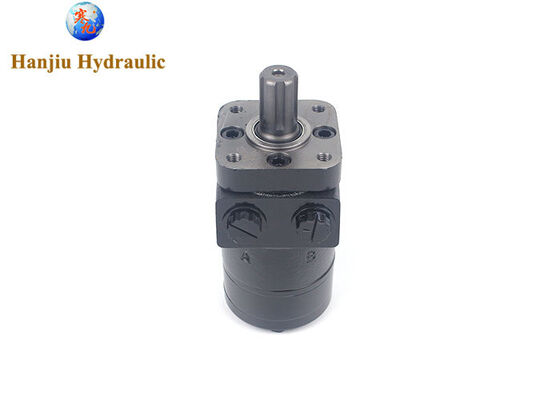

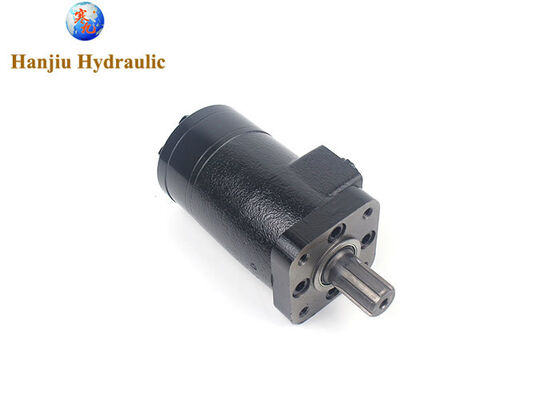

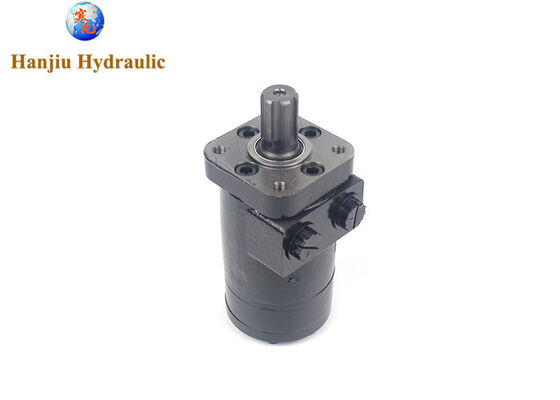

Hydraulic geroler motor BMPH-400 replaces 101-1061-009 spool valve motor

Large Image : Hydraulic geroler motor BMPH-400 replaces 101-1061-009 spool valve motor

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMPH-400-H4-S-S

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	Negotiable
Packaging Details:	Carton Box
Supply Ability:	90000 Pieces One Year

Contact Now

Detailed Product Description

Features:	Low Speed High Torque	Product Name:	Hydraulic Geroler Motor
Material:	Cast Iron	Model Number:	BMPH-400-H4-S-S
Displacement:	400CC	Shaft:	SAE 6B
Highlight:	Hydraulic geroler motor BMPH-400 , Spool valve replacement motor , Orbit hydraulic motor with warranty

Hydraulic geroler motor BMPH-400 replaces 101-1061-009 spool valve motor

► Product details

model type:BMPH-400-H4-S-S=101-1061-009

displacement:400cc

flange:4-3/8-16 Square-flange , pilot Ø44.4×2.8

shaft: Shaft Ø25.4 , splined tooth SEA 6B

port threads:7/8-14 O-ring ,7/16-20UNF

► Specification

Type		BMPH 36	BMPH 50	BMPH 80	BMPH 100	BMPH 125	BMPH 160	BMPH 200	BMPH 250	BMPH 315	BMPH 400	BMPH 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

Hydraulic geroler motor BMPH-400 replaces 101-1061-009 spool valve motor 0

Hydraulic geroler motor BMPH-400 replaces 101-1061-009 spool valve motor 1

OTHER TYPES, YOU CAN CHOOSE FROM THE ORDER CODE

Hydraulic geroler motor BMPH-400 replaces 101-1061-009 spool valve motor 2

101-1761-009

101-1057 -009

101-1762-009

101-1058-009

101-1059-009

101-1872-009

101-1763-009

101-1060-009

101-1061-009

101-1062-009

101-1063-009

101-1064-009

101-1721-009

101-1081 -009

101-1722-009

101-1082-009

101-1083-009

101-1723-009

101-1724-009

101-1084-009

101-1085-009

101-1086-009

101-1087-009

101-1088-009
