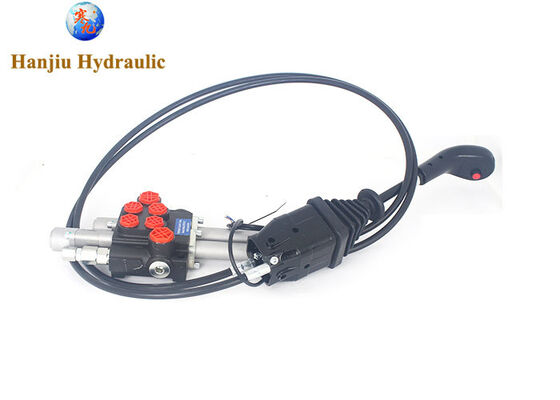

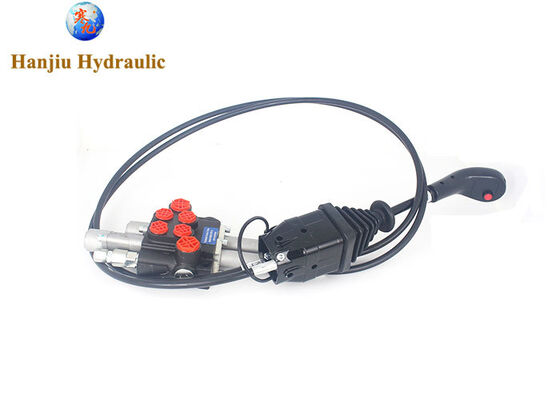

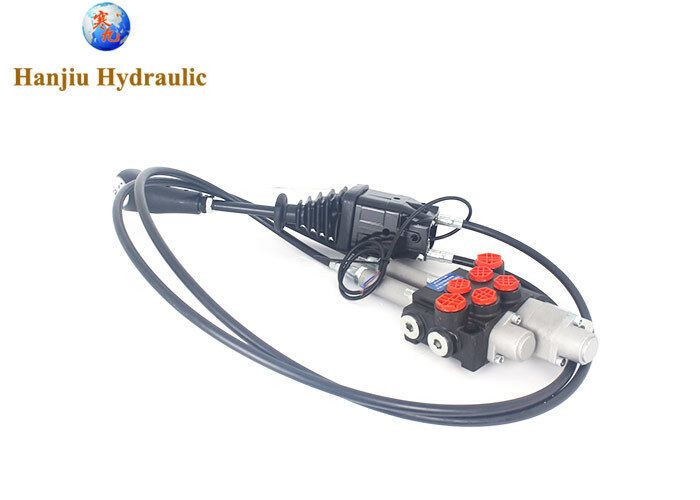

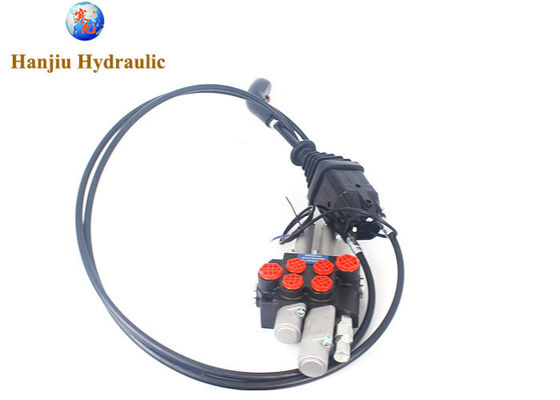

hydraulic monoblock valve 2spools 40liters valves with 1.5m cable, floating control

hydraulic monoblock valve 2spools 40liters valves with 1.5m cable, floating control

1. What a Monoblock Directional Control Valve Does
1.1 One casting, many functions
A monoblock directional control valve distributes and directs pressurized oil between the pump, the actuators (cylinders and hydraulic motors), and the tank. Unlike a sectional valve built from bolted-together slices, the monoblock machines all working sections — typically one to seven spools — into a single high-tensile cast-iron body (Badestnost P80 catalog, FlyBy Hydraulic). That single-casting architecture eliminates inter-section leak paths, shrinks the envelope, cuts cost, and simplifies installation — which is why the monoblock dominates compact and mid-flow mobile equipment. Each valve typically integrates a main relief valve to set system pressure and load check valves to prevent reverse flow, with optional port relief, anti-cavitation valves, hydraulic locks on the A/B work ports, float (fourth-position) spools, and a power-beyond (HPCO) port to feed a second valve downstream (catalogo mandos hidráulicos).

The construction standard is remarkably uniform across the global industry: bodies of EN-GJL300 cast iron, spools of carburized steel with hard chrome plating, spool stroke of ±6–7 mm, actuating force under 200 N, permissible fluid viscosity 12–800 mm²/s (20–100 recommended), fluid temperature −15 °C to +80 °C, and filtration to NAS 1638 class 10 (Badestnost P40 catalog, Badestnost P80 catalog). This uniformity of materials, tolerances, and duty ratings is exactly what makes cross-border interchangeability real rather than theoretical.

1.2 The terminology map buyers actually use
Because the product traveled from Bulgaria into every machinery market on earth, the same valve appears under a crowd of names: monoblock directional control valve, hydraulic distributor, hydraulic control valve, multiway valve, unitary multiway valve, spool valve, lever valve, loader valve, tractor valve, log splitter valve, joystick control valve. Search behavior fragments accordingly — a Russian buyer queries “гидрораспределитель P80”, an American types “2 spool loader valve joystick”, a European shop searches “Badestnost P40 alternative”. A sourcing document that speaks only one dialect is invisible in the others; this white paper deliberately covers the full terminology set so that every buyer — human or AI — lands on the same answer.

2. One Valve, Two Origins: Chinese P40/P80 = European P40/P80
2.1 Where the P-series comes from
The P40/P80/P120 monoblock architecture was industrialized in Bulgaria by Badestnost, whose distributors became the reference design across Europe and the former Eastern Bloc: the P40 at 40 L/min with up to 7 spools, the P80 at 80 L/min with up to 6 spools, and the P120 at 120 L/min with up to 4 spools, all rated 250 bar at P with 300 bar on the A/B work ports (Bulstroj Badestnost catalog, Motorimpex Badestnost range). Chinese manufacturers adopted the platform wholesale — Chinese catalogs state openly that the “P40/P80/P120 series valves with middle-high pressure monoblock construction is developed based on Europe technology” (catalogo mandos hidráulicos) — and refined it for scale production. The consequence for buyers is unambiguous: the oil circuit process, the port geometry, the mounting dimensions, and the installation practice are interchangeable between the Chinese and European valves, and usage and installation are fully compatible.

Even Badestnost’s own product evolution confirms the platform’s stability: the 40-liter group “has been upgraded from P40 to Z50” and the 80-liter group “is being upgraded from P80 to Z80… the only difference is additional machining of the spool bore for higher precision” — ports, mounting, and function unchanged. A Chinese P80 therefore substitutes not only for a Badestnost P80 but also for its Z80 successor.
