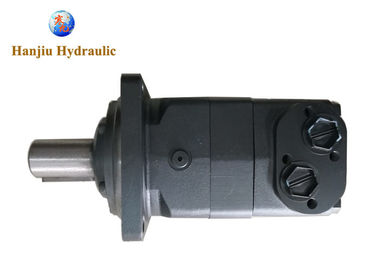

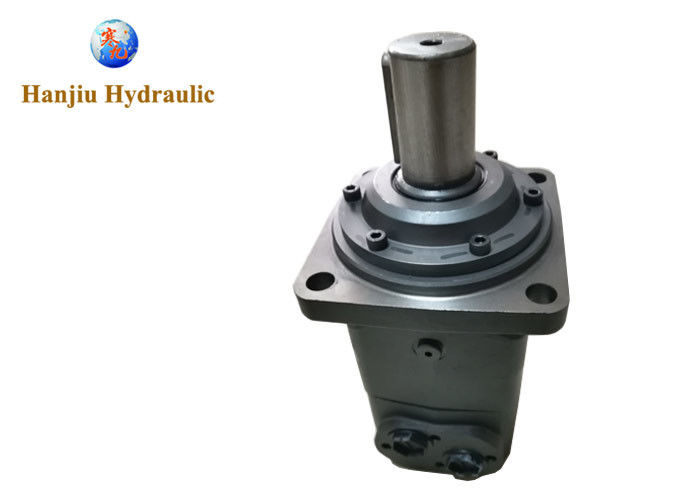

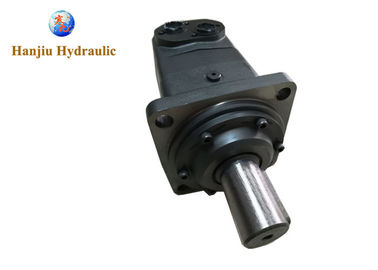

Heavy Hydraulic Wheel Motor OMV630 151B3309 For Conveyor Powerscreen Machines

Heavy Hydraulic Wheel Motor OMV630 151B3309 For Conveyor Powerscreen Machines
Heavy Hydraulic Wheel Motor OMV630 151B3309 For Conveyor Powerscreen Machines Heavy Hydraulic Wheel Motor OMV630 151B3309 For Conveyor Powerscreen Machines Heavy Hydraulic Wheel Motor OMV630 151B3309 For Conveyor Powerscreen Machines

Large Image :  Heavy Hydraulic Wheel Motor OMV630 151B3309 For Conveyor Powerscreen Machines

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: BMV MOTOR
Payment & Shipping Terms:
Minimum Order Quantity: 10pieces
Price: Negotiable
Packaging Details: 2PCS IN ONE CARTON,800PCS IN 20'FCL
Delivery Time: 25-30DAYS
Payment Terms: T/T, D/P, D/A, L/C
Supply Ability: 300000PCS PER YEAR
Detailed Product Description
Features: Match /M+S/Eaton/Char_lynn Material: Cast Iron /Steel
Application: Construction Machines, Mine Machines Displacement: 630cc
Max.speed(rpm): Cont.320rpm/int.380rpm Max.torque(N.m): Cont.1660N.m/int.1940N.m
Max.pressure Drop: Cont.18mpa/int.21Mpa Oil Temperature: Normal-35℃-80℃
Viscosity: 42-74mm2/s
High Light:

hydraulic wheel drive motors

,

hydraulic track motor



hydraulic products heavy motor OMV630 151B3309 for crusher screener equiepment conveyor powerscreen machines



This heavy hydraulic motor widely unsed for Screeners/Crushers/wheel conveyors/Mobile screens



Hanjiu is a hydraulic components manufacture, we are offering hydraulic motors, gear pumps,directional valves and more.We produce and supply only top quality, defect free hydraulic components that you can rely on.

the reason why more and more customers choose HANJIU is because it has obvious advantages over other brands in terms of delivery, service, quality and more margin.



We are a manufacturer from China specialize in hydraulic motor which is very good quality and much more excellent price



CHARACTERISTIC FEATURES:

  • Constant operating torque over a wide speed range
  • Smooth running over the entire speed range
  • High starting torque
  • High efficiency
  • High return pressure without the use of drain line (High pressure shaft seal)
  • Long life under extreme operating conditions
  • High radial and axial bearing capacity
  • Robust and compact design
  • Suitable for a wide varie



Main Specification:



Type BMV 315 BMV 400 BMV 500 BMV 630 BMV 800 BMV 1000
Geometric displacement (cm3 /rev.) 333 419 518 666 801 990
Max. speed (rpm) cont. 510 500 400 320 250 200
int. 630 600 480 380 300 240
Max. torque (N·m) cont. 920 1180 1460 1660 1880 2015
int. 1110 1410 1760 1940 2110 2280
peak 1290 1640 2050 2210 2470 2400
Max. output (kW) cont. 38 47 47 40 33 28.6
int. 46 56 56 56 44 40
Max. pressure drop (MPa) cont. 20 20 20 18 16 14
int. 24 24 24 21 18 16
peak 28 28 28 24 21 18
Max. flow (L/min) cont. 160 200 200 200 200 200
int. 200 240 240 240 240 240
Weight (kg) 31.8 32.6 33.5 34.9 36.5 38.6



Heavy Hydraulic Wheel Motor OMV630 151B3309 For Conveyor Powerscreen Machines 0

Heavy Hydraulic Wheel Motor OMV630 151B3309 For Conveyor Powerscreen Machines 1





Heavy Hydraulic Wheel Motor OMV630 151B3309 For Conveyor Powerscreen Machines 2

Heavy Hydraulic Wheel Motor OMV630 151B3309 For Conveyor Powerscreen Machines 3

APPLICATIONS:

  • Mobile equipment
  • Snow Removal, mowing
  • Spayer, trencher
  • Wood products
  • Material Handling Equipment
  • Oil & Gas
  • Forestry Equipment
  • Mining

Hanjiu is specializes in designing and producing any type of motor and steering gear required by our customers, from large to small, from low to high displacement. And can replace , Eaton, M + S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery, military engineering and other fields.
My factory takes honesty first and quality first as its tenet. From the employees' posts to the raw materials, to the factory, from parts processing and assembly advice to product leaving, there is a relatively complete product quality system. And passed CE certification. Our factory is committed to establishing an internationally renowned brand and looks forward to long-term cooperation with more demanders of hydraulic products.





we are willing to be your new supplier, because our products have lower price and good performance,will saving you more extra cost,the best after sale service will less complaint from your consumers,also stable delivery will make you have enough stock.



Heavy Hydraulic Wheel Motor OMV630 151B3309 For Conveyor Powerscreen Machines 4
