Home ProductsLow Speed High Torque Hydraulic Motor

MR / OMR Hydraulic Motor , High Torque Low RPM Hydraulic Motor For Seeder

MR / OMR Hydraulic Motor , High Torque Low RPM Hydraulic Motor For Seeder

    • MR / OMR Hydraulic Motor , High Torque Low RPM Hydraulic Motor For Seeder
    • MR / OMR Hydraulic Motor , High Torque Low RPM Hydraulic Motor For Seeder
    • MR / OMR Hydraulic Motor , High Torque Low RPM Hydraulic Motor For Seeder
    • MR / OMR Hydraulic Motor , High Torque Low RPM Hydraulic Motor For Seeder
    • MR / OMR Hydraulic Motor , High Torque Low RPM Hydraulic Motor For Seeder
  • MR / OMR Hydraulic Motor , High Torque Low RPM Hydraulic Motor For Seeder

    Product Details:

    Place of Origin: CHINA
    Brand Name: HANJIU
    Certification: CE
    Model Number: BMR

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 Sets
    Price: Negotiation
    Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
    Delivery Time: 10-15 work days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 sets per year
    Contact Now
    Detailed Product Description
    Features: Same As Danfoss OMR/Eaton-charlynn S,T SERIES/M+S MR Products Name: Orbital Hydraulic Motor
    Model No.: BMR Displacement: 50cc, 80cc, 100cc, 125cc, 160cc, 200cc, 250cc, 315cc, 395cc
    Warranty: 12-18 Months Application: Heavy Equipments, Construction Machines, Agricutural Machines And Industrial Machines Etc.

    Low Speed High Torque Hydraulic Motor BMR / OMR / MR For Seeder , Mower , Sweepers


    Introduction:

    BMR series motor adapt the advanced Gerolor gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure , provide reliable and smooth operation, high efficiency and long life.

    Characteristic Features: Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.

    1. Output Shaft:

    A:    Shaft Ø25, Parallel Key 8x7x32;
    B:    Shaft Ø32, Parallel Key 10x8x45;
    C:    Shaft Ø25.4, Parallel Key 6.35x6.35x31.75;
    E:    Shaft Ø25.4, Splined tooth SAE 6B;
    R:    Short shaft Ø25.4, Parallel key 6.35x6.35x31.75;
    F:    Shaft Ø31.75, Splined tooth 14-DP12/24;
    FD:  Long shaft Ø31.75, Splined tooth 14-DP12/24;
    G:    Shaft Ø31.75, Parallel Key 7.96x7.96x31.75;
    T:    Cone-Shaft Ø28.56, Parallel Key B5x5x14.

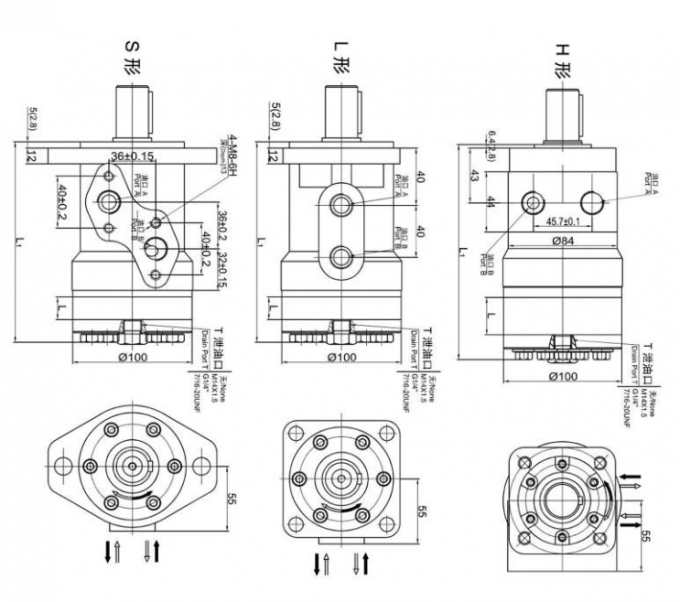

    2. Flange:

    2      2-Ø13.5 Rhomb-flange, Pilot Ø82.5×8;
    4      4-Ø13.5 Rhomb-flange, Pilot Ø82.5×8;
    H4    4-3/8-16 Square-flange, Pilot Ø44.4×2.8;
    H5    4-M10 Square-flange, Pilot Ø44.4×2.8.

    3. Port and Drain Port:

    D:     G1/2 Manifold Mount 4-M8, G1/4;
    M:     M22×1.5 Manifold Mount 4-M8, M14×1.5;
    S:     7/8-14 O-ring manifold 4-5/16-18UNC, 7/16-20UNF;
    P:     1/2-14 NPTF Manifold 4-5/16-18UNC,7/16-20UNF;
    R:     PT(Rc)1/2 Manifold 4-M8, PT(Rc)1/4.

    4. Paint: No Paint, Blue, Black, Silver Grey

    Specifications:


    Technical data for BMR Hydraulic Orbital Motors
    TypeBMR
    BMRS
    36
    BMR
    BMRS
    50
    BMR
    BMRS
    80
    BMR
    BMRS
    100
    BMR
    BMRS
    125
    BMR
    BMRS
    160
    BMR
    BMRS
    200
    BMR
    BMRS
    250
    BMR
    BMRS
    315
    BMR
    BMRS
    375
    Geometric displacement (cm3 /rev.)3651.781.5102127.2157.2194.5253.3317.5381.4
    Max. speed (rpm)cont.1085960750600475378310240190155
    int.12201150940750600475385300240190
    Max. torque (N·m)cont.72100195240300360360390390365
    int.83126220280340430440490535495
    peak105165270320370460560640650680
    Max. output (kW)cont.8.59.512.51312.512.510765
    int.9.811.2151514.514139.598
    Max. pressure drop (MPa)cont.141417.517.517.516.5131197
    int.16.517.52020202017.5151310
    peak22.522.522.522.522.522.522.52017.515
    Max. flow (L/min)cont.40506060606060606060
    int.45607575757575757575
    Weight (kg)6.56.76.977.37.688.599.5


     MR / OMR Hydraulic Motor , High Torque Low RPM Hydraulic Motor For Seeder
    Applications:

    Agricutural Machines: Various Combine Harvesters, Seeders, Rotary Tillers, Lawn Mowers, Sprayers, Feed Mixers, Ground Boring Machines.

    Fisheries use: Netting Machine

    Construction machines:  Rollers, Cement Mixers, Sweepers.

    Industrial machines:Winding Machines, Textile Machines, Printing Presses, Business Washing Machines.
