Cycloid Structure Low RPM Hydraulic Motor BMP / OMP / MP 25mm Shaft For Light Industry

Cycloid Structure Low RPM Hydraulic Motor BMP / OMP / MP 25mm Shaft For Light Industry
Cycloid Structure Low RPM Hydraulic Motor BMP / OMP / MP 25mm Shaft For Light Industry Cycloid Structure Low RPM Hydraulic Motor BMP / OMP / MP 25mm Shaft For Light Industry

Large Image :  Cycloid Structure Low RPM Hydraulic Motor BMP / OMP / MP 25mm Shaft For Light Industry

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: BMP
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: Carton Packing, and finally with pallet or wooden box
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100,000 Pieces per year
Detailed Product Description
Product Name: Cycloid Hydraulic Motor Model No.: BMP
Brand: HANJIU Power: Hydraulic Oil
Structure Style: Cycloid Motor Shaft: Straight, Splined And Tapered
High Light:

hydraulic rotation motor

,

hydraulic pump motor

Low RPM Hydraulic Motor BMP/OMP/MP 25mm Shaft For Hydraulic Equipment Service





Introduction:



Hanjiu Hydraulic, as a professional manufacturer of hydraulic products, mainly produce and export hydraulic orbital motors, gear motor and steering units. We service the walking, steering, power transmission and lifting systems. From big to small, our motors displacement from 50ml/r to 1000ml/r. All interchangeable with , Char lynn, M+S series.





Features:



1. Shaft groove distributes flow, simple and compact structure, high accuracy of flow distributing


2. Stator-rotor of toothed shape, high mechanical efficiency, longer working lifetime under high pressure


3. Touching-ball bearing of coupled-angle, bear higher loading in both radial and axial directions, small friction force, high mechanical efficiency





Main Specifications:



Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
Type BMP
BMPH
BMPW
36
BMP
BMPH
BMPW
50
BMP
BMPH
BMPW
80
BMP
BMPH
BMPW
100
BMP
BMPH
BMPW
125
BMP
BMPH
BMPW
160
BMP
BMPH
BMPW
200
BMP
BMPH
BMPW
250
BMP
BMPH
BMPW
315
BMP
BMPH
BMPW
400
BMP
BMPH
BMPW
500
Geometric displacement (cm3 /rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120
int. 1650 1450 960 770 615 475 385 310 240 190 150
Max. torque (N·m) cont. 55 100 146 182 236 302 360 380 375 360 385
int. 76 128 186 227 290 370 440 460 555 525 560
peak 96 148 218 264 360 434 540 550 650 680 680
Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 5
int. 11.5 12 12 13 12 12 12 10.5 8.5 7 6
Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 11 9 7 6
int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 14 14 10.5 9
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 16 14 12
Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
int. 60 75 75 75 75 75 75 75 75 75 75
Weight (kg) 5.6 5.6 5.7 5.9 6 6.2 6.4 7 6.9 7.4 8



Technical data for BMP with 31.75 and 32 shaftt:

Type BMP
BMPH
36
BMP
BMPH
50
BMP
BMPH
80
BMP
BMPH
100
BMP
BMPH
125
BMP
BMPH
160
BMP
BMPH
200
BMP
BMPH
250
BMP
BMPH
315
BMP
BMPH
400
BMP
BMPH
500

Geometric displacement

(cm3 /rev.)

36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120
int. 1650 1450 960 770 615 475 385 310 240 190 150
Max. torque (N·m) cont. 55 100 146 182 236 302 360 460 475 490 430
int. 76 128 186 227 290 370 440 570 555 580 560
peak 96 148 218 264 360 434 540 670 840 840 780
Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 6
int. 11.5 12 12 13 12 12 12 10.5 8.5 7 7
Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 14 12 9.5 7
int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5 14 11.5 9
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 13
Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
int. 60 75 75 75 75 75 75 75 75 75 75
Weight (kg) 5.6 6 5.7 5.9 6 6.2 6.4 7 6.9 7.4 8
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

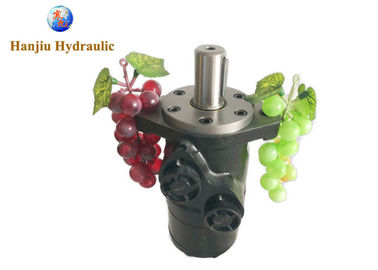

Cycloid Structure Low RPM Hydraulic Motor BMP / OMP / MP 25mm Shaft For Light Industry 0

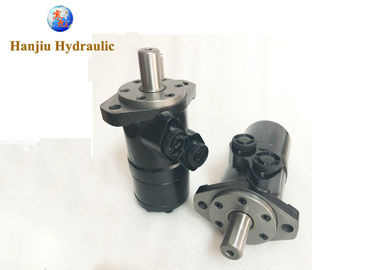

Cycloid Structure Low RPM Hydraulic Motor BMP / OMP / MP 25mm Shaft For Light Industry 1



Applications:



BMP hydraulic motors are widely applied in Agriculture machinery and Light Industry.

1. Agriculture machinery: all combine harvesters, seeders, rotary tiller, mower, sprayer, feed mixers, ground drilling machine.

2. Light industry: winding machines, textile machines, printing presses, operating with a washing machine.



HANJIU M+S EATON ROSS WHITE PARKER SAM BOSCH
HYDRAULIC HYDRAULIC CHAR LYNN   TRW CROSS   BREVINI REXROTH

BMM MM   OMM         MGX
  MLHK J SERIES   - - - BGM
BMP/BM1 MP   OMP MF WP TC BG MGP, GMP
            TE
  HP H SERIES DH MG RS TB
BMR/BM2 MR   OMR MB WR   BR MGR, GMR
  HR S,T SERIES DS   RE TF
  MLHRW, RW W SERIES OMEW
BMH/BM4 MH   OMH
  MLHH     ME
  HW, HWF       RE TG
BMS/BM5 MS, MSY   OMS     TG   MGS, GMS
              HPR
  MLHS 2000 SERIES   ME RE
BMT/BM6 MT   OMT         MGT, GMT
  MLHT 6000 SERIES   MJ     HT
  MTM   TMT
BMV MV   OMV         MGV, GMV
  MLHV 10000 SERIES





Cycloid Structure Low RPM Hydraulic Motor BMP / OMP / MP 25mm Shaft For Light Industry 2
