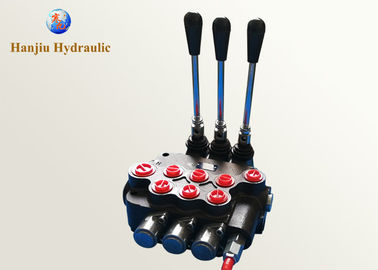

P40 3 Spool Directional Control Valve / Hydraulic Directional Valve

P40 3 Spool Directional Control Valve / Hydraulic Directional Valve

Product Details:

Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: P40

Payment & Shipping Terms:

Minimum Order Quantity: 30 Sets
Price: 45USD/PC
Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T
Supply Ability: 1000000 sets per year
Contact Now
Detailed Product Description
Model No.: 3P40 Warranty: 12-18 Months
Spool: 1, 2, 3, 4, 5, 6, ... Flow: 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...

P40 Hydraulic Direction Control Valve 3 Spool

P40 HYDRAULIC CONTROL VALVES AVAILABLE IN 1-7 SPOOL BANKS WITH ADJUSTABLE RELIEF VALVE AND MACHINED FOR CARRYOVER PLUG. ALL STANDARD CONTROL VALVES COME WITH DOUBLE ACTING (A) SPOOLS AND SPRING TO CENTER LEVER CONTROL.


Construction

Р40 is a mono-bloc distributor. Its body is made of cast iron EN-GJL300. Plungers are made of carburized steel with hard chrome plating.

Mounting

The distributor is fixed with two bolts M8


SPECIFICATION

- PORT SIZES = P,T+N = 1/2" BSP - A/B = 3/8" BSP
- CAST IRON BODY - EN-GJL300
- MAX WORKING PRESSURE - P = 250 BAR, T = 50 BAR, A/B = 300 BAR
- MAX FLOW RATE = 40 LPM
- OPERATING TEMPERATURE BETWEEN -40ºC TO +60ºC
- RELIEF VALVE SETTING = 180 BAR STANDARD (MAX = 250 BAR)
- SPOOL LEAKAGE AT 120 BAR = 15CM3 P/M

TO VIEW TECHNICAL DATA SHEET PLEASE VIEW THE PHOTO BELOW

Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 315 bar
Back pressure 50 bar
Nominal flow 40 l/min
Leakage(A,B-T) 15cm3/min at 120bar
Spool stroke 6 mm
Actuating force < 200 N
Modification/ Spools with 1 to 7




Functions and features

1. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption;
2. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.
3.Compact size, light and handy structure, small weight, simple operation and safety & reliability;
4. Work group number can be added according to demand, 7 spools at most.
5. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by customers.

P40 3 Spool Directional Control Valve / Hydraulic Directional Valve



Application:

This product is applicable to special vehicles like truck mounted crane, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.


P40 3 Spool Directional Control Valve / Hydraulic Directional Valve

Hanjiu: Hydraulic gear pump for any hydraulic system, our company uses high-end machine tools, excellence, the most humane service, manufacture and service the world, with good products and services to serve the world, welcome advice.
