High Performance 2 Spool Hydraulic Valve / Hydraulic Control Valve 50 Bar Back Pressure

High Performance 2 Spool Hydraulic Valve / Hydraulic Control Valve 50 Bar Back Pressure

Product Details:

Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: P80

Payment & Shipping Terms:

Minimum Order Quantity: 30 Sets
Price: 50USD/PC
Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T
Supply Ability: 1000000 sets per year
Contact Now
Detailed Product Description
Model No.: 2P80 Warranty: 12-18 Months
Spool: 1, 2, 3, 4, 5, 6, ... Flow: 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...

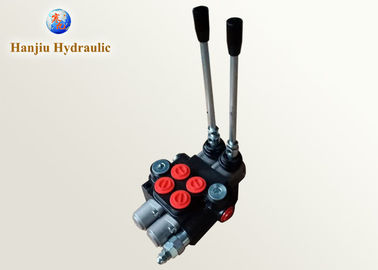

2 Spool P80 Direction Hand Control Valve

Р80 is a mono-bloc distributor. Its body is made of cast iron EN-GJL300. Plungers are made of carburized steel with hard chrome plating.

Mounting

The distributor is fixed with two bolts M8



Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 315 bar
Back pressure 50 bar
Nominal flow 80 l/min
Leakage(A,B-T) 15cm3/min at 120bar
Spool stroke +/-7 mm
Actuating force < 200 N
Modification/ Spools up to 8


High Performance 2 Spool Hydraulic Valve / Hydraulic Control Valve 50 Bar Back PressureHigh Performance 2 Spool Hydraulic Valve / Hydraulic Control Valve 50 Bar Back Pressure


Functions and features

1. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption;
2. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.
3.Compact size, light and handy structure, small weight, simple operation and safety & reliability;
4. Work group number can be added according to demand, 7 spools at most.
5. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by customers.



Application:

This product is applicable to special vehicles like truck mounted crane, wrecker, scrubbing machine and dynamic compactor

High Performance 2 Spool Hydraulic Valve / Hydraulic Control Valve 50 Bar Back Pressure

Hanjiu: Hydraulic gear pump for any hydraulic system, our company uses high-end machine tools, excellence, the most humane service, manufacture and service the world, with good products and services to serve the world, welcome advice.
