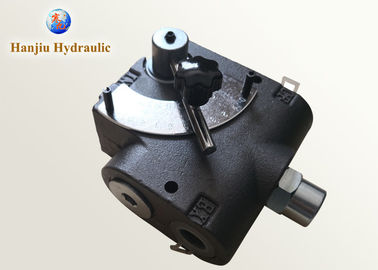

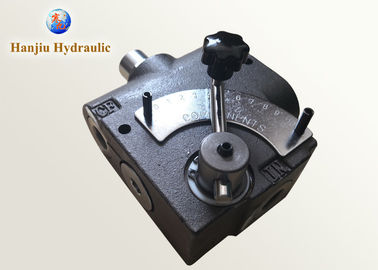

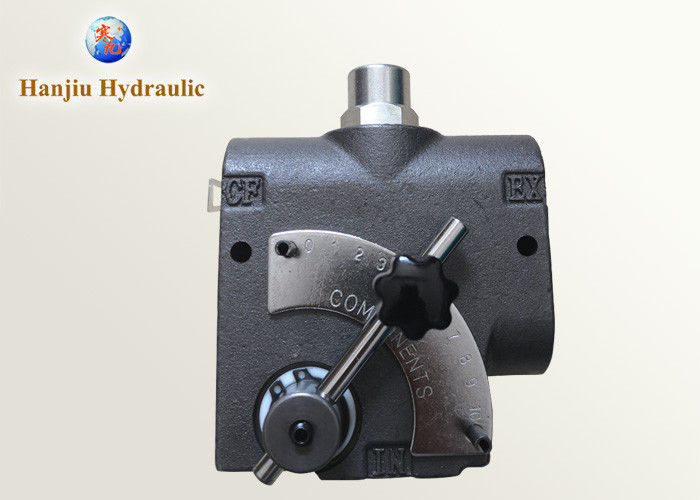

LKF60 Hydraulic Pressure Directional Control Valve 60L/Min 210 Bar Pressure

    • LKF60 Hydraulic Pressure Directional Control Valve 60L/Min 210 Bar Pressure
    • LKF60 Hydraulic Pressure Directional Control Valve 60L/Min 210 Bar Pressure
    • LKF60 Hydraulic Pressure Directional Control Valve 60L/Min 210 Bar Pressure
  • LKF60 Hydraulic Pressure Directional Control Valve 60L/Min 210 Bar Pressure

    Product Details:

    Place of Origin: CHINA
    Brand Name: HANJIU
    Certification: CE
    Model Number: LKF60

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: 50
    Packaging Details: Carton box
    Payment Terms: Western Union, T/T, L/C
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Model: Hydraulic Flow Valve Max Flow: 60L/Min
    Pressure: 210bar Port: 1/2"



    Hydraulic Pressure Adjustable Flow Control Valve 60L/min



    LKF model is a full range pressure compensating variable flow control.

    It is designed so that the orifice area varies as the lever is rotated.

    The outlet flow is smooth and constant regardless of the pressure on the control flow or excess flow ports.

    An adjustable ball spring relief valve allows for pressure compensated how up to the pressure setting on the relief valve.

    Relief valves are preset at 1500psi and filed adjustable from 750 to 3000psi.







    LKF60 Pressure Adjustable Flow Control Valve Details
    Oil Port: G1/2"
    Max Flow: 60L/min
    Pressure: 210bar







    1. Diamond honed spool bore provides consistent spool fit with low leakage
    2. Every FC is tested for shutoff, linearity and pressure compensation
    3. Standard 3-port allows for pressure compensated flow out of two ports
    4. Standard 416 stainless steel rotary lever spool to prevent the spool from locking up
    5. Standard SAE ORB compensator plugs to eliminate external leakage from the compensator bore
    6. External seals on rotary spool prevents contamination from locking up spool
    7. Optional top port allows the customer to plumb their pipe directly in line with the inlet
    8. Optional 2-port allows for pressure compensated flow out of one port
    9. Optional 316 stainless steel rotary spool provides highest corrosion resistance
    10. Optional free reverse flow allows fluid to move from the CF (control flow) and EX (excess flow) port to 11. the inlet. (single reverse flow is also available)
    12. Optional adjustable ball spring relief and high lift ball spring relief CF (control flow) port
    13. Heat treated free reverse check seat
    14. Adjustable ball spring relief (standard 1500 psi setting)
