Precision Hydraulic Flow Control Valve 80L/Min 160Bar 1/2 BSP For Truck Mounted Crane

Precision Hydraulic Flow Control Valve 80L/Min 160Bar 1/2 BSP For Truck Mounted Crane

    • Precision Hydraulic Flow Control Valve 80L/Min 160Bar 1/2 BSP For Truck Mounted Crane
    • Precision Hydraulic Flow Control Valve 80L/Min 160Bar 1/2 BSP For Truck Mounted Crane
    • Precision Hydraulic Flow Control Valve 80L/Min 160Bar 1/2 BSP For Truck Mounted Crane
    • Precision Hydraulic Flow Control Valve 80L/Min 160Bar 1/2 BSP For Truck Mounted Crane
  • Precision Hydraulic Flow Control Valve 80L/Min 160Bar 1/2 BSP For Truck Mounted Crane

    Product Details:

    Place of Origin: CHINA
    Brand Name: HANJIU
    Certification: CE
    Model Number: P80

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 Sets
    Price: 37 USD/PC
    Packaging Details: Inner carton / Outer carton / Pallet
    Delivery Time: 25 - 35 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1000000 sets per year
    Contact Now
    Detailed Product Description
    Products Name: Hydraulic Orbital Motor Model No.: 1P80
    Warranty: 12 Months Spool: 1
    Flow: 80 Liters/ Min Rated Pressure: 16MPa
    Spool Function: 'O' Position: 'T'
    P,T,N: 1/2' BSP A, B: 3/8' BSP

    Hydraulic Distributor Valve 1 of Section 80L/Min 160Bar 1/2 BSP





    Quick details:



    Ambient temperature -40C...+60C
    Viscosity 12 ...800 mm2/s
    Fluid temperature -15C...+80C
    Filtration 10 to NAS 1638
    Max operating pressure 315 bar
    Back pressure 50 bar
    Nominal flow 80 l/min
    Leakage(A,B-T) 15cm3/min at 120bar
    Spool stroke +/-7 mm
    Actuating force < 200 N
    Modification/ Spools up to 8



    Monoblock valve Flow Nom. Pressure Spool
    P40 40L/Min

    E 16 MPa

    F 20 MPa

    1
          2
          3
          4
          5
          6
    P80 80L/Min

    E 16 MPa

    F 20 MPa

    1
          2
          3
          4
          5
          6
    P120 120L/Min

    E 16 MPa

    F 20 MPa

    1
          2
          3
          4
          5
          6

    Description

    Manually or mechanically controlled hydraulic directional control valve 01Р80 is designed for distribution and control of work flow between generator (pump) and executive mechanisms (cylinder, hydro-motor, etc.). It is manufactured with 1 to 7 plungers, with parallel or serial action, with common or individual back valve for each plunger, with or without safety valve.

    Application:
    This product is applicable to special vehicles like truck mounted crane, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.



    Functions and features:

    1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;
    2. Work group number can be added according to demand, 7 spools at most.
    3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by customers;
    4. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.
    5. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.

    Construction

    Р80 is a mono-bloc distributor. Its body is made of cast iron EN-GJL300. Plungers are made of carburized steel with hard chrome plating.

    Mounting: The distributor is fixed with two bolts M8

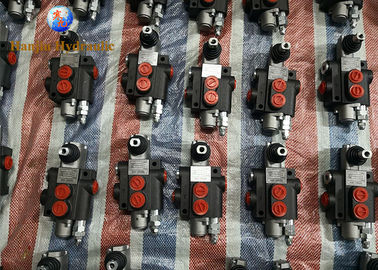

    Precision Hydraulic Flow Control Valve 80L/Min 160Bar 1/2 BSP For Truck Mounted Crane

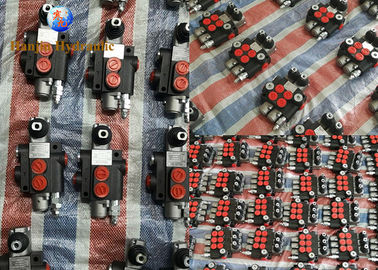

    Precision Hydraulic Flow Control Valve 80L/Min 160Bar 1/2 BSP For Truck Mounted Crane


    Hanjiu: Hydraulic gear pump for any hydraulic system, our company uses high-end machine tools, excellence, the most humane service, manufacture and service the world, with good products and services to serve the world, welcome advice.
