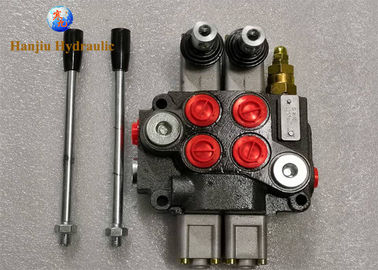

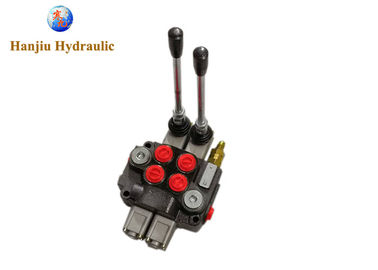

Durable Directional Control Valve 2 Levers Double Effect 1/2'' 3/8 " 80 Lt

Durable Directional Control Valve 2 Levers Double Effect 1/2'' 3/8 " 80 Lt

    • Durable Directional Control Valve 2 Levers Double Effect 1/2'' 3/8 " 80 Lt
    • Durable Directional Control Valve 2 Levers Double Effect 1/2'' 3/8 " 80 Lt
    • Durable Directional Control Valve 2 Levers Double Effect 1/2'' 3/8 " 80 Lt
  • Durable Directional Control Valve 2 Levers Double Effect 1/2'' 3/8 " 80 Lt

    Product Details:

    Place of Origin: CHINA
    Brand Name: HANJIU
    Certification: CE
    Model Number: 2P80-OT

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 Sets
    Price: 57 USD/PC
    Packaging Details: Inner carton / Outer carton / Pallet
    Delivery Time: 25 - 35 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1000000 sets per year
    Contact Now
    Detailed Product Description
    Products Name: HYDRAULIC DISTRIBUTOR Model No.: 2P80-OT
    Warranty: 12 Months Spool: 2
    Flow: 80 LT Rated Pressure: 160 Bar
    P,T,N: 1/2'' A,B: 3/8''
    Spool Function: 'O' Position: 'T'

    HYDRAULIC DISTRIBUTOR 2 LEVERS DOUBLE EFFECT 1/2'' 3/8 " 80 LT



    Description

    Manually or mechanically controlled hydraulic directional control valve 02Р80 is designed for distribution and control of work flow between generator (pump) and executive mechanisms (cylinder, hydro-motor, etc.). It is manufactured with 1 to 7 plungers, with parallel or serial action, with common or individual back valve for each plunger, with or without safety valve.





    Application


    This product is applicable to special vehicles like truck mounted crane, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.



    Construction

    Р80 is a mono-bloc distributor. Its body is made of cast iron EN-GJL300. Plungers are made of carburized steel with hard chrome plating.

    Mounting

    The distributor is fixed with two bolts M8



    Ambient temperature -40C...+60C
    Viscosity 12 ...800 mm2/s
    Fluid temperature -15C...+80C
    Filtration 10 to NAS 1638
    Max operating pressure 315 bar
    Back pressure 50 bar
    Nominal flow 80 l/min
    Leakage(A,B-T) 15cm3/min at 120bar
    Spool stroke +/-7 mm
    Actuating force < 200 N
    Modification/ Spools up to 8



    Monoblock valve Flow Nom. Pressure Spool
    P40 40L/Min

    E 16 MPa

    F 20 MPa

    1
          2
          3
          4
          5
          6
    P80 80L/Min

    E 16 MPa

    F 20 MPa

    1
          2
          3
          4
          5
          6
    P120 120L/Min

    E 16 MPa

    F 20 MPa

    1
          2
          3
          4
          5
          6





    Functions and features:
    1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;
    2. Work group number can be added according to demand, 7 spools at most.
    3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by customers;
    4. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.
    5. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.







    Durable Directional Control Valve 2 Levers Double Effect 1/2'' 3/8 " 80 Lt



    Durable Directional Control Valve 2 Levers Double Effect 1/2'' 3/8 " 80 Lt


    Hanjiu: Hydraulic gear pump for any hydraulic system, our company uses high-end machine tools, excellence, the most humane service, manufacture and service the world, with good products and services to serve the world, welcome advice.
