40 L / Min Loader Control Valve Drawer Latch For Dispenser 1 Year Warranty

40 L / Min Loader Control Valve Drawer Latch For Dispenser 1 Year Warranty

    • 40 L / Min Loader Control Valve Drawer Latch For Dispenser 1 Year Warranty
    • 40 L / Min Loader Control Valve Drawer Latch For Dispenser 1 Year Warranty
    • 40 L / Min Loader Control Valve Drawer Latch For Dispenser 1 Year Warranty
  • 40 L / Min Loader Control Valve Drawer Latch For Dispenser 1 Year Warranty

    Product Details:

    Place of Origin: CHINA
    Brand Name: HANJIU
    Certification: CE
    Model Number: 1P40-OT

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 Sets
    Price: 3 USD/PC
    Packaging Details: Inner carton / Outer carton / Pallet
    Delivery Time: 25 - 35 work days
    Payment Terms: L/C, Western Union, T/T
    Supply Ability: 1000000 sets per year
    Contact Now
    Detailed Product Description
    Products Name: Loader Control Valve Model No.: 1P40
    Warranty: Come With 1 Year Warranty Spool: 1
    Flow: 40 Liters/ Min Rated Pressure: 16 MPa
    Spool Function: 'O' Position: 'T'
    P,T,N: 1/2' BSP A, B: 3/8' BSP

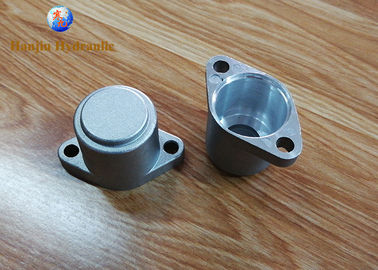

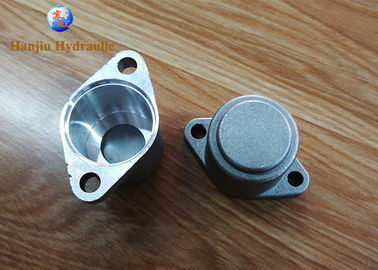

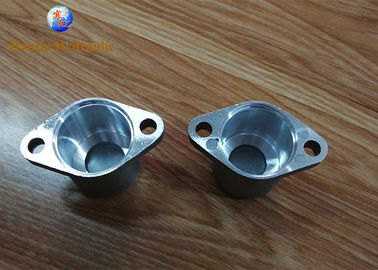

    Drawer latch for dispenser 40 l / min, Accessories of Hydraulic Monoblock



    40 liter dispenser mount dispenser lever

    this allows you to lock your dispenser lever in the pulled, pushed or two-way position. Simple and fast assembly.





    We do high-end Hydraulic Monoblock Valves, Hydraulic Distributors, also their accessories.

    We provide valves as below, also their accessories:



    Monoblock valve Flow Nom. Pressure Spool
    P40 40L/Min

    E 16 MPa

    F 20 MPa

    1
          2
          3
          4
          5
          6
    P80 80L/Min

    E 16 MPa

    F 20 MPa

    1
          2
          3
          4
          5
          6
    P120 120L/Min

    E 16 MPa

    F 20 MPa

    1
          2
          3
          4
          5
          6





    Description

    Manually or mechanically controlled hydraulic directional control valve is designed for distribution and control of work flow between generator (pump) and executive mechanisms (cylinder, hydro-motor, etc.). It is manufactured with 1 to 7 plungers, with parallel or serial action, with common or individual back valve for each plunger, with or without safety valve.





    Application
    This product is applicable to special vehicles like truck mounted crane, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.







    Ambient temperature -40C...+60C
    Viscosity 12 ...800 mm2/s
    Fluid temperature -15C...+80C
    Filtration 10 to NAS 1638
    Max operating pressure 315 bar
    Back pressure 50 bar
    Nominal flow 80 l/min & 40 l/min
    Leakage(A,B-T) 15cm3/min at 120bar
    Spool stroke +/-7 mm
    Actuating force < 200 N
    Modification/ Spools up to 8







    Function:

    1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;
    2. Work group number can be added according to demand, 7 spools at most.
    3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by customers;
    4. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.
    5. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.





    40 L / Min Loader Control Valve Drawer Latch For Dispenser 1 Year Warranty 40 L / Min Loader Control Valve Drawer Latch For Dispenser 1 Year Warranty40 L / Min Loader Control Valve Drawer Latch For Dispenser 1 Year Warranty40 L / Min Loader Control Valve Drawer Latch For Dispenser 1 Year Warranty40 L / Min Loader Control Valve Drawer Latch For Dispenser 1 Year Warranty
