Hydraulic Distributor Badestnost 2- Section Monoblock Valve 02P40 Replace

China Hydraulic Distributor Badestnost 2- Section Monoblock Valve 02P40 Replace supplier
Hydraulic Distributor Badestnost 2- Section Monoblock Valve 02P40 Replace supplier Hydraulic Distributor Badestnost 2- Section Monoblock Valve 02P40 Replace supplier Hydraulic Distributor Badestnost 2- Section Monoblock Valve 02P40 Replace supplier Hydraulic Distributor Badestnost 2- Section Monoblock Valve 02P40 Replace supplier

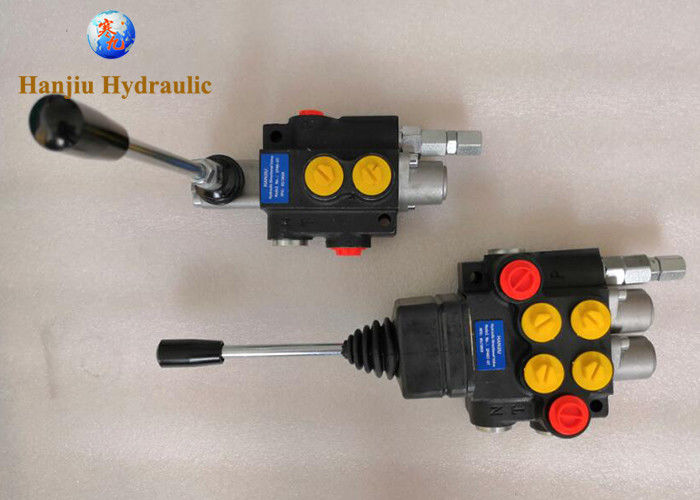

Large Image :  Hydraulic Distributor Badestnost 2- Section Monoblock Valve 02P40 Replace

Product Details:

Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: 2P40

Payment & Shipping Terms:

Minimum Order Quantity: 100 Sets
Price: Negotiable
Packaging Details: Inner carton / outer carton / pallet
Delivery Time: 25 - 35 work days
Payment Terms: L/C, T/T
Supply Ability: 1000000 sets per year
Contact Now
Detailed Product Description
Products Name: Hydraulic Orbital Motor Model No.: 2P40
Warranty: 12-18 Months Spool: 1, 2, 3, 4, 5, 6, ...
Flow: 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...



Hydraulic distributor Badestnost 2-section Monoblock Valve 02P40 Replace



For different spool & lever options please contact our sales team
P40 HYDRAULIC CONTROL VALVES AVAILABLE IN 1-7 SPOOL BANKS WITH ADJUSTABLE RELIEF VALVE AND MACHINED FOR CARRYOVER PLUG. ALL STANDARD CONTROL VALVES COME WITH DOUBLE ACTING (A) SPOOLS AND SPRING TO CENTER LEVER CONTROL.

Application:
This product is applicable to special vehicles like truck mounted crane, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.


Construction

Р40 is a mono-bloc distributor. Its body is made of cast iron EN-GJL300. Plungers are made of carburized steel with hard chrome plating.

Mounting

The distributor is fixed with two bolts M8


SPECIFICATION

- PORT SIZES = P,T+N = 1/2" BSP - A/B = 3/8" BSP
- CAST IRON BODY - EN-GJL300
- MAX WORKING PRESSURE - P = 250 BAR, T = 50 BAR, A/B = 300 BAR
- MAX FLOW RATE = 40 LPM
- OPERATING TEMPERATURE BETWEEN -40ºC TO +60ºC
- RELIEF VALVE SETTING = 180 BAR STANDARD (MAX = 250 BAR)
- SPOOL LEAKAGE AT 120 BAR = 15CM3 P/M

TO VIEW TECHNICAL DATA SHEET PLEASE VIEW THE PHOTO BELOW

Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 315 bar
Back pressure 50 bar
Nominal flow 40 l/min
Leakage(A,B-T) 15cm3/min at 120bar
Spool stroke 6 mm
Actuating force < 200 N
Modification/ Spools with 1 to 7







Monoblock valve Flow Nom. Pressure Spool
P40 40L/Min

E 16 MPa

F 20 MPa

1
      2
      3
      4
      5
      6
P80 80L/Min

E 16 MPa

F 20 MPa

1
      2
      3
      4
      5
      6
P120 120L/Min

E 16 MPa

F 20 MPa

1
      2
      3
      4
      5
      6

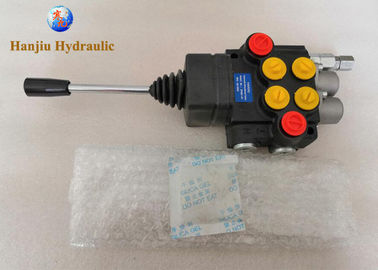

Hydraulic Distributor Badestnost 2- Section Monoblock Valve 02P40 Replace

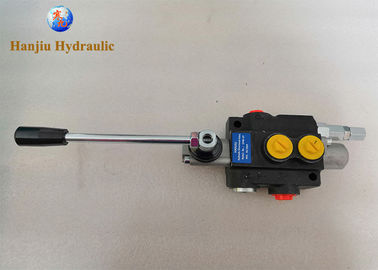

Hydraulic Distributor Badestnost 2- Section Monoblock Valve 02P40 Replace

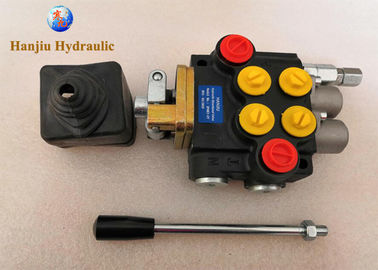

Hydraulic Distributor Badestnost 2- Section Monoblock Valve 02P40 ReplaceHydraulic Distributor Badestnost 2- Section Monoblock Valve 02P40 Replace

Hydraulic Distributor Badestnost 2- Section Monoblock Valve 02P40 Replace
