P80 Series Monoblock Directional Control Valves For Hydraulic Control

China P80 Series Monoblock Directional Control Valves For Hydraulic Control supplier
P80 Series Monoblock Directional Control Valves For Hydraulic Control supplier P80 Series Monoblock Directional Control Valves For Hydraulic Control supplier P80 Series Monoblock Directional Control Valves For Hydraulic Control supplier P80 Series Monoblock Directional Control Valves For Hydraulic Control supplier

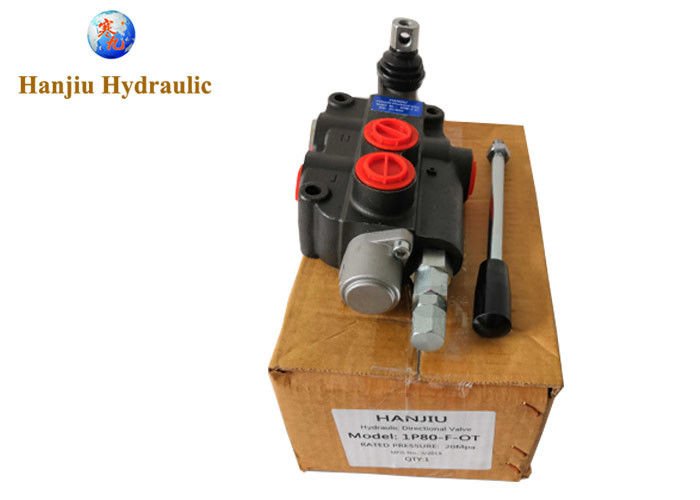

Large Image :  P80 Series Monoblock Directional Control Valves For Hydraulic Control

Product Details:

Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: P80

Payment & Shipping Terms:

Minimum Order Quantity: 30 units
Price: Negotiable
Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T
Supply Ability: 300000 sets per year
Contact Now
Detailed Product Description
Model No.: P80 Warranty: 12-18 Months
Spool: 1, 2, 3, 4, 5, 6, ... Flow: 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Function: O/Y/P/A

P80 Series Monoblock Directional Control Valves use for hydraulic control

Р80 is a mono-bloc distributor. Its body is made of cast iron EN-GJL300. Plungers are made of carburized steel with hard chrome plating.

Functions and features

1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;
2. Work group number can be added according to demand, 7 spools at most.
3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by customers;
4. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.
5. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.

Mounting

The distributor is fixed with two bolts M8



Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 315 bar
Back pressure 50 bar
Nominal flow 80 l/min
Leakage(A,B-T) 15cm3/min at 120bar
Spool stroke +/-7 mm
Actuating force < 200 N
Modification/ Spools up to 8

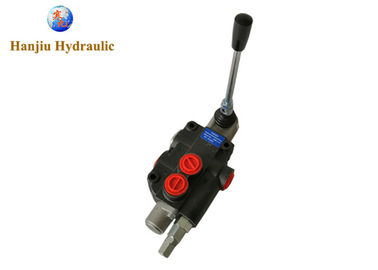

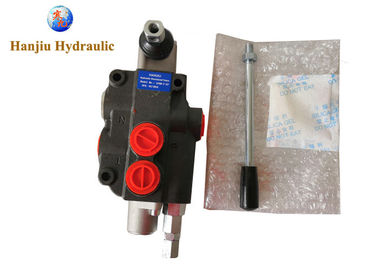

P80 Series Monoblock Directional Control Valves For Hydraulic ControlP80 Series Monoblock Directional Control Valves For Hydraulic Control





Application:

This product is applicable to special vehicles like truck mounted crane, wrecker, scrubbing machine and dynamic compactor

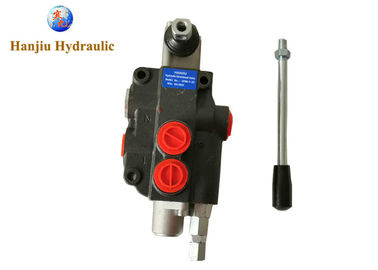

P80 Series Monoblock Directional Control Valves For Hydraulic Control

Hanjiu is a leading hydraulic component manufacture,we produce hydrauic motors,hydraulic steering units,

directional control valve,gear pumps and more.High quality,stable delivery,competitive price and good after sales service

is the crucial factor of our rapid growth.
