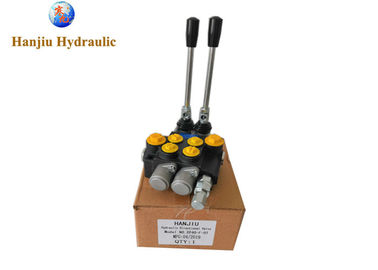

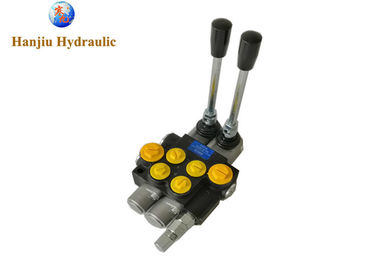

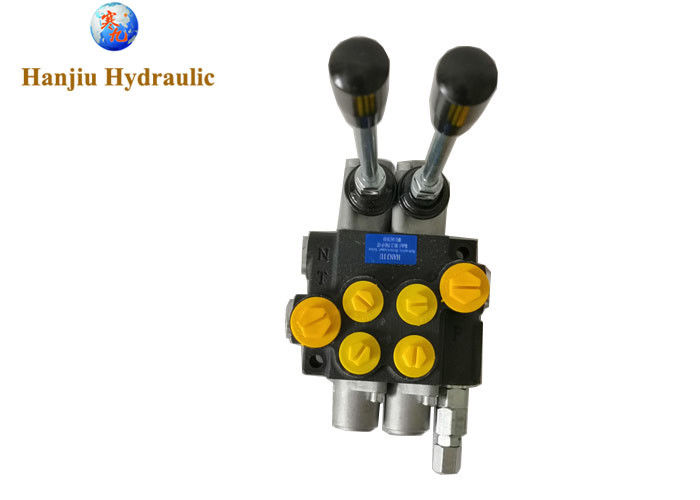

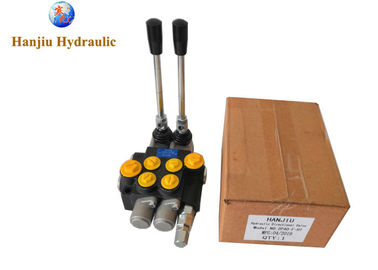

2 Levers 21 Gpm Directional Control Valve Continental Vs5m CE Approved

2 Levers 21 Gpm Directional Control Valve Continental Vs5m CE Approved

    • 2 Levers 21 Gpm Directional Control Valve Continental Vs5m CE Approved
    • 2 Levers 21 Gpm Directional Control Valve Continental Vs5m CE Approved
    • 2 Levers 21 Gpm Directional Control Valve Continental Vs5m CE Approved
    • 2 Levers 21 Gpm Directional Control Valve Continental Vs5m CE Approved
  • 2 Levers 21 Gpm Directional Control Valve Continental Vs5m CE Approved

    Product Details:

    Place of Origin: CHINA
    Brand Name: HANJIU
    Certification: CE
    Model Number: 2P40

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 PCS
    Price: 32USD/PC
    Packaging Details: Carton Packing
    Delivery Time: 10-15 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 300000 sets per year
    Contact Now
    Detailed Product Description
    Model: 2P40 Oil Port: G1/2",G3/4
    Spool: 1, 2, 3, 4, 5, 6, ... Flow: 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
    Pressure: 31.5MPa

    europ technology 2 levers 21 gpm control valve continental hydraulics directional valve vs5m



    P40 series valves with middle-high pressure monoblock construction is developed based on Europe technology

    • Inner check valve is to insure the hydraulic oil not to be returned
    • Inner relief valve is able to adjust the hydraulic system working pressure
    • Oil way:Parallel circuit, power beyond option
    • Control way: Manual control, pneumatic control, hydraulic and electric control
    • Valve construction :monoblock construction, 1--6 levers
    • Spool function: O,Y,P, A
    • Option: Hydraulic lock is available to be added on A and B port
    • Available manual, pneumatic control, electric and pneumatic control,hydraulic and electric control



     Spool:  2Spools
     Flow rate:   40 L / min
     Nom pressure:   20MPa
     Maximum pressure:   31.5MPa
     Standard thread:   G1/2"





    P40 Monoblock spool valve has been specifically designed for use in mobile hydraulic assplications.

    It is compact but has a flow capacity of 40lpm at 250 bar.
    With quality by design,high materials,is an economic alternative to currently available monoblocks.

    Compact monoblock construciton with up to 7 spools with a common load check valve or 3 and 4 spools with individual load check valves to comply with machine safety requiements.



    Application:


    Suited to mobile applications where space is limited and a cost effective valve is required with good flow characteristics. Used extensively in mobile,industrial and mechanical handing services.
    Manually or mechanically controlled hydraulic directional control valve Р40 is designed for distribution and control of work flow between generator (pump) and executive mechanisms (cylinder, hydro-motor, etc.)



    2 Levers 21 Gpm Directional Control Valve Continental Vs5m CE Approved2 Levers 21 Gpm Directional Control Valve Continental Vs5m CE Approved



    2 Levers 21 Gpm Directional Control Valve Continental Vs5m CE Approved





    2 Levers 21 Gpm Directional Control Valve Continental Vs5m CE Approved
