Hydraulic pump Gear pump JC20C12X186 used for Fiat MF CBT OF CBT-20

Hydraulic pump Gear pump JC20C12X186 used for Fiat MF CBT OF CBT-20

    • Hydraulic pump Gear pump JC20C12X186 used for Fiat MF CBT OF CBT-20
    • Hydraulic pump Gear pump JC20C12X186 used for Fiat MF CBT OF CBT-20
    • Hydraulic pump Gear pump JC20C12X186 used for Fiat MF CBT OF CBT-20
    • Hydraulic pump Gear pump JC20C12X186 used for Fiat MF CBT OF CBT-20
  • Hydraulic pump Gear pump JC20C12X186 used for Fiat MF CBT OF CBT-20

    Product Details:

    Place of Origin: CHINA
    Brand Name: HANJIU
    Certification: CE
    Model Number: CBT-E3, CBF, CBG-F3, GPC4, G5

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 Sets
    Price: Negotiation
    Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
    Delivery Time: 10-15 work days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 Sets Per Year
    Contact Now
    Detailed Product Description
    Product Name: Hydraulic Gear Pump Theory: Rotary Pump
    Pressure: High Pressure Displacement: 3~30ml/r
    Max.pressure: 15-20Mpa Shaft: Tang Claw Shaft,Tappered Key

    Hydraulic pump Gear pump JC20C12X186 used for Fiat MF CBT OF CBT-20





    Introduction and Features:

    1. Hanjiu pumps and motors are high volumetic efficiency and long life achieved by smart design and accurate control of machining tolerances
    2. Fine finished steel gears,Hi-resistant Extruded alluminum body, Hi-resistant Die cast alluminum cover(BAP2) or cast-iron cover(BHP2), Low-friction die casting alluminum bushes,and DU slide bearing,all these keep low pulsation,low noise and long life.
    3. Full option of shafts,flanges and ports as for European,German and America standards
    4. Nitrile seals as standard and viton seals available for high temperature application,high pressure shaft seals are also available.
    5. Motor and bi-direction pump available
    6. Available as multiple pump either of the same or different group
    7. We test 100% of the pumps and motors after assambling to ensure the high standard performance.
    8. Our team have worked in hydraulics for about 20 years. Our technical people are very skilled in producing gear pump.
    9. We have supplied to many world-famous company all over the world.

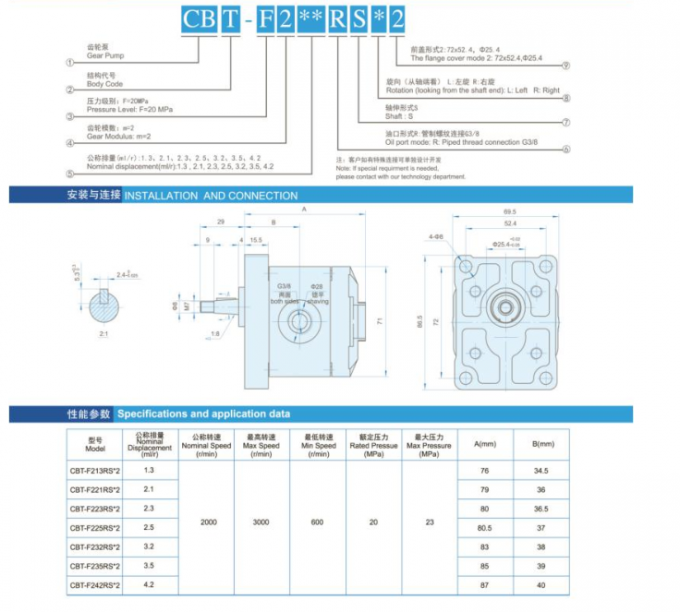

    Specifications:





    Type Displacement Max.pressure Max.speed Min.speed
    P1 P2 P3
      cm3/rev bar bar bar r/min r/min
    CBT 3 270 285 300 4000 800
    CBT 4 270 285 300 4000 600
    CBT 6 270 285 300 4000 600
    CBT 8 270 285 300 3500 500
    CBT 10 270 285 300 3000 500
    CBT 12 270 285 300 3000 500
    CBT 14 250 265 280 4000 500
    CBT 16 250 265 280 4000 500
    CBT 18 250 265 280 3600 400
    CBT 20 220 235 250 3200 400
    CBT 22 220 235 250 3000 400
    CBT 25 200 215 230 3000 400
    CBT 28 180 190 200 2500 400
    CBT 30 160 170 180 2500 400





      Hydraulic pump Gear pump JC20C12X186 used for Fiat MF CBT OF CBT-20


    Applications:



    Hydraulic system:36.9%;  Agriculture machine:24.4%;



    Constraction machine:19.6%;  Automobile:12.3%5.Others:4.1%.



    Hydraulic pump Gear pump JC20C12X186 used for Fiat MF CBT OF CBT-20
