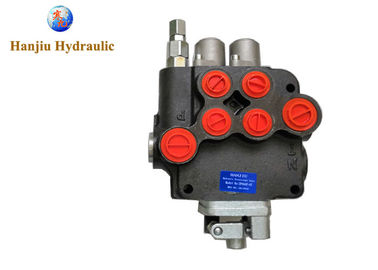

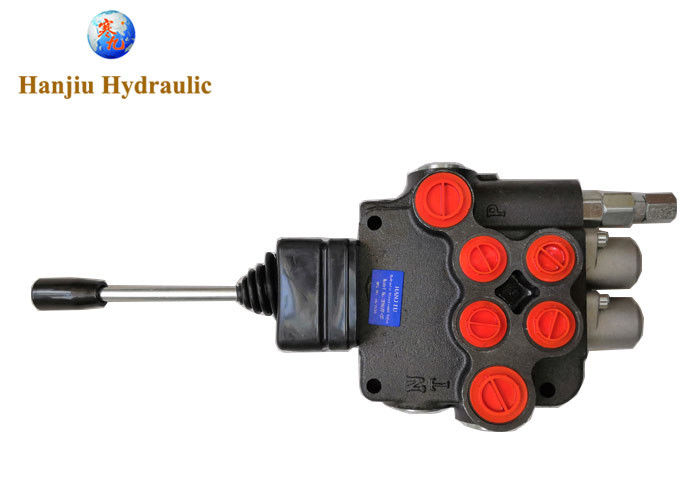

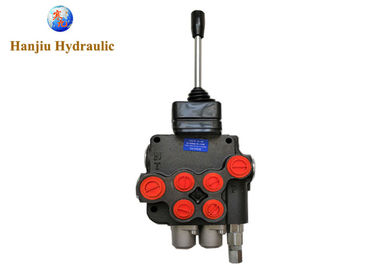

2P80 Factory Series Hydraulic Monoblock Directional Manual Control Flow Control Valve

2P80 Factory Series Hydraulic Monoblock Directional Manual Control Flow Control Valve

    • 2P80 Factory Series Hydraulic Monoblock Directional Manual Control Flow Control Valve
    • 2P80 Factory Series Hydraulic Monoblock Directional Manual Control Flow Control Valve
    • 2P80 Factory Series Hydraulic Monoblock Directional Manual Control Flow Control Valve
  • 2P80 Factory Series Hydraulic Monoblock Directional Manual Control Flow Control Valve

    Product Details:

    Place of Origin: CHINA
    Brand Name: HANJIU
    Certification: CE
    Model Number: P80

    Payment & Shipping Terms:

    Minimum Order Quantity: 30 units
    Price: Negotiation
    Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
    Delivery Time: 10-15 work days
    Payment Terms: L/C, T/T
    Supply Ability: 300000 sets per year
    Contact Now
    Detailed Product Description
    Model No.: 2P80 Warranty: 12-18 Months
    Spool: 1, 2, 3, 4, 5, 6, ... Flow: 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
    Function: O/Y/P/A

    2P80 factory made Series Hydraulic Monoblock Directional Manual Control

    Р80 is a mono-bloc distributor. Its body is made of cast iron EN-GJL300. Plungers are made of carburized steel with hard chrome plating.

    Functions and features

    1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;
    2. Work group number can be added according to demand, 7 spools at most.
    3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by customers;
    4. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.
    5. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.

    Mounting

    The distributor is fixed with two bolts M8



    Ambient temperature -40C...+60C
    Viscosity 12 ...800 mm2/s
    Fluid temperature -15C...+80C
    Filtration 10 to NAS 1638
    Max operating pressure 315 bar
    Back pressure 50 bar
    Nominal flow 80 l/min
    Leakage(A,B-T) 15cm3/min at 120bar
    Spool stroke +/-7 mm
    Actuating force < 200 N
    Modification/ Spools up to 8


    2P80 Factory Series Hydraulic Monoblock Directional Manual Control Flow Control Valve2P80 Factory Series Hydraulic Monoblock Directional Manual Control Flow Control Valve

    2P80 Factory Series Hydraulic Monoblock Directional Manual Control Flow Control Valve





    Application:

    This product is applicable to special vehicles like truck mounted crane, wrecker, scrubbing machine and dynamic compactor

    2P80 Factory Series Hydraulic Monoblock Directional Manual Control Flow Control Valve

    Hanjiu is a leading hydraulic component manufacture,we produce hydrauic motors,hydraulic steering units,

    directional control valve,gear pumps and more.High quality,stable delivery,competitive price and good after sales service

    is the crucial factor of our rapid growth.
