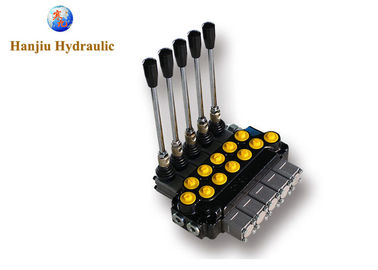

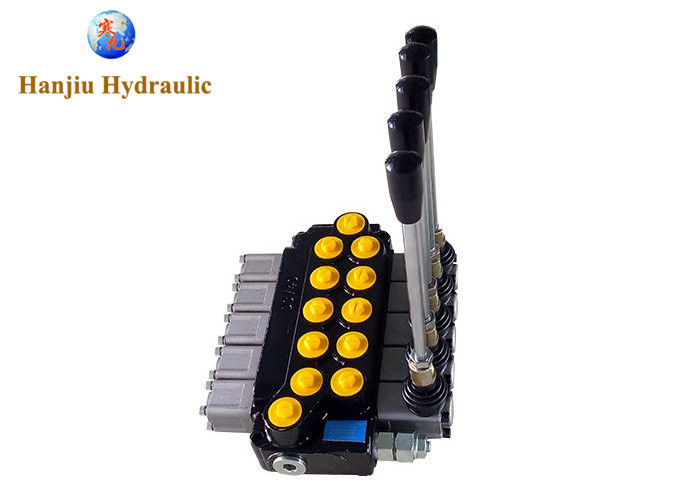

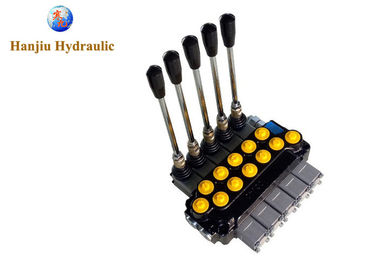

DCV40 High Pressure Manual Directional Control Valve Standard For Construction Machines

DCV40 High Pressure Manual Directional Control Valve Standard For Construction Machines

    • DCV40 High Pressure Manual Directional Control Valve Standard For Construction Machines
    • DCV40 High Pressure Manual Directional Control Valve Standard For Construction Machines
    • DCV40 High Pressure Manual Directional Control Valve Standard For Construction Machines
    • DCV40 High Pressure Manual Directional Control Valve Standard For Construction Machines
  • DCV40 High Pressure Manual Directional Control Valve Standard For Construction Machines

    Product Details:

    Place of Origin: CHINA
    Brand Name: HANJIU
    Certification: CE
    Model Number: DCV40

    Payment & Shipping Terms:

    Minimum Order Quantity: 30 Sets
    Price: Negotiation
    Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
    Delivery Time: 10-15 work days
    Payment Terms: L/C, T/T
    Supply Ability: 300000 sets per year
    Contact Now
    Detailed Product Description
    Model No.: DCV40-5 Warranty: 12-18 Months
    Spool: 1, 2, 3, 4, 5, 6, ... Flow: 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
    Spool Function: O/Y/A

    DCV40 Good quality high Pressure manual Directional Control Valve standard for construction machines





    DCV directional control valve have the features of high pressure, compact construct, stable over load valve
    performance and high universality.It is widely used on construction machine,sanitation vehicle, drilling machine, special purpose vehicle, etc.







    • Auxiliary valve:over load valve, anti-cavitation valve,combined valves, etc.
    • Spool function:A, O, Y, P, etc.
    • Control type:manual, pneumatic, electro-hydraulic, electro-pneumatic, etc.
    • Circuit type:parallel,series-parallel
    • C port(oil bridge) as hydraulic source for other parts
    • Structure:Sectional
    Norminal Flow
    40 L/min
    Max Flow
    45 L/min
    Max Pressure
    315 bar
    Control Type
    manual, pneumatic, hydraulic, electro-hydraulic
    Allowed back pressure
    ≤1 mpa
    Oil port size
    customizable

    DCV40 High Pressure Manual Directional Control Valve Standard For Construction Machines
    oil ports



    DCV40 High Pressure Manual Directional Control Valve Standard For Construction Machines



    spool functional



    DCV40 High Pressure Manual Directional Control Valve Standard For Construction Machines



    Hanjiu:  a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.
