DCV100-S Manual / Directional Control Valve Hydraulic And Pneumatic

DCV100-S Manual / Directional Control Valve Hydraulic And Pneumatic

    • DCV100-S Manual / Directional Control Valve Hydraulic And Pneumatic
    • DCV100-S Manual / Directional Control Valve Hydraulic And Pneumatic
    • DCV100-S Manual / Directional Control Valve Hydraulic And Pneumatic
    • DCV100-S Manual / Directional Control Valve Hydraulic And Pneumatic
  • DCV100-S Manual / Directional Control Valve Hydraulic And Pneumatic

    Product Details:

    Place of Origin: CHINA
    Brand Name: HANJIU
    Certification: CE
    Model Number: DCV100-S

    Payment & Shipping Terms:

    Minimum Order Quantity: 30 Sets
    Price: Negotiation
    Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
    Delivery Time: 10-15 work days
    Payment Terms: L/C, T/T
    Supply Ability: 300000 sets per year
    Contact Now
    Detailed Product Description
    Model No.: DCV100-S Warranty: 12-18 Months
    Spool: 1, 2, 3, 4, 5, 6, ... Flow: 100 Liters
    Pressure: 31.5Mpa

    DCV100-S Manual control directional control valve hydraulic and pneumatic





    Model number:



    DCV100-S





    Rated flow Max flow Max pressure Pilot control pressure Pneumatic control pressure Spool strike
    100L/min 120L/min 31.5MPa 10-13bar 5-10bar ±7 mm



    DCV directional control valve have the features of high pressure, compact construct, stable over load valve
    performance and high universality.It is widely used on construction machine,sanitation vehicle, drilling machine, special purpose vehicle, etc.



    • Auxiliary valve:over load valve, anti-cavitation valve,combined valves, etc.
    • Spool function:A, O, Y, P, etc.
    • Control type:manual, pneumatic, electro-hydraulic, electro-pneumatic, etc.
    • Circuit type:parallel,series-parallel
    • C port(oil bridge) as hydraulic source for other parts
    • Structure:Sectional




    DCV directional control valve have the features of below:

    1, high pressure,
    2, compact construct,
    3, stable over load valve
    4, performance and high universality.
    5, Auxiliary valve:over load valve, anti-cavitation valve, combined valves, etc.
    6, Spool function:A, O, Y, P, etc.
    7, Control type:manual, joystick, cable, pneumatic, electro-hydraulic, electro-pneumatic, etc.
    8, Circuit type:parallel,series-parallel
    9, Carry-over port as hydraulic source for other parts
    10, Structure:Monoblock, sectional

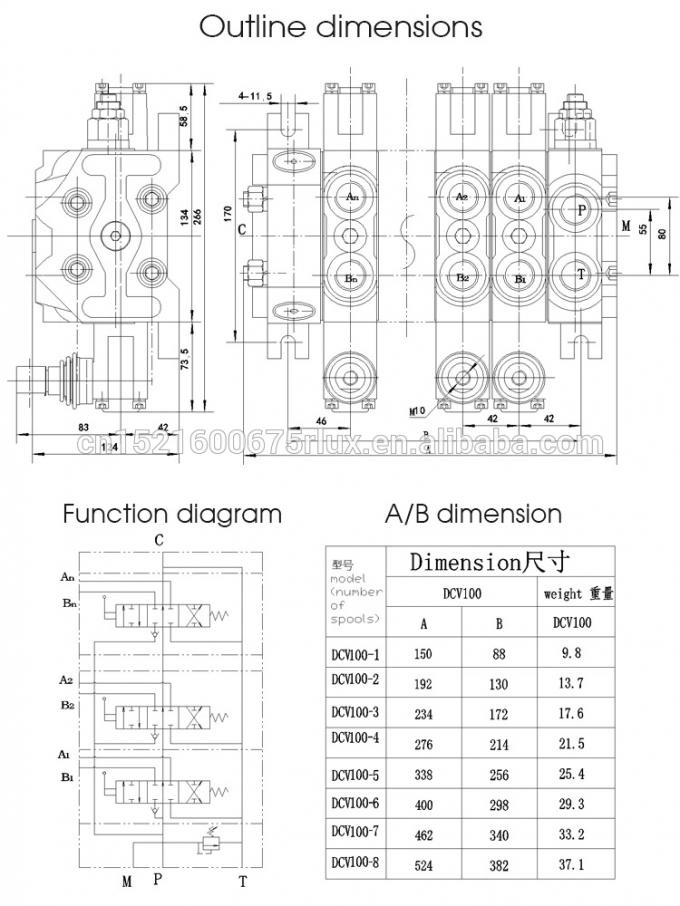

    DCV100-S Manual / Directional Control Valve Hydraulic And Pneumatic





    DCV XX / X - X X X - X X X X - X X X X ... -X - X X

    (1) Flow: 40, 45, 60, 100, 140, 200
    (2) Number of spools: 1-12
    (3) Inlet section type: see table (1)
    (4) Relief valve set pressure: 150-315 bar
    (5) Inlet port size: see table (2)
    (6) Spool type: see table (3)
    (7) Spool handle side arrangement: see table (4)
    (8) Spool cap side arrangement: see table (5)
    (9) Working section arrangement: see table (6)
    (10) Work port size: see table (2)
    (11) Outlet section type: see table (7)
    (12) Outlet port size: see table (2)









    DCV directional control valve is designed for high pressure hydraulic system such as drilling machine, sanitation, etc.







    Hanjiu is professional hydraulic components manufacture in China

    We have more distributor hydraulics (Directional control valve) for you

    we produce, manufacture, export, provide you with high quality, low price products

    our products are very competitive, no matter what control method

    (Control type: manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic, etc.)

    any flow (40 liters - 140 liters available)

    any size (1 spool to 12 spool available)

    Please contact us for the best offer.

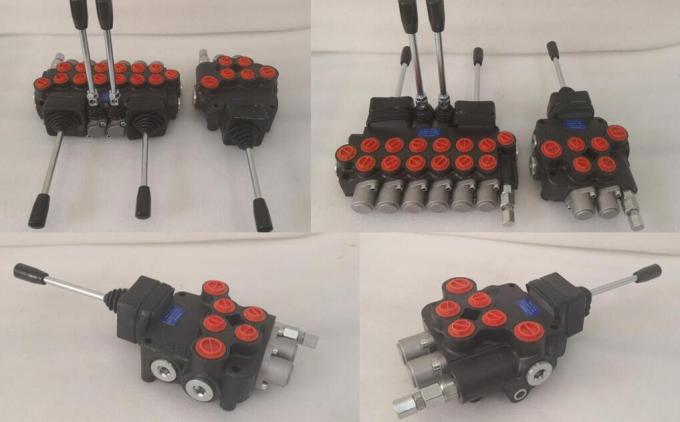

    DCV100-S Manual / Directional Control Valve Hydraulic And Pneumatic





    DCV100-S Manual / Directional Control Valve Hydraulic And Pneumatic





    DCV100-S Manual / Directional Control Valve Hydraulic And Pneumatic







    We are proud of being your solution partner in hydraulics.



    If you have any request, please let me know.

    ***If you request other items, please also contact us, we are in hydraulic industry, serve industrial, agri, mobile, marine market.

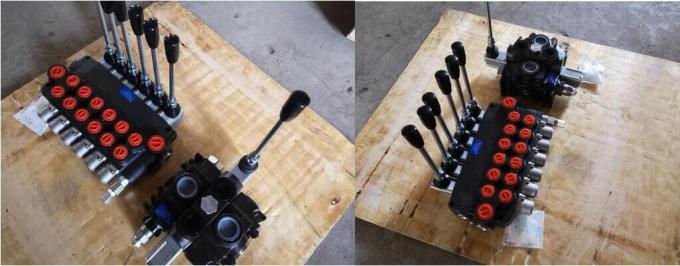

    DCV100-S Manual / Directional Control Valve Hydraulic And Pneumatic









    DCV100-S Manual / Directional Control Valve Hydraulic And Pneumatic





    DCV100-S Manual / Directional Control Valve Hydraulic And Pneumatic
