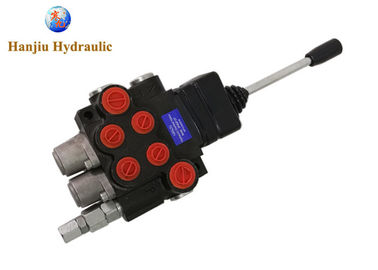

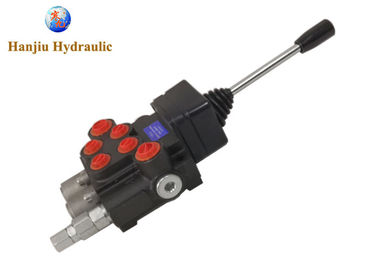

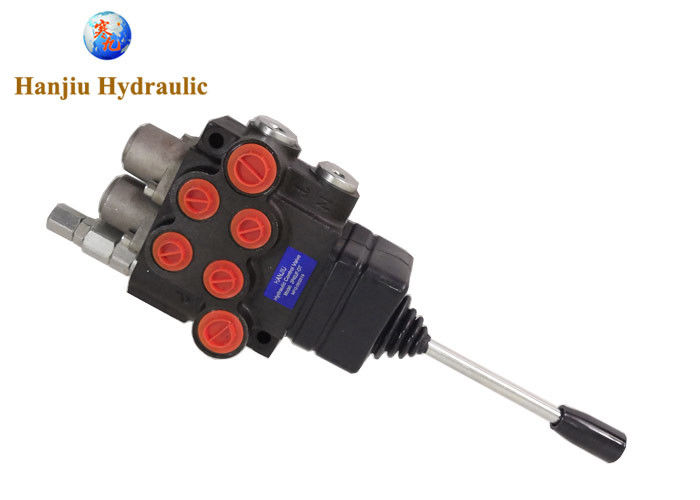

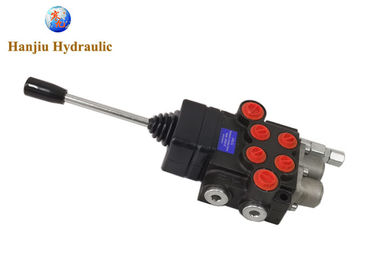

How To Install Joystick To Badestnost P40 Valve Medium Pressure Monoblock Control Valve

How To Install Joystick To Badestnost P40 Valve Medium Pressure Monoblock Control Valve

    • How To Install Joystick To Badestnost P40 Valve Medium Pressure Monoblock Control Valve
    • How To Install Joystick To Badestnost P40 Valve Medium Pressure Monoblock Control Valve
    • How To Install Joystick To Badestnost P40 Valve Medium Pressure Monoblock Control Valve
    • How To Install Joystick To Badestnost P40 Valve Medium Pressure Monoblock Control Valve
  • How To Install Joystick To Badestnost P40 Valve Medium Pressure Monoblock Control Valve

    Product Details:

    Place of Origin: CHINA
    Brand Name: HANJIU
    Certification: CE
    Model Number: 2P40

    Payment & Shipping Terms:

    Minimum Order Quantity: 30 Sets
    Price: $40
    Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
    Delivery Time: 10-15 work days
    Payment Terms: L/C, T/T
    Supply Ability: 300000 sets per year
    Contact Now
    Detailed Product Description
    Model No.: 2P40 Warranty: 12-18 Months
    Spool: 1, 2, 3, 4, 5, 6, ... Flow: 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
    Spool Function: O/Y/A



    how to install joystick to Badestnost P40 valve Medium Pressure monoblock control valve

    P40 series valves with middle-high pressure monoblock construction is developed based on Europe
    technology.



    Ambient temperature -40C...+60C
    Viscosity 12 ...800 mm2/s
    Fluid temperature -15C...+80C
    Filtration 10 to NAS 1638
    Max operating pressure 315 bar
    Back pressure 50 bar
    Nominal flow 40 l/min
    Leakage(A,B-T) 15cm3/min at 120bar
    Spool stroke 6 mm
    Actuating force < 200 N
    Modification/ Spools with 1 to 7




    Functions and features

    1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;
    2. Work group number can be added according to demand, 7 spools at most.
    3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by customers;
    4. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.
    5. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.



    How To Install Joystick To Badestnost P40 Valve Medium Pressure Monoblock Control ValveHow To Install Joystick To Badestnost P40 Valve Medium Pressure Monoblock Control Valve

    How To Install Joystick To Badestnost P40 Valve Medium Pressure Monoblock Control Valve

    Manually or mechanically controlled hydraulic directional control valve Р40 is designed for distribution and control of work flow between generator (pump) and executive mechanisms (cylinder, hydro-motor, etc.). It is manufactured with 1 to 7 plungers, with parallel or serial action, with common or individual back valve for each plunger, with or without safety valve.

    1, Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be
    returned.

    2, Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working
    pressure.

    3, Oil way: Parallel circuit, power beyond option

    4, Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.

    5, Valve construction: monoblock construction, 1-6 levers.

    6, Spool Function: O,Y, P,A.

    7, Option: Hydraulic lock is available to be added on A and B port.

    8, Available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric
    control and etc.







    How To Install Joystick To Badestnost P40 Valve Medium Pressure Monoblock Control Valve



    How To Install Joystick To Badestnost P40 Valve Medium Pressure Monoblock Control Valve

    Hanjiu:  a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.
