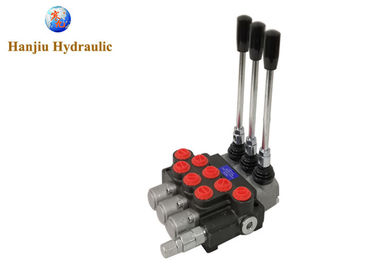

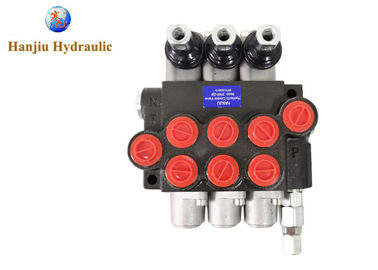

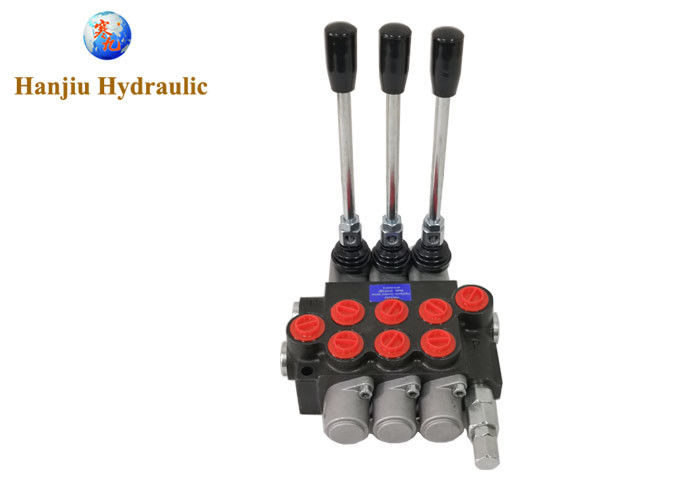

Medium Pressure Badestnost Compact Monoblock Directional Control Valve 3P40 Four Positions Double Acting

China Medium Pressure Badestnost Compact Monoblock Directional Control Valve 3P40 Four Positions Double Acting supplier
Medium Pressure Badestnost Compact Monoblock Directional Control Valve 3P40 Four Positions Double Acting supplier Medium Pressure Badestnost Compact Monoblock Directional Control Valve 3P40 Four Positions Double Acting supplier Medium Pressure Badestnost Compact Monoblock Directional Control Valve 3P40 Four Positions Double Acting supplier

Large Image :  Medium Pressure Badestnost Compact Monoblock Directional Control Valve 3P40 Four Positions Double Acting

Product Details:

Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: 3P40

Payment & Shipping Terms:

Minimum Order Quantity: 30 Sets
Price: Negotiable
Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T
Supply Ability: 300000 sets per year
Contact Now
Detailed Product Description
Model No.: 3P40 Warranty: 12-18 Months
Spool: 1, 2, 3, 4, 5, 6, ... Flow: 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Spool Function: O/Y/A

Medium Pressure Badestnost Compact Monoblock Directional Control Valve 3P40

four positions double acting

P40 series valves with middle-high pressure monoblock construction is developed based on Europe
technology.



Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 315 bar
Back pressure 50 bar
Nominal flow 40 l/min
Leakage(A,B-T) 15cm3/min at 120bar
Spool stroke 6 mm
Actuating force < 200 N
Modification/ Spools with 1 to 7




Functions and features

1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;


2. Work group number can be added according to demand, 7 spools at most.


3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by

customers;


4. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.


5. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.


Medium Pressure Badestnost Compact Monoblock Directional Control Valve 3P40 Four Positions Double Acting

Medium Pressure Badestnost Compact Monoblock Directional Control Valve 3P40 Four Positions Double Acting



Medium Pressure Badestnost Compact Monoblock Directional Control Valve 3P40 Four Positions Double Acting



Medium Pressure Badestnost Compact Monoblock Directional Control Valve 3P40 Four Positions Double Acting



Manually or mechanically controlled hydraulic directional control valve Р40 is designed for distribution and control of work flow between generator (pump) and executive mechanisms (cylinder, hydro-motor, etc.). It is manufactured with 1 to 7 plungers, with parallel or serial action, with common or individual back valve for each plunger, with or without safety valve.

1, Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be
returned.

2, Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working
pressure.

3, Oil way: Parallel circuit, power beyond option

4, Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.

5, Valve construction: monoblock construction, 1-6 levers.

6, Spool Function: O,Y, P,A.

7, Option: Hydraulic lock is available to be added on A and B port.

8, Available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric
control and etc.





Medium Pressure Badestnost Compact Monoblock Directional Control Valve 3P40 Four Positions Double Acting

Hanjiu:  a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.



Medium Pressure Badestnost Compact Monoblock Directional Control Valve 3P40 Four Positions Double Acting
