2 Spool Hydraulic Directional Control Valve 11gpm Double Acting Cylinder Spool

China 2 Spool Hydraulic Directional Control Valve 11gpm Double Acting Cylinder Spool supplier
2 Spool Hydraulic Directional Control Valve 11gpm Double Acting Cylinder Spool supplier 2 Spool Hydraulic Directional Control Valve 11gpm Double Acting Cylinder Spool supplier 2 Spool Hydraulic Directional Control Valve 11gpm Double Acting Cylinder Spool supplier 2 Spool Hydraulic Directional Control Valve 11gpm Double Acting Cylinder Spool supplier

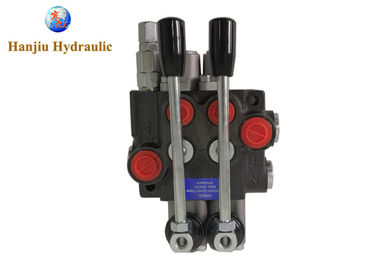

Large Image :  2 Spool Hydraulic Directional Control Valve 11gpm Double Acting Cylinder Spool

Product Details:

Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: P40

Payment & Shipping Terms:

Minimum Order Quantity: 30 Sets
Price: Negotiable
Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T
Supply Ability: 300000 sets per year
Contact Now
Detailed Product Description
Model No.: P40 Warranty: 12-18 Months
Spool: 1, 2, 3, 4, 5, 6, ... Flow: 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Spool Function: O/Y/A



2 spool hydraulic directional control valve 11gpm, double acting cylinder spool


P40 series valves with middle-high pressure monoblock construction is developed based on Europe
technology.



Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 315 bar
Back pressure 50 bar
Nominal flow 40 l/min
Leakage(A,B-T) 15cm3/min at 120bar
Spool stroke 6 mm
Actuating force < 200 N
Modification/ Spools with 1 to 7





Ports thread

BSP Thread Metric thread US standard UNF thread US standard NTP thread
code Thread size code Thread size code Thread size code Thread size
G04 G1/4 M16 M16X1.5 U10 5/8-12UNF N06 NPT3/8
G06 G3/8 M18 M18X1.5 U12 3/4-16UNF N08 NPT1/2
G08 G1/2 M20 M20X1.5 U14 7/8-14UNF N12 NPT3/4
G12 G3/4 M22 M22X1.5 U16 1-12UNF
    M27 M27X2


Functions and features

1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;


2. Work group number can be added according to demand, 7 spools at most.


3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by

customers;


4. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.


5. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.

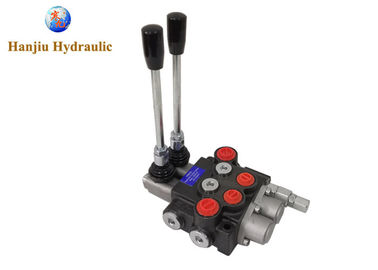

2 Spool Hydraulic Directional Control Valve 11gpm Double Acting Cylinder Spool2 Spool Hydraulic Directional Control Valve 11gpm Double Acting Cylinder Spool

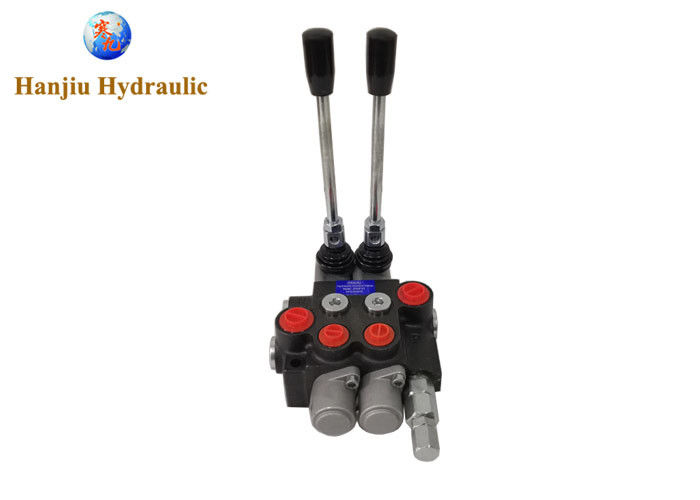

2 Spool Hydraulic Directional Control Valve 11gpm Double Acting Cylinder Spool

Manually or mechanically controlled hydraulic directional control valve Р40 is designed for distribution and control of work flow between generator (pump) and executive mechanisms (cylinder, hydro-motor, etc.). It is manufactured with 1 to 7 plungers, with parallel or serial action, with common or individual back valve for each plunger, with or without safety valve.

1, Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be
returned.

2, Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working
pressure.

3, Oil way: Parallel circuit, power beyond option

4, Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.

5, Valve construction: monoblock construction, 1-6 levers.

6, Spool Function: O,Y, P,A.

7, Option: Hydraulic lock is available to be added on A and B port.

8, Available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric
control and etc.

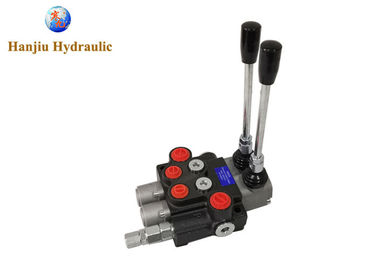

2 Spool Hydraulic Directional Control Valve 11gpm Double Acting Cylinder Spool

Hanjiu:  a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.
